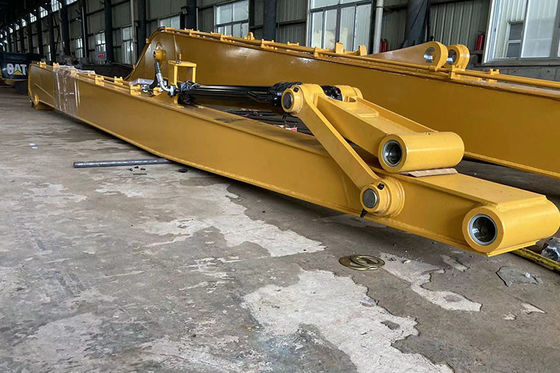

ZhongHe Customization High Quality CAT336 22meters Long Reach Boom And Arm 22m For Excavator
For more products:
Product Presentation of Excavator Boom
The long arm of the excavator is made of Q355B steel with good strength and rigidity. The shaft sleeve of the lengthened arm is generally made of 45 # steel, with 40Cr bushing inside, together with the lubricating effect of butter, it reduces the shear force produced when the shaft and the sleeve rotate frequently, thus, the service life of the shaft sleeve is increased. The scope of use is relatively large, but its main function is to improve the excavation radius, in the river clearing, land reclamation, subway entrance and exit excavation, pedestrian underground tunnel, highway protection wall repair, general residential conveying cement.
| Material Use
|| Q345B, Q550D, Also can customize to customer requirements
| Product Warranty Period
|| 6 months,9 months,1 Year
| Product Size
|| Most lengths can be 34M, According to customer requirements, Any excavator model
Advantages of Zhonghe Excavator Long Arm
1. Less maintenance
Using high quality materials, such as Q355B as default, Q690D optional, Niningbo connectors, seamless precision pipelines, graphite alloy copper sleeve, and strong but light bucket cylinder.
2. Strong and sturdy
Built-in reinforcing ribs. Professional welding skills towards the different bearing positions. Groove preparation(45° edge-mining) before welding.
3. Tolerance within 5-10um
Hole drilling tolerance is within 5-10um, ensure accuracy.
4. Reach deeper and higher
The max work range and the max digging height are larger as the angle of the boom and arm can reach 163 degrees.
5. High work efficiency and saving fuel
Lighter while taking into account the quality, not only ensures work efficiency but also saves fuel.
6. Metallurgical testing
Indepth analysis of steel samples to look for micro-structural defects and different phases present in duplex and super duplex as well as numerous other weld materials.
What Zhonghe Can Do
1. Applicable for all brand excavators.
2. Color, length, and material can do according to you.
3. Extra pipelines can be added to suit some extra applications.
4. Boom cylinder and stick cylinder can also be supplied if the customer wants.
STRONG PRODUCTION CAPACITY:
We can produce 50 sets of excavator booms per month.
Our annual output of various types of excavator boom arms can reach 600 sets.
1. Online support within 24 hours.
2. Appointment video technical support.
(Our engineers have focused on excavator boom and attachment for over 10 years)
3. Long excavator boom shall be two/three jointed pcs to make it fittable into a container to save shipping costs.
1 year for long reach boom, 180 days for cylinder and linkage, and 90 days for the bucket.
All parts you needed are included.
Long Reach Kits Are Fully Compatible with ZHONGHE Excavator Standard Buckets, and Cylinder.
Excavator long boom
Excavator long arm
Specification of Excavator Boom Arm
Maximum removal height(m)
|Maximum Digger Radius(C)(mm)
|Maximum Digger Depth(C)(mm)
|Maximum Unloading Height(E)(mm)
|Maximum Digger Height(F)(mm)
Kaiping Zhonghe Machinery Manufacturing Co., Ltd, is a manufacturing and trading combo that specializes in customizing different kinds of excavator boom arms and attachments We have more than 14000m' steel structure standardization workshop with a large number of high precision processing equipment as well as a strong and cohesive team. At present, there are more than 60 experienced technical staff, 30 welding workers with over 7 years of experience, 15 senior designers, and a high-tech R&D team.
Our annual output of various types of excavator boom arms can reach 600sets. We supply products with high quality and moderate prices, which sell well in more than 40 countries and areas.
We adhere to" Merit Quality, Sincerity Management, and Customer Satisfaction", and honestly greet customers from home and abroad to negotiate and cooperate with us.
FAQ of excavator long arm
Q1: Why not have boom and stick cylinders in the plan?
A1: First, the whole long arm is lengthening, but the boom just lengthening from its middle sleeve to its end, so the original boom and stick cylinder can be used. Second, using the original parts can save you cost.
Q2: How long is the boom arm can min excavator be configured with? Whether it is necessary to increase the counterweight?
A2. Generally speaking, the 30-40 excavator longest arm suggests to be 8 meters, can configure 0.1 cbm bucket, with no need an extra counterweight. 55 excavator's longest arm suggests to be 12 meters, can configure 0.1-0.15 cbm bucket, which need 0.5 ton extra counterweight. 60-80 excavator longest arm suggests to be 12 meters, can configure 0.15-0.25 cbm bucket, need 0.5-0.7 ton extra counterweight.
It is not recommended to extend boom arm to longes the t length as min excavator is easy to slosh.
Q3: How long will it take tall an excavator long reach boom?
It depends on the installer and machine size.
Usually disconnecting the original boom arm, stick cylinder, then pin the new one is okay.
Kindly remind, use to prepare several containers to fill the oil before disassembling.
