CAT 50-55ton Excavator Long Reach Boom Antirust 26m With 0.8 Cbm Bucket

Place of Origin China
Brand Name Zhonghe
Certification CE
Model Number 26 meters
Minimum Order Quantity 1
Price CNY 106200-118000/Unit EXW
Packaging Details Wooden case or bubble bag
Delivery Time 10-15 working days
Payment Terms T/T, discussion
Supply Ability 60 pcs per month
Product Details
Warranty 1 Year Color Customized,Yellow
Part Name Boom/Arm/Bucket Cylinder Material Q355B
After-sales Service Provided Online Support Condition 100%new
Maximum Length 26m Weight 4100kgs - 4500kgs
Bucket Capacity(m3) 0.8 Cbm Cylinder 24 Ton
High Light

Antirust Long Reach Boom

,

Q355B Long Reach Boom

,

Bucket Excavator Extension Arm

Leave a Message
Product Description

50-55ton Excavator 26m Customized Long Reach Boom And Arm With 0.8 Cbm Bucket For CAT Jcb Liebherr Shantui

Catalogue ZH excavator boom arm.pdf



Introduction of ZHONGHE Long Reach Excavator Booms and Arms



Suitable for all long reach excavators up to 120 tons operating weight.

Equipped with a selection of long reach excavator attachments, the extended booms can provide up to 50% more digging depth and forward reach compared to a standard excavator.

  1. Long-Reach Booms and Arms for all long reach excavators up to 120 t
  2. Suitable for deep excavation, dredging, slope stabilization & marine defense
  3. Long reach arm and boom set length up to 28 metres according to excavator
  4. Includes bucket cylinder, linkage kit, pins, greasing pipes and hoses
  5. High grade steel construction for longer reach under heavy loads
  6. Optional counterweights are available to purchase

CAT 50-55ton Excavator Long Reach Boom Antirust 26m With 0.8 Cbm Bucket 0



Product advantages for excavator dipper extension



FIRST--Less maintaince and sturdy



1. plasma cutting, machine milling, robot welding, boring after welding, assembly line production operation, and better quality assurance.

2 It can be customized according to the working conditions to meet the construction needs of different users.

3. The opening angle of the large and small arms can reach 163 degrees, and the excavation radius and height are larger.

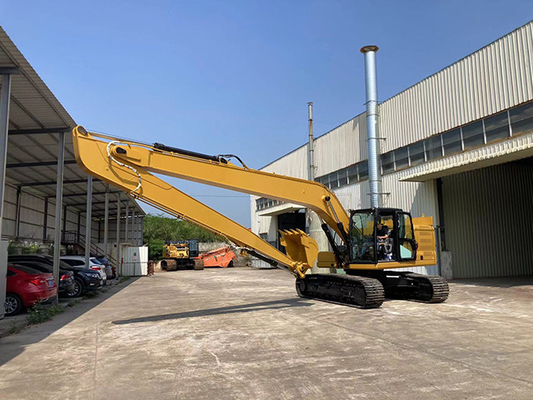

CAT 50-55ton Excavator Long Reach Boom Antirust 26m With 0.8 Cbm Bucket 1



SECOND--CORE DESIGN TECHNOLOGY


1. Tolerance within 5-10um

Hole drilling tolerance is within 5-10um, ensure the accuracy.
2.
High work efficiency and save fuel

Lighter while taking into account the quality, it not only ensures work efficiency but also saves fuel.

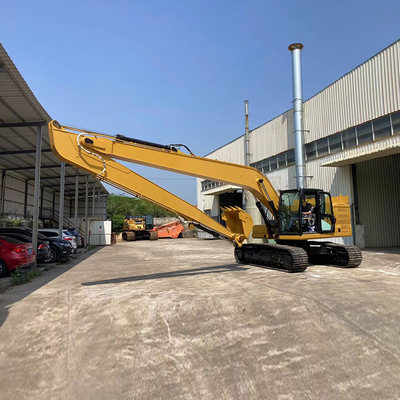

CAT 50-55ton Excavator Long Reach Boom Antirust 26m With 0.8 Cbm Bucket 2



Sumilation parameters of ZH long reach attachments



Excavator Ton Total Length(mm) (A)Boom
(mm)
(B)Arm
(mm)
Maximum Digging Radius(mm) Maximum Digging Depth(mm) Maximum Unloading Height(mm) Maximum Digging Height(mm) Bucket Volume(cbm) Cylinder(ton)
11-15T 13000 7250 5750 11200 9000 7550 9350 0.15-0.3 12T
20-25T 15400 8220 7180 14500 11300 10400 12600 0.4-0.6 12T
20-30T 18000 10000 8000 17300 13000 11800 14000 0.4-0.7 12T
35-40T 20000 11000 9000 19200 14900 12900 15200 0.6-1.2 12T
40-45T 22000 12000 10000 21300 16000 14000 17000 0.5-1 20T
40-50T 24000 13000 11000 23000 17900 15200 18100 0.5-1.1 20T



CAT 50-55ton Excavator Long Reach Boom Antirust 26m With 0.8 Cbm Bucket 3





Advangtages of ZHONGHE MACHINERY



GOOD SERVICE:

1. Online support within 24 hours.

2. Appointment video technical support.

   (Our engineers have focused on excavator boom and attachment over 10 years)

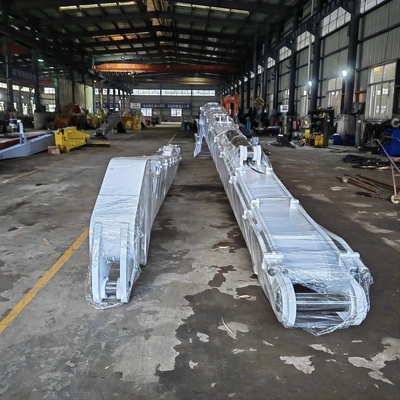

3. Long excavator boom shall be two/three jointed pcs to make it fittable into container to save shipping cost.



WARRANTY

1 year for long reach boom, 180 days for cylinder and linkage, 90 days for bucket.



CAT 50-55ton Excavator Long Reach Boom Antirust 26m With 0.8 Cbm Bucket 4



Recommended Excavator Attachments


1. Long reach excavator boom

2. Excavator telescopic boom

3. Demolition boom

4. Excavator rock bucket

5. Excavator tilting bucket

6. Hydraulic grabs for excavators



FAQ of Long Reach Excavator Boom



Q1: Why not have boom and stick cylinders in the plan?
A1: First, the whole long arm is lengthening, but the boom just lengthening from its middel sleeve to its end, so the original boom and stick cylinder can be used. Second, using the original parts can save your cost.



Q2: How long is the boom arm can min excavator be be configured with? Whether it is necessary to increase the counterweight?
A2. Generally speaking, 30-40 excavator longest arm suggests to be 8 meters, can configure 0.1 cbm bucket, no need extra counterweight. 55 excavator longest arm suggests to be 12 meters, can configure 0.1-0.15 cbm bucket, need 0.5 ton extra counterweight. 60-80 excavator longest arm suggests to be 12 meters, can configure 0.15-0.25 cbm bucket, need 0.5-0.7 ton extra counterweight.
It is not recommended to extend boom arm to longest length as min excavator is easy to sloshing.



Q3. Can you give warranty of your products?
A3. Yes, we provide a 100% satisfaction guarantee on all items. Please feel free to contact immediately if you are not satisfied with our product or service.



CAT 50-55ton Excavator Long Reach Boom Antirust 26m With 0.8 Cbm Bucket 5
