China supplier 11 ton-16 ton excavator Manual log grapple mechanical timber grab for CAT Hitachi Liebherr excavator

click here to read the catalog:Zhonghe Machinery Catalog-Contact Sales Manager Aria Directly

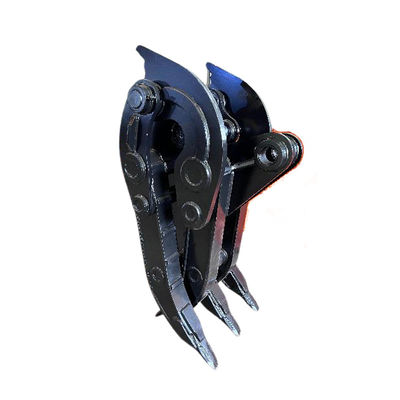

General Purpose Manual Rock Grapple is designed for demolition, landscaping, timber handling, and moving bulk materials such as rocks, logs, and general scrap materials.

Made of high-strength manganese steel, are designed completely with a stiff arm, dipper bracket, and replaceable bushes, with reasonable design and exquisite processing technology, it has a longer service life, and the new type is more durable and practical than the old one.

Waste metal treatment, stone clamping, wood loading and unloading and handling.

Robust structure

1. The ear seat and grab body are connected firmly by multi-reinforced tendon plates.

2. Double link design between the main board and grab body disperses the stress

3. The main body and main board are reinforced by tendon plate to disperse the stress

4. Thickened 45# steel pins, can withstand greater forces

Lighter and durable

The improved grabber is lighter, more durable and less likely to damage the arm than the 1.0 versison.

Antiwear

The teeth is made of integral antiwear blocks

Easy to maintain

Oil can be added separately and conveniently to increase service life

High effectiveness

Built-in anti-slip blocks enchance work efficiency

CUSTOMIZATION:

1. Fitting all kinds of excavator.

2. Color, length, thinkness, steel types can do as your demand.

STRONG PRODUCTION CAPACITY:

Our month output of excavator boom arms is about 50 sets.

GOOD SERVICE:

1. 7*24 hours online support

2. Video technical support.

WARRANTY

A year for excavator boom arm, half year for cylinder and linkage, 3 months for bucket.

Q1: How many types of excavator grab?
A1: 3 types, mechanical grab, hydraulic grapple with rotation and hydraulic grapple withour rotation.

The excavator mechanical grab is driven by bucket cylinder, no additional hydraulic block and pipeline are needed.

The non-rotation hydraulic grapple should be controlled by adding a set of hydraulic valve block and pipeline.

The rotated hydraulic gripper needs to be controlled by adding two sets of hydraulic valve blocks and pipelines.

Q2: Should the telescopic boom carry a clamshell bucket or a grab bucket?

A2: The clamshell bucket does good help under the working condition of excavating sludge and sand, with larger excavation volume and higher efficiency. But under the working condition of sand mixed with stone, the working efficiency of the shell bucket will be greatly reduced due to the low excavation force and small opening, so the grab bucket can be competent for this.

Q3: How long is the boom arm can min excavator be be configured with? Whether it is necessary to increase the counterweight?
A3. Generally speaking, 30-40 excavator longest arm suggests to be 8 meters, can configure 0.1 cbm bucket, no need extra counterweight. 55 excavator longest arm suggests to be 12 meters, can configure 0.1-0.15 cbm bucket, need 0.5 ton extra counterweight. 60-80 excavator longest arm suggests to be 12 meters, can configure 0.15-0.25 cbm bucket, need 0.5-0.7 ton extra counterweight.
It is not recommended to extend boom arm to longest length as min excavator is easy to sloshing.

1. Long reach excavator boom

2. Excavator telescopic boom

3. Demolition boom

4. Excavator rock bucket

5. Excavator tilting bucket

6. Hydraulic grabs for excavators

Kaiping Zhonghe Machinery Manufacturing Co., Ltd.,manufacturing and trading combo, specializes in customizing excavator long reach boom arm and attachments for 5 years.

Located in Cuishanhu New District, Kaiping City, Jiangmen City, Guangdong Province, China, we has more than 14000㎡ steel structure standardization workshop, and a large number of high precision processing equipment, such as CNC plasma cutting machine, CNC flame cutting machine, milling edge machine, etc.

With years of experience in engineering equipment manufacturing, we independently R&D and produce different kinds of excavator boom arms and attachments with CE-certification, such as, long reach boom, 3-stage demolition boom, 2/3-section telescopic boom, standard/strengthen/rock bucket, gripper, ripper, etc., which are widely used in a variety of engineering fields, like Machinery Repair Shops, Farms, Construction works , Energy & Mining, and Other. Our annual output of various types of excavator boom arms can reach 600 sets. Our products sell well in more than 40 countries and areas.

We have a strong and cohesive team. At present, there are more that 60 experienced technical staffs, 30 welding workers with over 7 years experience, 15 senior designers and a high-tech R&D team.

We adhere" Merit Quality, Sincerity Management and Customer Satisfaction", honestly greet customers from home and abroad to negotiate and cooperate with us.
