Manufacturer customize Excavator Pile Hammer Attachments Vibratory Hammer Pile Driver for PC350
Catalogue ZH excavator boom arm.pdf

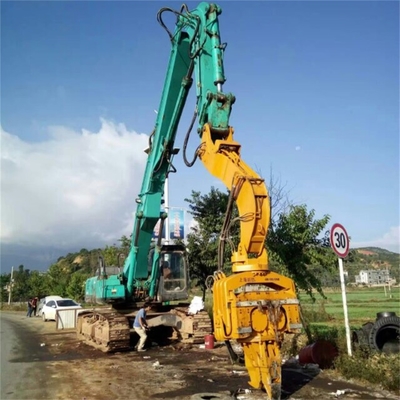

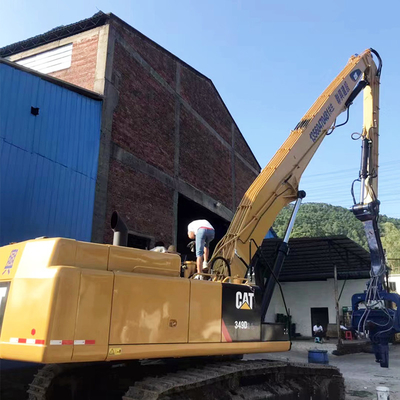

Introduction of ZHONGHE Excavator Pile Driving Boom
The excavator pile driving arm is customized specially to drive and pull sheet pile, which is different from excavator standard boom arm. The pile driving boom is straight for lifting conveniently, which is equipped with a short arm. Then a pile hammer bending arm can be connected with the small arm, so as to better control the pile lifting and pressing operations
ZHONGHE Excavator Pile Harmmer Boom Arm advantages
1. Good quality: the lower cover plates of the boom and arm are thickened, the interior of the box adopts two-way reinforcement plate design, the small arm ear’s bearing position is treated with segmented thickened plate, which improves the service life of the pile arm.
2. Supply customization service according to customer requirements.
3. Open angle of boom and arm can achieve 160°, and the Angle of the large arm and the base can reach 88°, which larger the overall working range.

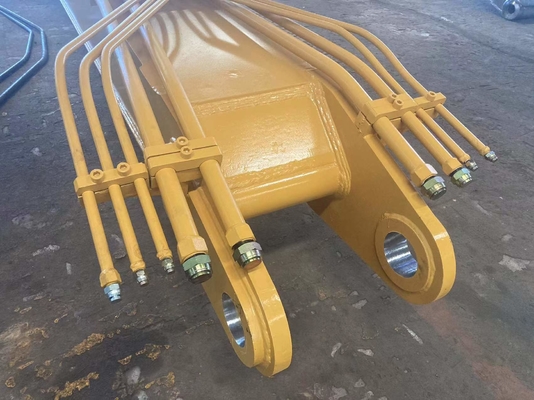

4. The steel pipe above the large arm is designed in sections to facilitate later maintenance

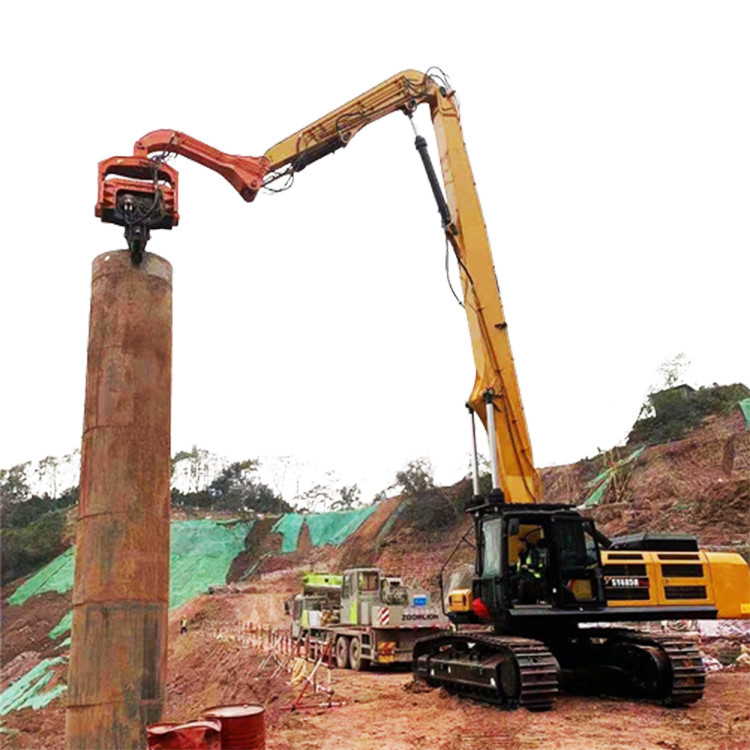

Applications of Excavator Pile Driving Boom
It can drive and pull sheet pile, steel rail pile, H steel rail pile and H steel sheet pile, and is applicable to the construction of foundation works such as flood control, embankment, drainage, earthwork, retaining wall and slope surface
Warning if you buy our Pile Driving Long Reach Boom Arm for Excavator
All pins and linkage assembly use the original one, and the high pressure hose of the arm cylinder also use the original one.
The required exciting force should be comprehensively determined according to the soil layer, soil quality, water content of the site, and the type and structure of the pile.
| Peli Driving Arm Accessories |
| name |
Unit |
main material |
warranty(day) |
| Boom |
1 |
Q355B |
360 |
| Arm |
1 |
Q355B |
360 |
| High-pressure hose |
9 |
4 layers wire ring |
0 |
| Lubrication pipe |
5 |
1 layer wire ring |
0 |
| Shut-off valve |
3 |
— |
0 |
Advangtages of ZHONGHE MACHINERY
CUSTOMIZATION:
1. Applicable for all brand excavator.
2. Color, length, material can do according to you.
3. Extra pipeline can be added to suit to some extra application.
4. Boom cylinder and stick cylinder can also be supplied if customer want.
STRONG PRODUCTION CAPACITY:
We can produce 50 sets excavator booms per month.
Our annual output of various types of excavator boom arms can reach 600 sets.
GOOD SERVICE:
1. Online support within 24 hours.
2. Appointment video technical support.
(Our engineers have focused on excavator boom and attachment over 10 years)
3. Long excavator boom shall be two/three jointed pcs to make it fittable into container to save shipping cost.
WARRANTY
1 year for long reach boom, 180 days for cylinder and linkage, 90 days for bucket.
Recommended Excavator Attachments
1. Long reach excavator boom
2. Excavator telescopic boom
3. Demolition boom
4. Excavator rock bucket
5. Excavator tilting bucket
6. Hydraulic grabs for excavators
Purchasing Long Excavator Boom Process in ZHONGHE
| 1. Send us your excavator model and working surroundings. |
|
2. We will give you quotation with professional advice of long reach arm combination RFY within two working days.
|
| 3. We will send you sumilation parameters after you confirm the step 2. |
| 4. Conduct PIs and sign a contract. |
| 5. A video inspection after production before shipping |
| 6. Delivered. |
