Product Details:
|
| Condition: | Never Used, New | Warranty: | 180 Days To 1 Year |
|---|---|---|---|
| Color: | Optional, Up To You | Main Material: | Q345 Excavator Pile Drive Boom |
| Boom: | 10800mm | Arm: | 5000mm |
| Keywords: | Pile Driving Arm | Length: | 15800mm |
| High Light: | Multipurpose Excavator Pile Driver,PC400 Excavator Pile Driver,PC500 Excavator Vibro Hammer |
||

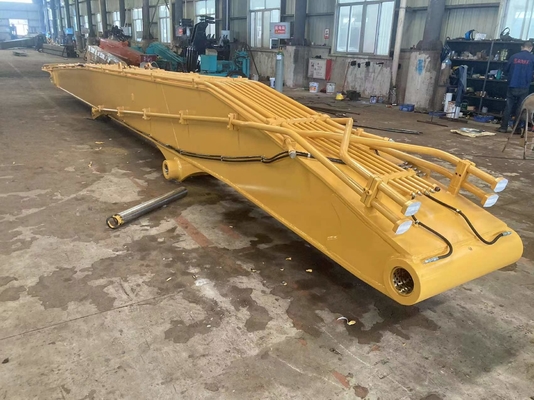

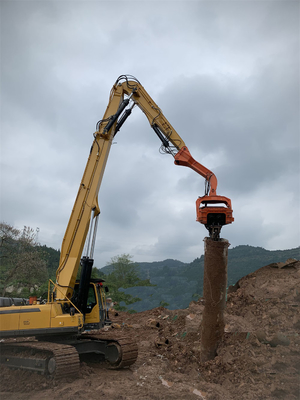

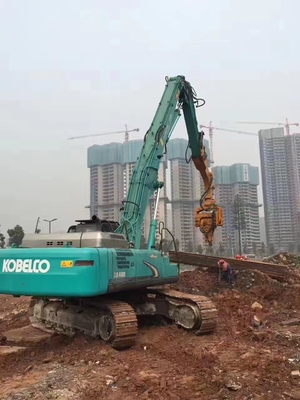

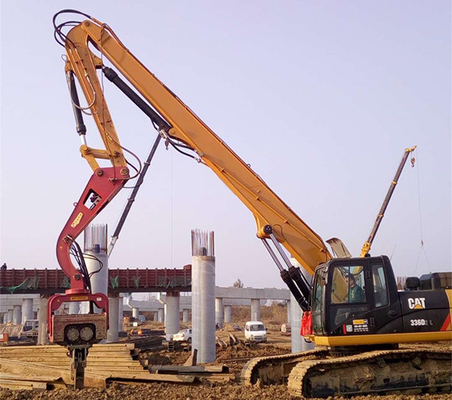

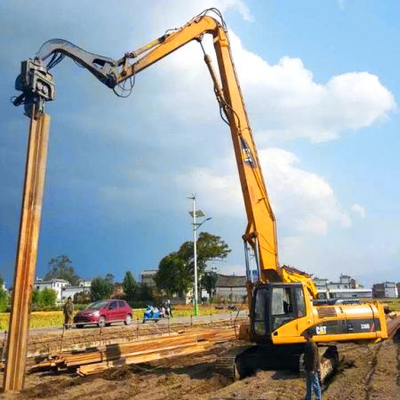

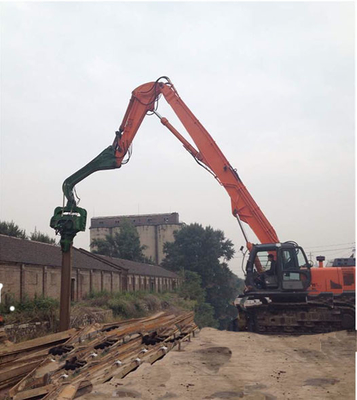

Manufacturer Excavator Pile Hammer Attachments Vibratory
Hammer Pile Driver Excavator Long Reach Boom for PC400 PC500
click here to check the catalog:Zhonghe Machinery Catalog-Contact Sales Manager Aria Directly
| model(ton) | length(m) | weight(kgs) |
| 20-24T | 11-12m | 3000 |
| 25-28T | 12.5-13m | 4000 |
| 30-38T | 13.5m | 4500 |
| 36-39T | 15m | 5000 |
| 40-47T | 13-14.2m | 5500 |
| 47-52T | 18-19m | 6000 |
welcome to send your excavator model and the working condition of your excavator to us!

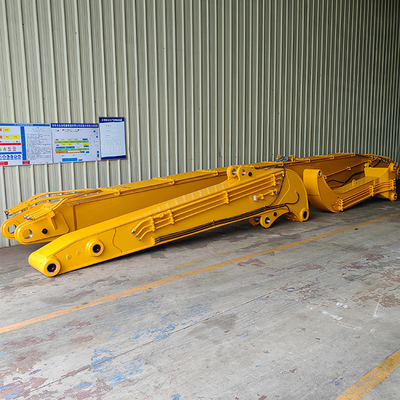

Some key points of Pile Boom which excel other peers:
1.The angle between boom and horizon can reach about 88°
2.The angle between boom and arm can reach about 160°
3.Comparing with the same length pile driving arm, ours can pile higher.

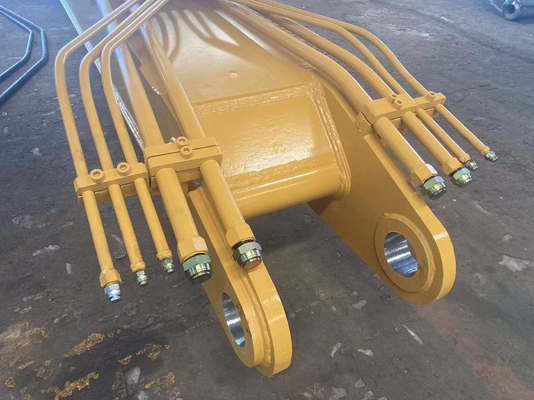

4.Adopt 90 degree elbow joint to avoid hose bending and increase it service life
5.The box has built-in transverse and vertical reinforcement ribs to improve its tensile strength
6.Seamless precision steel pipe, Centralized lubrication system, Graphite alloy copper sleeve
7.The boom seat sleeve adopts all in one molding process

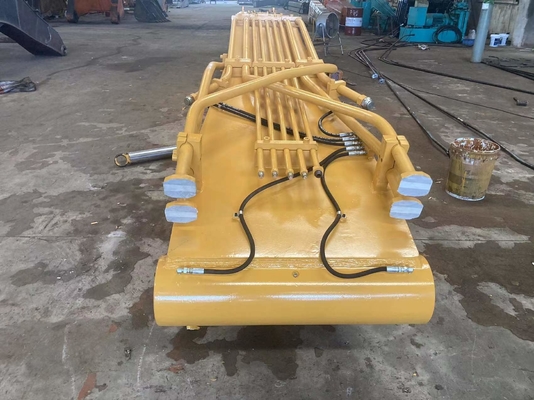

8. Hydraulic pipelines section design, convenient for later maintenance
9. Multi-layer reinforcing rib plate at the stress place, more firm, integrated molding
10. The back bushing of the arm is wrapped by the whole board to avoid falling off
11. Four layers five passes welding
