Two layers groove welded 18M Long Reach Arm For Excavator Cat320D PC200 ZX200

Two layers groove welded 18M Long Reach Arm For Excavator Cat320D PC200 ZX200
Two layers groove welded 18M Long Reach Arm For Excavator Cat320D PC200 ZX200 Two layers groove welded 18M Long Reach Arm For Excavator Cat320D PC200 ZX200 Two layers groove welded 18M Long Reach Arm For Excavator Cat320D PC200 ZX200 Two layers groove welded 18M Long Reach Arm For Excavator Cat320D PC200 ZX200 Two layers groove welded 18M Long Reach Arm For Excavator Cat320D PC200 ZX200 Two layers groove welded 18M Long Reach Arm For Excavator Cat320D PC200 ZX200

Large Image :  Two layers groove welded 18M Long Reach Arm For Excavator Cat320D PC200 ZX200

Product Details:
Place of Origin: China
Brand Name: ZHONGHE
Certification: CE
Model Number: 20-27T
Payment & Shipping Terms:
Minimum Order Quantity: 1set
Price: 12600
Packaging Details: Plastic wrap and bubble wrap packing
Delivery Time: 15`20days
Payment Terms: T/T
Supply Ability: 50set one month

Two layers groove welded 18M Long Reach Arm For Excavator Cat320D PC200 ZX200

Description
Material: Q355B Colour: Custom
Condition: New Long Reach Boom & Arm Warranty: 1 Year
After-sales Service Provided: Online Support Bucket Capacity: 0.4-0.5CBM
High Light:

Cat320d Long Reach Arm

,

Q355B Material Long Reach Arm

,

Cat320 Cl Long Reach Excavator Booms

Two layers groove welded 18M Long Reach Arm For Excavator Cat320D PC200 ZX200

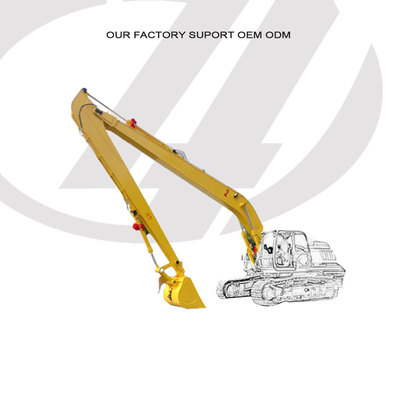

Introduce of excavator long arm


Versatility and Flexibility: The extended boom enhances the versatility and flexibility of the excavator, making it suitable for a wide range of applications. It allows the machine to perform tasks that would typically require specialized equipment or additional attachments. This versatility eliminates the need for multiple machines, saving both time and resources.



Improved Safety: Using an excavator with an extended boom can also contribute to improved safety on the job site. The longer reach allows the operator to maintain a safer distance from hazardous areas, unstable terrain, or potentially dangerous structures. This increased safety margin reduces the risk of accidents and ensures a safer working environment for the operator and other personnel.



Two layers groove welded 18M Long Reach Arm For Excavator Cat320D PC200 ZX200 0

​Video introduce of long reach boom


Two layers groove welded 18M Long Reach Arm For Excavator Cat320D PC200 ZX200 1




Product advantage of long excavator boom and arm:

01 Use Q355B material,
02 Adopts precision steel pipeline
03 Adopt alloy copper sleeve big arm base
04 Two layers groove welded to ensure
05 Double quality inspection before leaving
06 The tolerance of position size within 1 mm
07 Angle of boom and arm can reach 163°



The specification of excavator boom stick

Excavator Ton Total Length(mm) (A)Boom(mm) (B)Arm(mm) Maximum Digging Radius(mm) Maximum Digging Depth(mm) Maximum Unloading Height(mm) Maximum Digging Height(mm) Bucket Volume(cbm) Cylinder(ton)
11-15T 13000 7250 5750 11200 9000 7550 9350 0.15-0.3 12T
20-25T 15400 8220 7180 14500 11300 10400 12600 0.4-0.6 12T
20-30T 18000 10000 8000 17300 13000 17200 14000 0.4-0.7 12T
35-40T 20000 11000 9000 19200 14900 12900 15200 0.6-1.2 12T
40-45T 22000 12000 10000 21300 16000 14000 17000 0.5-1 20T
40-50T 24000 13000 11000 23000 17900 15200 18100 0.5-1.1



The excavator boom and stick long introduce

A long reach excavator is a type of excavator where the arm has been extended to reach farther than a normal excavator would. It is often used in demolition of buildings, but it can also be used in other applications..

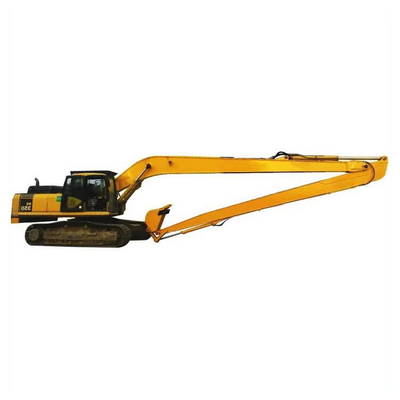

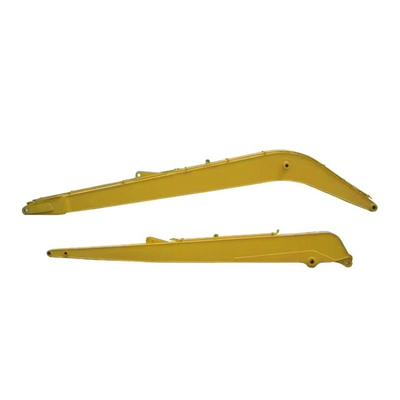

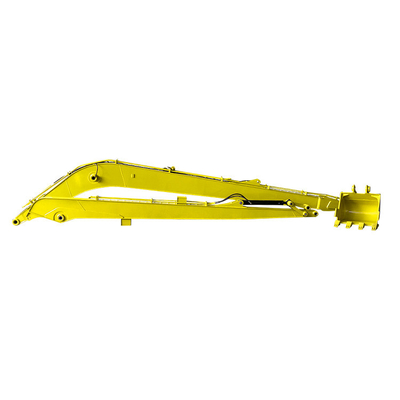

The pictures of excavator long arm for caterpillar

Two layers groove welded 18M Long Reach Arm For Excavator Cat320D PC200 ZX200 2

Two layers groove welded 18M Long Reach Arm For Excavator Cat320D PC200 ZX200 3

Two layers groove welded 18M Long Reach Arm For Excavator Cat320D PC200 ZX200 4

Two layers groove welded 18M Long Reach Arm For Excavator Cat320D PC200 ZX200 5

Two layers groove welded 18M Long Reach Arm For Excavator Cat320D PC200 ZX200 6Two layers groove welded 18M Long Reach Arm For Excavator Cat320D PC200 ZX200 7Two layers groove welded 18M Long Reach Arm For Excavator Cat320D PC200 ZX200 8Two layers groove welded 18M Long Reach Arm For Excavator Cat320D PC200 ZX200 9Two layers groove welded 18M Long Reach Arm For Excavator Cat320D PC200 ZX200 10Two layers groove welded 18M Long Reach Arm For Excavator Cat320D PC200 ZX200 11Two layers groove welded 18M Long Reach Arm For Excavator Cat320D PC200 ZX200 12Two layers groove welded 18M Long Reach Arm For Excavator Cat320D PC200 ZX200 13Two layers groove welded 18M Long Reach Arm For Excavator Cat320D PC200 ZX200 14Two layers groove welded 18M Long Reach Arm For Excavator Cat320D PC200 ZX200 15Two layers groove welded 18M Long Reach Arm For Excavator Cat320D PC200 ZX200 16Two layers groove welded 18M Long Reach Arm For Excavator Cat320D PC200 ZX200 17Two layers groove welded 18M Long Reach Arm For Excavator Cat320D PC200 ZX200 18Two layers groove welded 18M Long Reach Arm For Excavator Cat320D PC200 ZX200 19
