Excavator 0.4-0.5CBM Front Long Reach Stick For Cat Komatsu Kobelco

Place of Origin China
Brand Name ZHONGHE
Certification CE
Model Number 20-27T
Minimum Order Quantity 1set
Price 12600
Packaging Details Plastic wrap and bubble wrap packing
Delivery Time 15`20days
Payment Terms T/T
Supply Ability 50set one month
Product Details
Material Q355B Colour Custom
Condition New Long Reach Boom & Arm Warranty 1 Year
After-sales Service Provided Online Support Bucket Capacity 0.4-0.5CBM
High Light

0.5CBM Long Reach Stick

,

Excavator Long Reach Stick

,

Front Long Reach Excavator Booms

Leave a Message
Product Description

long reach boom arm PC200 CAT320 ZX200 SK200 SY312 long boom arm for DOOSAN HYUNDAI KOMATSU KOBELCO



The video show of dipper arm extension



Excavator 0.4-0.5CBM Front Long Reach Stick For Cat Komatsu Kobelco 0



Product advantage of long excavator boom and arm:

01 Use Q355B material,
02 Adopts precision steel pipeline
03 Adopt alloy copper sleeve big arm base
04 Two layers groove welded to ensure
05 Double quality inspection before leaving
06 The tolerance of position size within 1 mm
07 Angle of boom and arm can reach 163°



The specification of excavator boom stick

Excavator Ton Total Length(mm) (A)Boom(mm) (B)Arm(mm) Maximum Digging Radius(mm) Maximum Digging Depth(mm) Maximum Unloading Height(mm) Maximum Digging Height(mm) Bucket Volume(cbm) Cylinder(ton)
11-15T 13000 7250 5750 11200 9000 7550 9350 0.15-0.3 12T
20-25T 15400 8220 7180 14500 11300 10400 12600 0.4-0.6 12T
20-30T 18000 10000 8000 17300 13000 17200 14000 0.4-0.7 12T
35-40T 20000 11000 9000 19200 14900 12900 15200 0.6-1.2 12T
40-45T 22000 12000 10000 21300 16000 14000 17000 0.5-1 20T
40-50T 24000 13000 11000 23000 17900 15200 18100 0.5-1.1



The excavator boom and stick long introduce

Long Reach Booms are made of high strength and high Tensile alloy steel Q345B, and better material (700Mpa Yield Strength) is optional
Inside of Booms with we design baffle plates that make booms strong and durable to withstand torsional loads
Our boom and arm are large-welded box structure and thick or multi-plates for high-stress areas.
High quality accessories such as pipeline, pins, bushes and cylinders,
Camera system can be furnished on your request
Lock Valve is optional as a security tool to prevent boom down in the event of hydraulic hose blows
Bucket cylinder With protective Guard.
Various of Attachment to fit long reach booms: standard digging bucket, mud bucket, skeleton bucket, grapple.

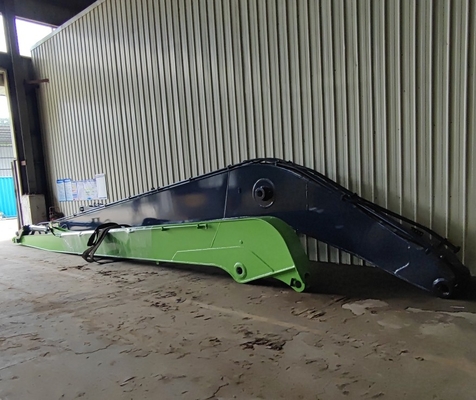

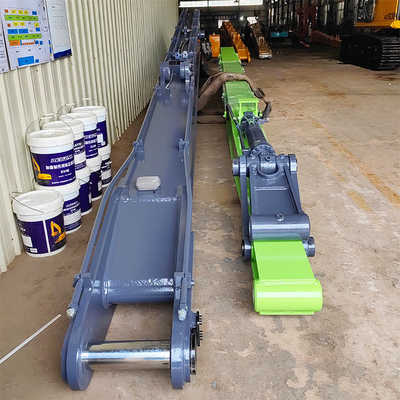

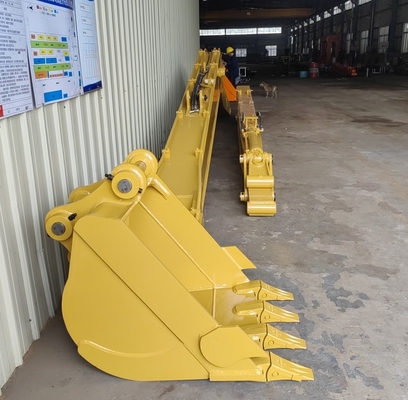

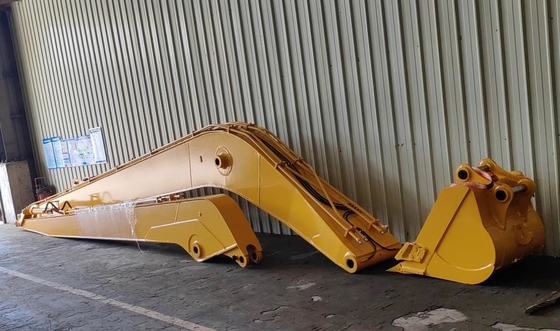

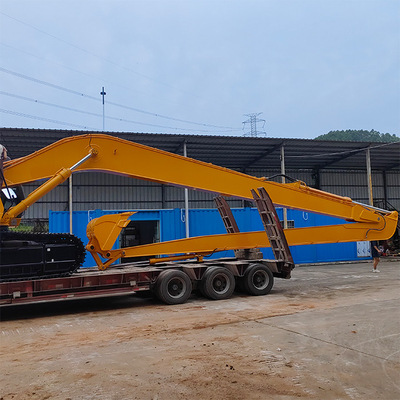

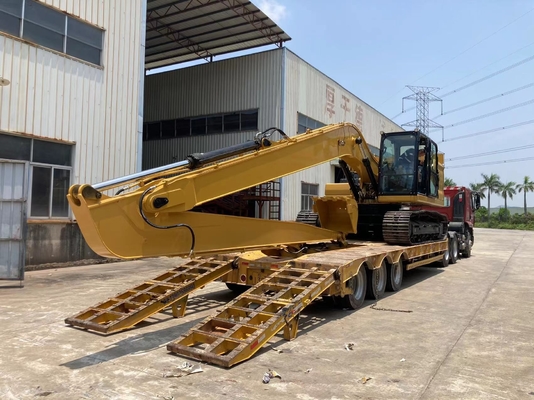

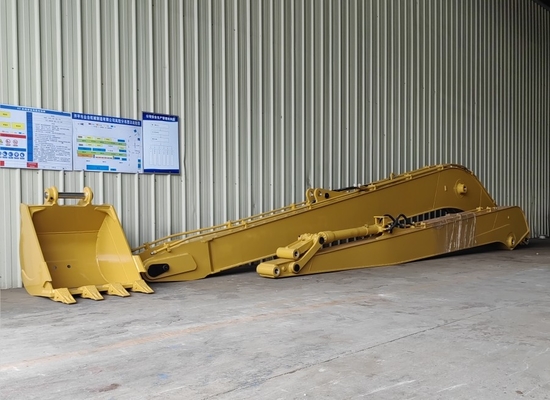

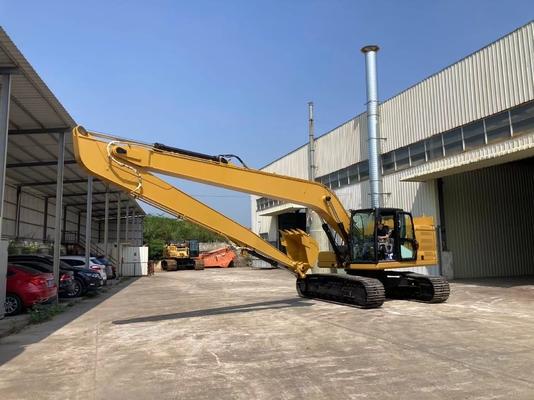

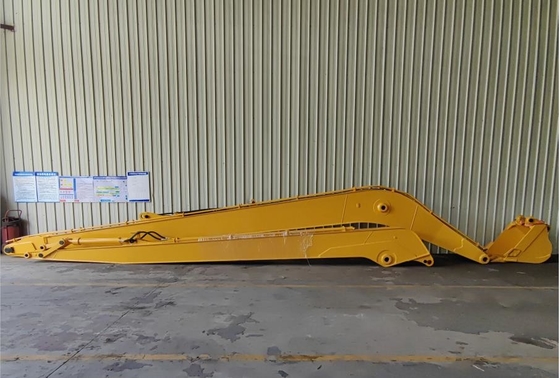

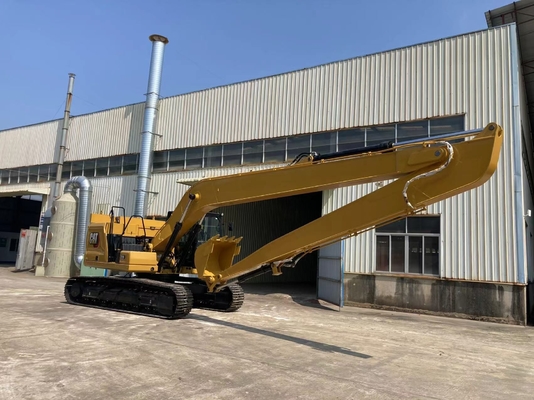

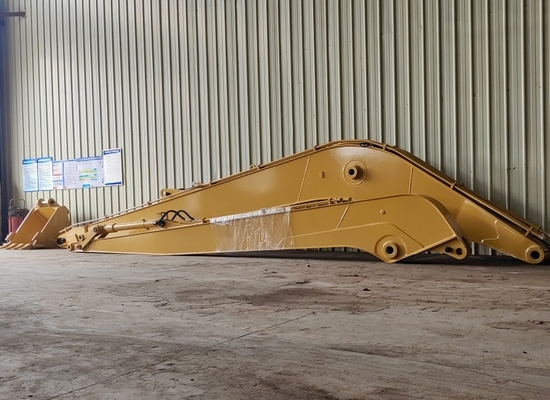

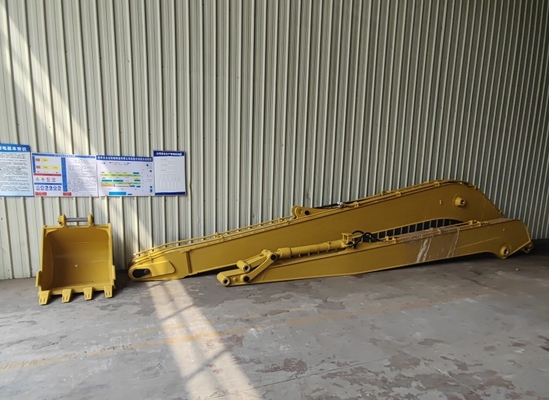

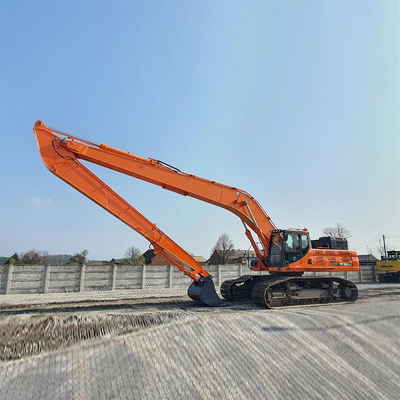

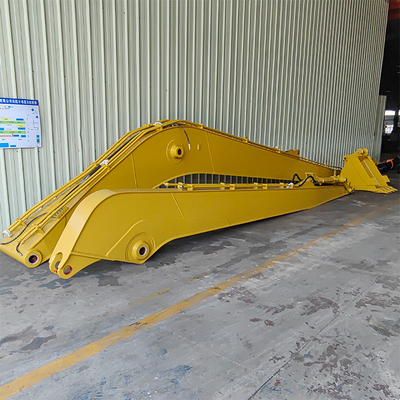

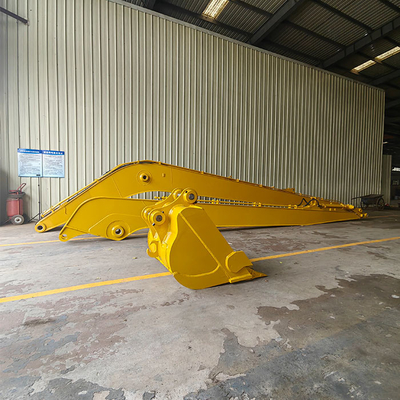

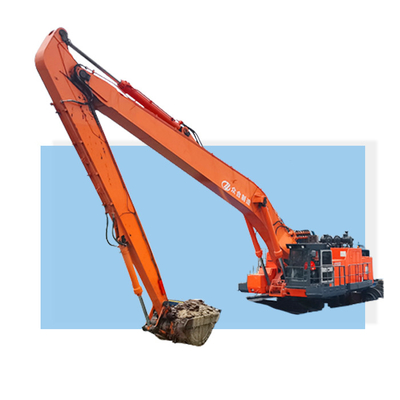

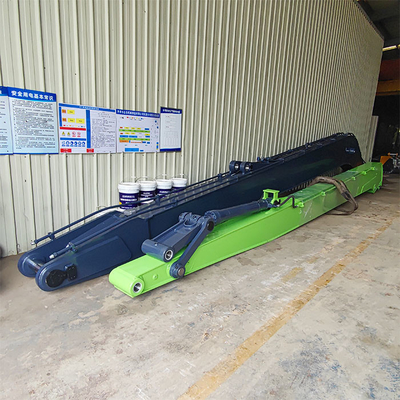

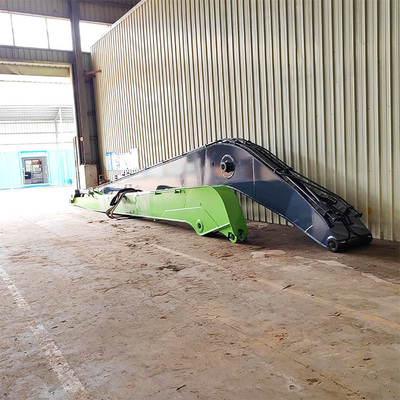

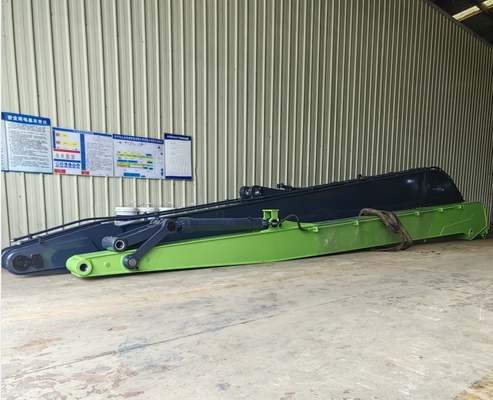

The pictures of excavator long arm for caterpillar

Excavator 0.4-0.5CBM Front Long Reach Stick For Cat Komatsu Kobelco 1

Excavator 0.4-0.5CBM Front Long Reach Stick For Cat Komatsu Kobelco 2

Excavator 0.4-0.5CBM Front Long Reach Stick For Cat Komatsu Kobelco 3

Excavator 0.4-0.5CBM Front Long Reach Stick For Cat Komatsu Kobelco 4

Excavator 0.4-0.5CBM Front Long Reach Stick For Cat Komatsu Kobelco 5Excavator 0.4-0.5CBM Front Long Reach Stick For Cat Komatsu Kobelco 6Excavator 0.4-0.5CBM Front Long Reach Stick For Cat Komatsu Kobelco 7Excavator 0.4-0.5CBM Front Long Reach Stick For Cat Komatsu Kobelco 8Excavator 0.4-0.5CBM Front Long Reach Stick For Cat Komatsu Kobelco 9Excavator 0.4-0.5CBM Front Long Reach Stick For Cat Komatsu Kobelco 10Excavator 0.4-0.5CBM Front Long Reach Stick For Cat Komatsu Kobelco 11Excavator 0.4-0.5CBM Front Long Reach Stick For Cat Komatsu Kobelco 12Excavator 0.4-0.5CBM Front Long Reach Stick For Cat Komatsu Kobelco 13Excavator 0.4-0.5CBM Front Long Reach Stick For Cat Komatsu Kobelco 14Excavator 0.4-0.5CBM Front Long Reach Stick For Cat Komatsu Kobelco 15Excavator 0.4-0.5CBM Front Long Reach Stick For Cat Komatsu Kobelco 16Excavator 0.4-0.5CBM Front Long Reach Stick For Cat Komatsu Kobelco 17Excavator 0.4-0.5CBM Front Long Reach Stick For Cat Komatsu Kobelco 18
