Product Details:
|
| Material: | Q355B | Size: | Custom |
|---|---|---|---|
| Condition: | New Long Reach Boom & Arm | Warranty: | 1 Year |
| After-sales Service Provided: | Online Support | Bucket Capacity: | 0.4-0.5CBM |
| High Light: | CAT Excavator Long Arm,Q355B Excavator Long Arm,Custom CAT Excavator Long Arm |
||
long reach boom arm PC200 CAT320 ZX200 SK200 SY312 long boom arm for DOOSAN HYUNDAI KOMATSU KOBELCO
The video show of dipper arm extension
Product advantage of long excavator boom and arm:
01 Use Q355B material,
02 Adopts precision steel pipeline
03 Adopt alloy copper sleeve big arm base
04 Two layers groove welded to ensure
05 Double quality inspection before leaving
06 The tolerance of position size within 1 mm
07 Angle of boom and arm can reach 163°
The specification of excavator boom stick
| Excavator Ton | Total Length(mm) | (A)Boom(mm) | (B)Arm(mm) | Maximum Digging Radius(mm) | Maximum Digging Depth(mm) | Maximum Unloading Height(mm) | Maximum Digging Height(mm) | Bucket Volume(cbm) | Cylinder(ton) |
| 11-15T | 13000 | 7250 | 5750 | 11200 | 9000 | 7550 | 9350 | 0.15-0.3 | 12T |
| 20-25T | 15400 | 8220 | 7180 | 14500 | 11300 | 10400 | 12600 | 0.4-0.6 | 12T |
| 20-30T | 18000 | 10000 | 8000 | 17300 | 13000 | 17200 | 14000 | 0.4-0.7 | 12T |
| 35-40T | 20000 | 11000 | 9000 | 19200 | 14900 | 12900 | 15200 | 0.6-1.2 | 12T |
| 40-45T | 22000 | 12000 | 10000 | 21300 | 16000 | 14000 | 17000 | 0.5-1 | 20T |
| 40-50T | 24000 | 13000 | 11000 | 23000 | 17900 | 15200 | 18100 | 0.5-1.1 |
Our Long Reach Booms Sticks fit most makes and models, Include but not limit below models.
Komatsu Excavator Model: PC160LC-8, PC200, PC210, PC228, PC220 PC270, PC300, PC350, PC450, PC600, PC850, PC1250
CAT Excavator Model: CAT320, CAT323, CAT326, CAT329, CAT330, CAT335, CAT336, CAT349, CAT352, CAT374, CAT390
Hitachi Excavator Model: ZX210, EX200, EX220, EX330, EX350, ZX200, ZX240, ZX330, EX350, EX400, ZX470, ZX670, ZX870, EX1200, EX1900
Volvo Excavator Model: EC220, EC235, EC250, EC300, EC350, EC355, EC380, EC480, EC750
Doosan Excavator Model: DX225, DX235, DX255, DX300, DX350, DX420, DX490, DX530, DX800
Kobelco Excavator Model: SK200, SK210, SK220, SK250, SK260, SK300, SK330, SK350, SK380, SK460, SK500, SK850
Sumitomo Excavator Model:?SH210, SH225, SH240, SH300, SH330, SH350, SH460, SH480, SH500, SH700, SH800
Hyundai Excavator Model: R200, R210, R220, R290, HX220, HX235, HX260, HX300, HX330, HX380, HX430, HX480, HX520, R1200
Introduce of excavator long arm

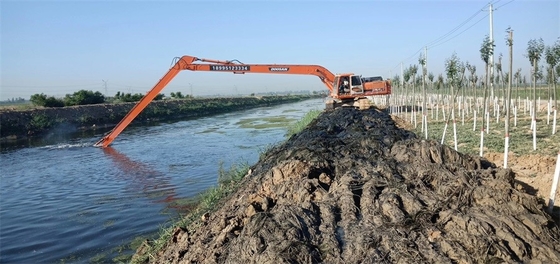

The elongated arm is divided into two sections, three sections and four sections. The two sections are mainly applicable to the construction transport of soil sand and concrete, the slope dressing of expressway and the dredging and dredging of river channels and the excavation of earth and rock such as building foundation, river channel and deep ditch. The three-stage and four-stage are mainly suitable for the dismantling of high-rise buildings and other operations. So how is the elongated arm processed? The following lengthened arm manufacturers will give you a brief introduction.
The elongated arm manufacturer tells you that because the elongated arm belongs to large heavy industry products, it needs large special equipment to process and manufacture with high efficiency and quality, so as to maximize the processing quality and manufacturing level.
The production of the elongated arm generally uses the computer D-aided design system to do stress analysis and simulation of the action. In addition, the proficiency of the skills of the processing equipment staff and practical knowledge, experience, and material selection, production process and other aspects have a key impact on the structural strength, service performance and quality of the elongated arm.

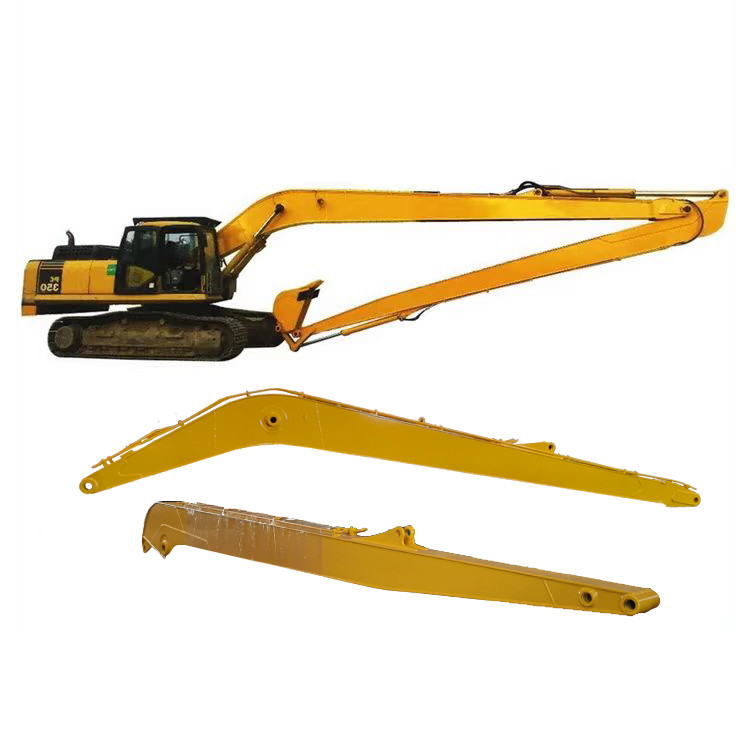

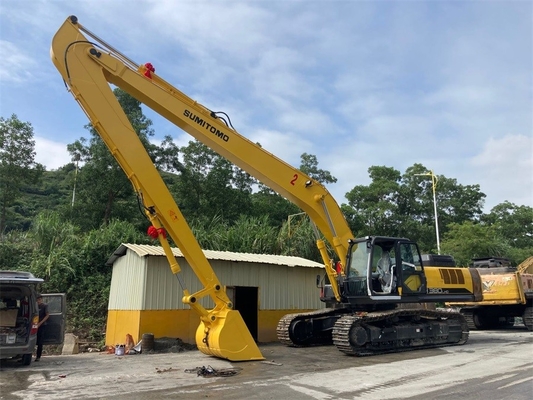

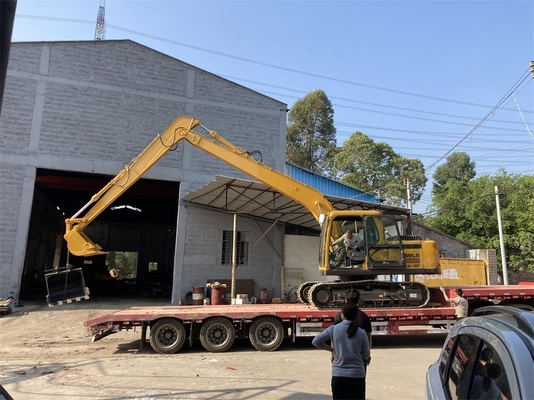

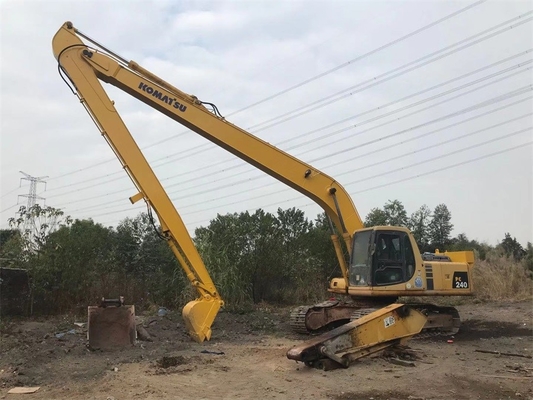

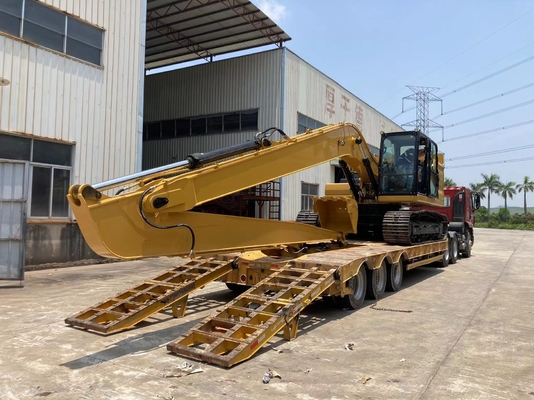

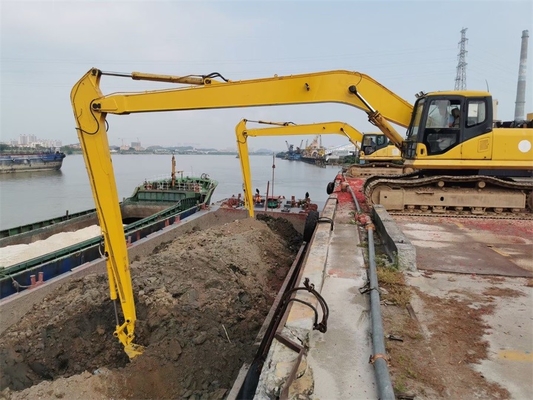

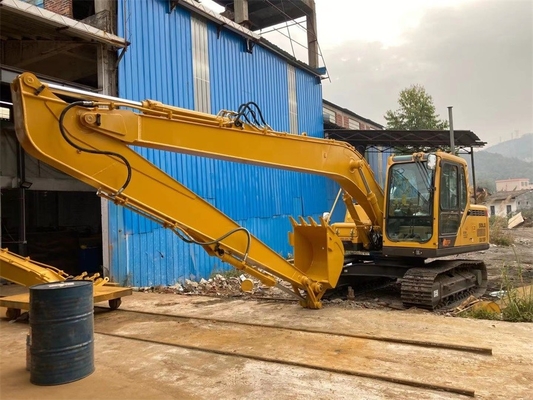

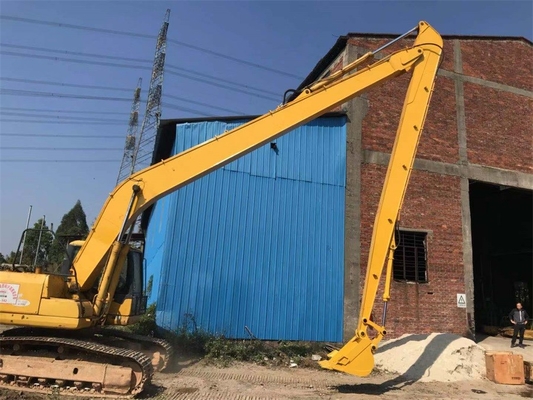

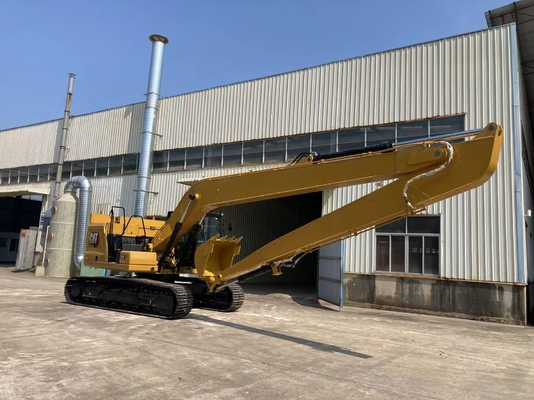

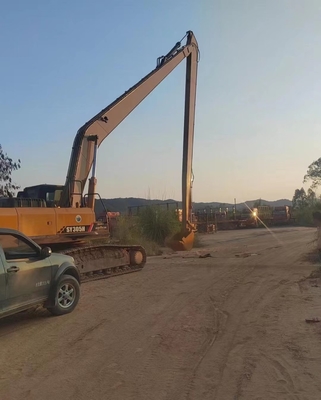

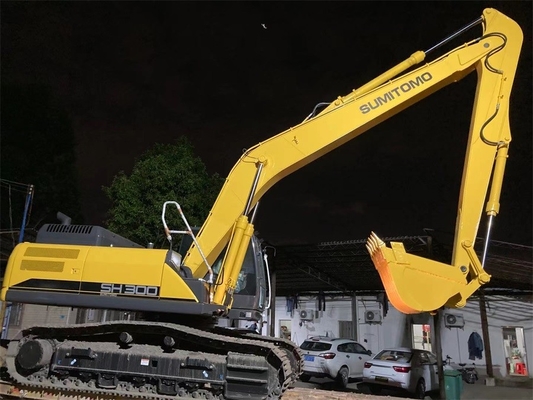

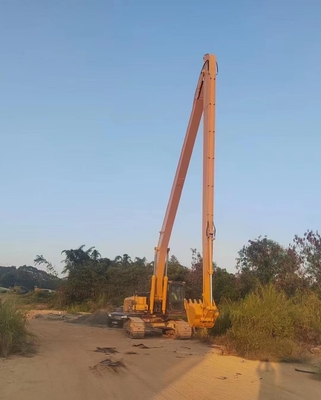

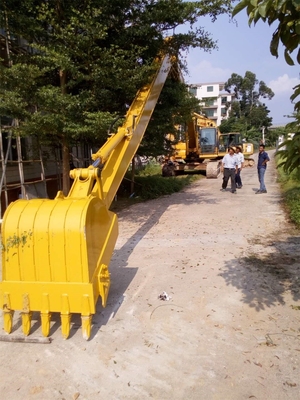

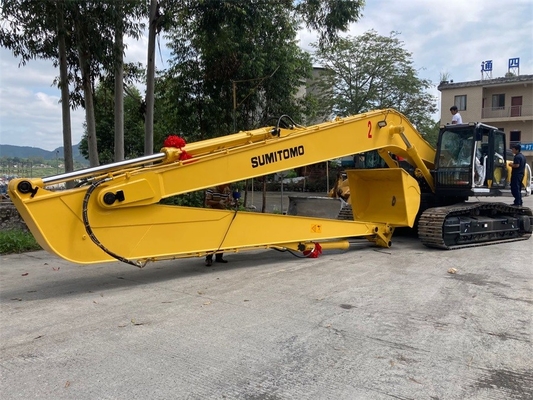

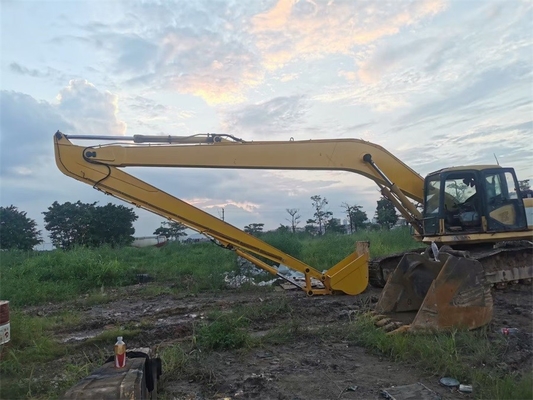

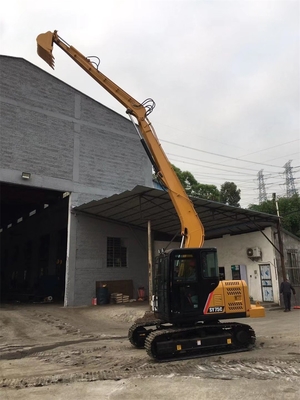

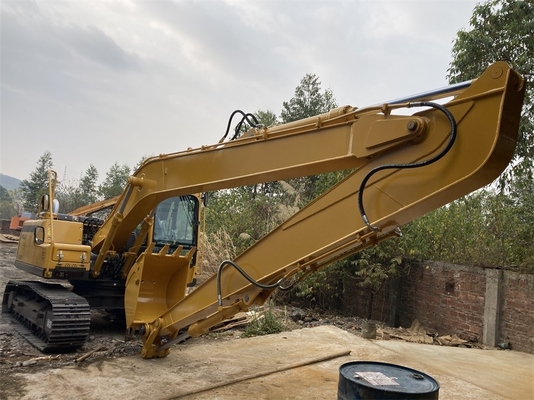

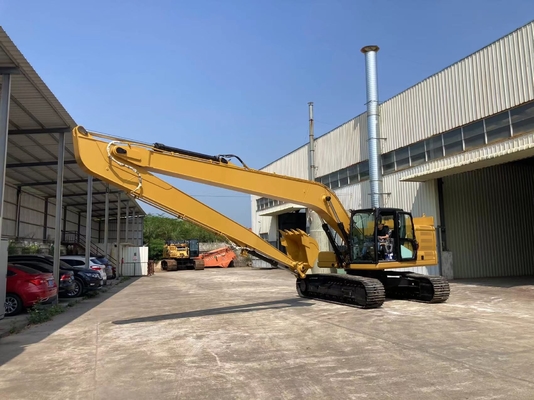

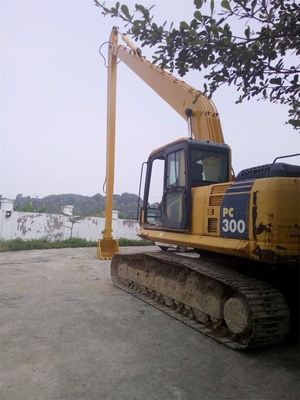

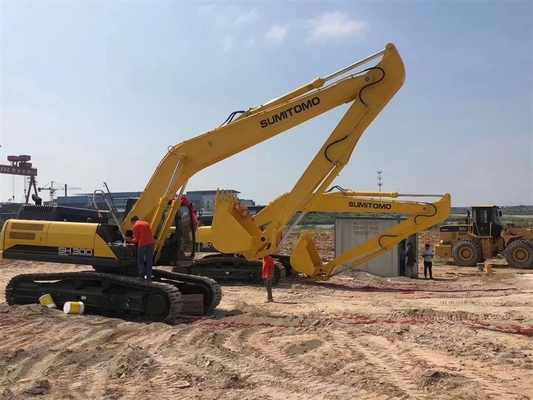

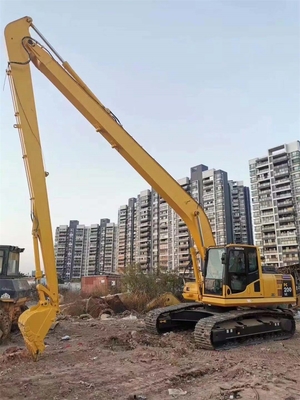

The pictures of excavator long arm for CAT
