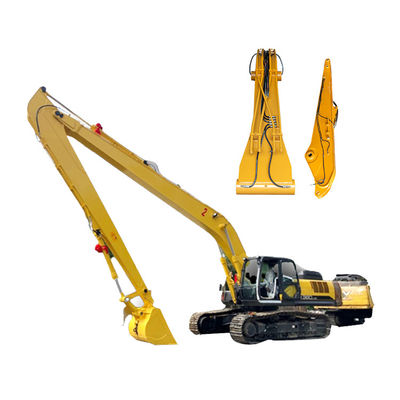

CAT349 Excavator Boom Arm , 20m Long Reach Boom And Stick

Place of Origin China
Brand Name ZHONGHE
Certification CE
Model Number 20-27T
Minimum Order Quantity 1set
Price 12600
Packaging Details Plastic wrap and bubble wrap packing
Delivery Time 15`20days
Payment Terms T/T
Supply Ability 50set one month
Product Details
Material Q355B Colour Custom
Condition New Long Reach Boom & Arm Warranty 1 Year
After-sales Service Provided Online Support Bucket Capacity 0.4-0.5CBM
High Light

Excavator Boom And Stick

,

20m Long Reach Boom And Stick

,

CAT349 Excavator Boom Arm

Leave a Message
Product Description

Excavator Front Attachment 18Meters Long Reach Boom And Arm For CAT320 Excavator



The video show of dipper arm extension



CAT349 Excavator Boom Arm , 20m Long Reach Boom And Stick 0



Product advantage of long excavator boom and arm:

01 Use Q355B material,
02 Adopts precision steel pipeline
03 Adopt alloy copper sleeve big arm base
04 Two layers groove welded to ensure
05 Double quality inspection before leaving
06 The tolerance of position size within 1 mm
07 Angle of boom and arm can reach 163°

Product Features:

according to customer requirements design and production of two-stage excavator elongated arm, mainly suitable for earth and stone foundation and deep cut excavation operations; Used in river dredging, port construction, subway construction, building foundation excavation, a wide range of operations, high efficiency, safety

CUSTOMIZATION:

1. Applicable for all brand excavator.

2. Color, length, material can do according to you.

3. Extra pipeline can be added to suit to some extra application.

4. Boom cylinder and stick cylinder can also be supplied if customer want.



GOOD SERVICE:

1. Online support within 24 hours.

2. Appointment video technical support.

(Our engineers have focused on excavator boom and attachment over 10 years)

3. Long excavator boom shall be two/three jointed pcs to make it fittable into container to save shipping cost



Product Features:



According to customer requirements design and production of two-stage excavator elongated arm, mainly suitable for earth and stone foundation and deep cut excavation operations; It is widely used in river dredging, port construction, subway construction and building foundation excavation, with wide operating range, high efficiency and high safety.



When users extended arm in order to save costs, we carefully analyzed the original car which accessories can use back to the original, which is must be replaced, replace standard arm extended arm of standard configuration is as follows: lengthen the forearm a, scoop a, 4 a bucket cylinder, hoses, butter tube 3, a connecting rod assembly, transportation, a connecting rod, pin 6.

CAT349 Excavator Boom Arm , 20m Long Reach Boom And Stick 1





The specification of excavator boom stick
Excavator Ton Total Length(mm) (A)Boom(mm) (B)Arm(mm) Maximum Digging Radius(mm) Maximum Digging Depth(mm) Maximum Unloading Height(mm) Maximum Digging Height(mm) Bucket Volume(cbm) Cylinder(ton)
11-15T 13000 7250 5750 11200 9000 7550 9350 0.15-0.3 12T
20-25T 15400 8220 7180 14500 11300 10400 12600 0.4-0.6 12T
20-30T 18000 10000 8000 17300 13000 17200 14000 0.4-0.7 12T
35-40T 20000 11000 9000 19200 14900 12900 15200 0.6-1.2 12T
40-45T 22000 12000 10000 21300 16000 14000 17000 0.5-1 20T
40-50T 24000 13000 11000 23000 17900 15200 18100 0.5-1.1



Long Reach Kits Are Fully Compatible with ZHONGHE Excavator Standard Buckets, Cylinder



Excavator long boom Excavator long arm Standard bucket
Linkage kit Bucket cylinder Butter hose
Pin Lubricatiing system Seals



Recommended Excavator Attachments


1. Long reach excavator boom

2. Excavator telescopic boom

3. Demolition boom

4. Excavator rock bucket

5. Excavator tilting bucket

6. Hydraulic grabs for excavators



FIRST--CORE CRAFT TECHNOLOGY


1. Less maintaince

Using high quality materials, such as Q355B as default, Q690D optional, Niningbo connectors, seamless precision piplines, graphite alloy copper sleeve, strong but light bucket cylinder.

2. Strong and sturdy

Built-in reinforcing ribs. Professional welding skill towards different bearing position. Groove preparation(45° edge-mining) before welding.





The pictures of excavator long arm for caterpillar

CAT349 Excavator Boom Arm , 20m Long Reach Boom And Stick 2

CAT349 Excavator Boom Arm , 20m Long Reach Boom And Stick 3

CAT349 Excavator Boom Arm , 20m Long Reach Boom And Stick 4

CAT349 Excavator Boom Arm , 20m Long Reach Boom And Stick 5

CAT349 Excavator Boom Arm , 20m Long Reach Boom And Stick 6CAT349 Excavator Boom Arm , 20m Long Reach Boom And Stick 7CAT349 Excavator Boom Arm , 20m Long Reach Boom And Stick 8CAT349 Excavator Boom Arm , 20m Long Reach Boom And Stick 9CAT349 Excavator Boom Arm , 20m Long Reach Boom And Stick 10CAT349 Excavator Boom Arm , 20m Long Reach Boom And Stick 11CAT349 Excavator Boom Arm , 20m Long Reach Boom And Stick 12CAT349 Excavator Boom Arm , 20m Long Reach Boom And Stick 13CAT349 Excavator Boom Arm , 20m Long Reach Boom And Stick 14CAT349 Excavator Boom Arm , 20m Long Reach Boom And Stick 15CAT349 Excavator Boom Arm , 20m Long Reach Boom And Stick 16CAT349 Excavator Boom Arm , 20m Long Reach Boom And Stick 17CAT349 Excavator Boom Arm , 20m Long Reach Boom And Stick 18

FAQ of Long Reach Excavator Boom



Q1: Why not have boom and stick cylinders in the plan?
A1: First, the whole long arm is lengthening, but the boom just lengthening from its middel sleeve to its end, so the original boom and stick cylinder can be used. Second, using the original parts can save your cost.



Q2: How long is the boom arm can min excavator be be configured with? Whether it is necessary to increase the counterweight?
A2. Generally speaking, 30-40 excavator longest arm suggests to be 8 meters, can configure 0.1 cbm bucket, no need extra counterweight. 55 excavator longest arm suggests to be 12 meters, can configure 0.1-0.15 cbm bucket, need 0.5 ton extra counterweight. 60-80 excavator longest arm suggests to be 12 meters, can configure 0.15-0.25 cbm bucket, need 0.5-0.7 ton extra counterweight.
It is not recommended to extend boom arm to longest length as min excavator is easy to sloshing.



Q3: How long will it takes to install a excavator long reach boom?

It depends on the installer and machine size.
Usually disconnect the original boom arm, stick cylinder, then pin the new one is okay.
Kindly remind, prepare several containers to fill the oil before disassemble.
