Product Details:
|
| Warranty: | 3 Months Warranty | Type: | Excavator Trim Bucket， Mud Bucket |
|---|---|---|---|
| Material: | Q355B, NM400, HARDOX500 Optional | Condition: | 100% New & Never Used |
| Part Name: | Antiwear Blocks, Sidebar Protectors | Width, Spacing Size: | Customization |
| High Light: | Mud Ditch Cleaning Bucket,Excavator Ditch Cleaning Bucket,Q355B Material Excavator Rock Bucket |
||
click here to read our catalog:Zhonghe Machinery Catalog-Contact Sales Manager Aria Directly

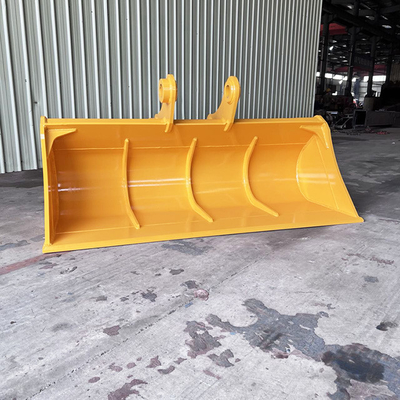

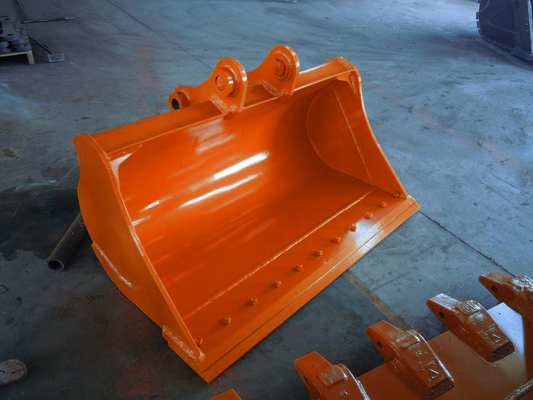

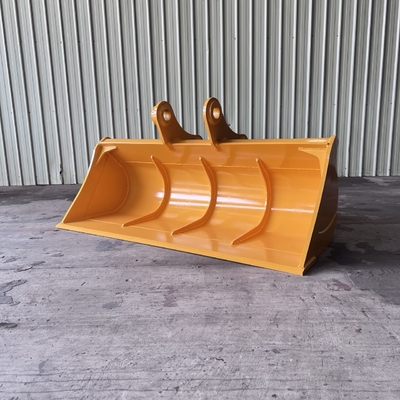

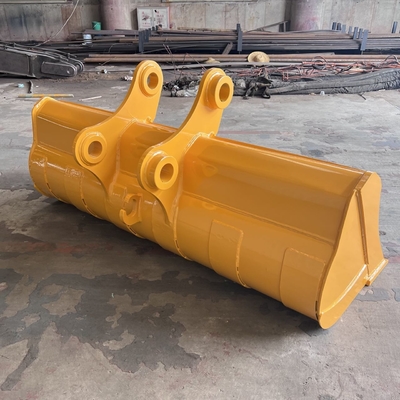

1. Overview: excavator mud bucket, also known as cleaning bucket, ditching bucket or trenching bucket. The mud bucket is suitable for plane trimming of slopes with large capacity and desilting of rivers and ditches. Key steps in the welding process and the welding quality will directly affect the structural strength and bucket service life.

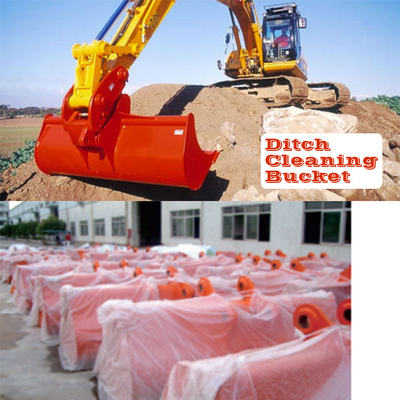

2. Applicable environment: Cleaning bucket is applicable to the trimming of slopes and other planes, as well as the large capacity dredging and cleaning of rivers and ditches. Basing on excavator cleaning bucket, the tilting bucket changes the tilt angle through oil cylinder, greatly improving the work efficiency

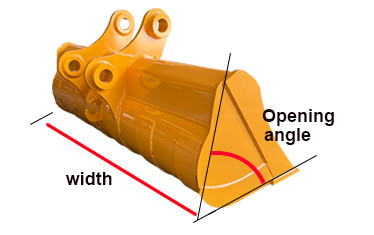

3. Bucket width and spacing size can be customized according to customers' requirement.
| Size | Model | Pin Diameter(mm) | Bucket Width(mm) | Capacity(litres) | weight |
| 1-2T | ZH-MINI | <35 | 900 | 0.1 | 94 |
| 3-4T | ZH-24 | 40 | 1200 | 0.16 | 184 |
| 5-7T | ZH-25 | 45 | 1200 | 0.2 | 220 |
| 8-11T | ZH-26 | 50-55 | 1500 | 0.33 | 297 |
| 12-18T | ZH-27A | 60/65/70 | 1500 | 0.6 | 478 |
| 1800 | 0.75 | 522 | |||
| ZH-27B | 1500 | 0.72 | 676 | ||
| 1800 | 0.8 | 750 | |||
| 19-24T | ZH-28A | 80 | 1800 | 0.91 | 842 |
| 2000 | 1.09 | 910 | |||
| ZH-28B | 1800 | 1.17 | 1150 | ||
| 2000 | 1.35 | 1214 | |||
| 25-30T | ZH-29 | 90 | 2000 | 1.46 | 1276 |
| 30-38T | ZH-30 | 90/100/110 | 2000 | 1.64 | 1600 |
| 2200 | 1.9 | 1760 | |||
| 40-50T | ZH-31 | 100/120 | 2200 | 2.4 | 2545 |
welcome to contact for more models!
◆The grading ditching bucket's width and spacing size can be customized.
◆Robust base plate

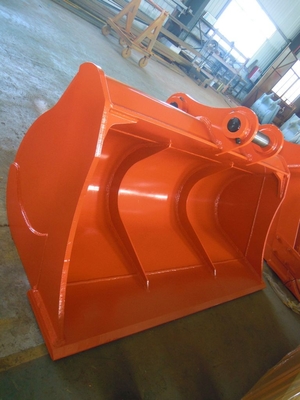

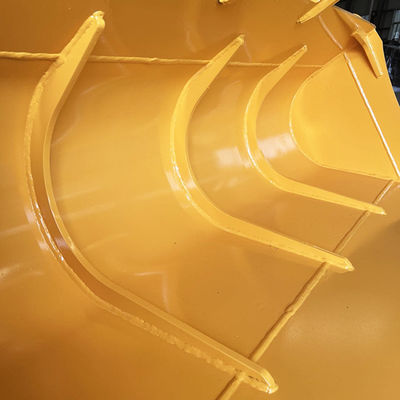

◆Reinforced ribs

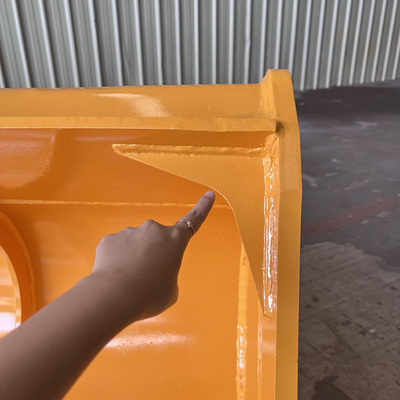

◆Multi-layer welding craft
◆Using high-strength materials, NM360,HARDOX500,Q355B optional
◆Separated plates design, load &unload easily
◆Horizontal widening and depth reducing improve its work efficiency
◆Double layers teeth base plate is optional.
1. Standard bucket
Q355B material, standard plate thickness, and China high-quality bucket tooth base. It is mainly applicable to light operation occasions such as excavation of general clay and loading of sand, soil and gravel.
2. Rock bucket:
Q355B material, NM400 optional. On the basis of the standard bucket, reinforcing plates are added at the bottom, and the tooth plate and side plate are thickened. It is mainly applicable to heavy and light industrial occasions such as excavation of hard soil and loading of soil, gravel and gravel mixed with soft sand.
3. Heavy duty rock bucket:
Q355B+Hardox500. On the basis of the reinforced bucket, the bottom plate and side plates are thickened. It is mainly applicable to the excavation of hard rocks, secondary hard rocks and wind fossils mixed in the soil; Loading of hard rock and ore after blasting.
4. Skeleton excavator bucket
5. Tilt bucket for mini excavator
6. Clamshell excavator bucket
7. Grading ditching bucket
8. Excavator Ripper
9. Excavator Log Grapple
GOOD SERVICE:
1. Online support within 24 hours.
2. Appointment video technical support.
(Our engineers have focused on excavator boom and attachment over 10 years)
3. Long excavator boom shall be two/three jointed pcs to make it fittable into container to save shipping cost.
WARRANTY
1 year for long reach boom, 180 days for cylinder and linkage, 90 days for bucket.
