Product Details:
|
| Type: | High Reach Demolition Boom For Clawer | Condition: | New&high Quality |
|---|---|---|---|
| Free Warranty: | 0.5 Year For Boom | After-sales Service Provided: | Online Quick Reply |
| Max Length: | 30m | Main Material: | Q355B, Q690D Are Optional |
| Application: | Building Demolition And Sepcial Engineering | Certification: | CE |
| High Light: | Q690D Demolition Excavator,Q355B Demolition Excavator,Bucket Cylinder Demolition Boom |
||
Catalogue ZH excavator boom arm.pdf
1. A 14000㎡ Workshop & Advanced Production Machines
2. 10+ Years Experienced High-tech R&D Team
3. Skillful Workers with 5+ Years Welding Experience
4. Professional Consultant for Custom-made
5. Quick Production Time within 7-20 Days
CE certification & Utility model patent certificates

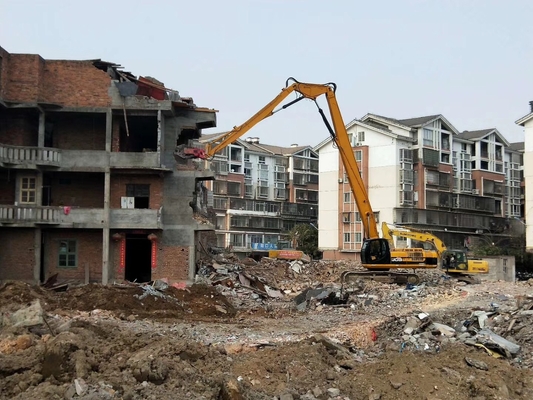

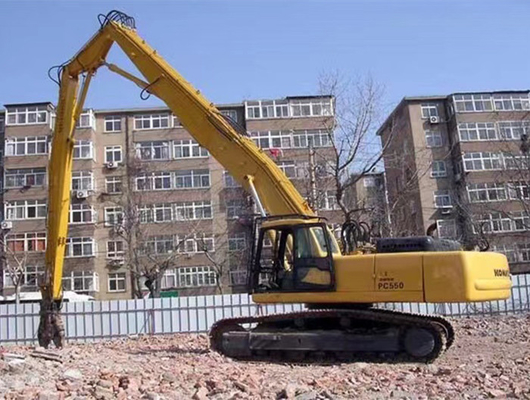

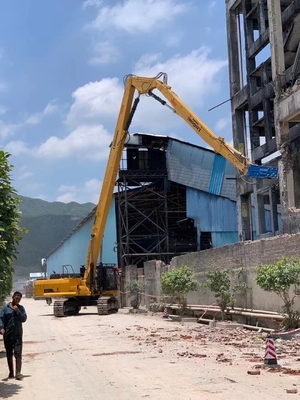

Compared with the excavator standard arm, the excavator demolition arm extends the upper and lower arms at the same time, but also adds a middle arm, which is specially designed to increase the safe distance between the cockpit and the working parts. Today, many countries consider explosive demolition to be dangerous and have tightened regulations. Especially between residential buildings can not apply for blasting demolition, therefore, the use of excavator demolition arm is a more simple and safe choice.
1. Q355B as default, Q690D optional.
2. Key Force-bearing Parts are Reinforced.
3. Welding is full and smooth.
4. Adopt national standard precision pipelines.
5. Boom bushing come with an alloy copper sleeve(with self-lubricating carbon powder inside).
6. Boom and sticks' angle can be opened to achive 180°
| Three-section Demolition Boom Accessories | |||
| name | Unit | mian material | warranty(day) |
| Boom | 1 | Q355B | 360 |
| Middle arm | 1 | Q355B | 360 |
| Arm | 1 | Q355B | 360 |
| Bucket | 1 | Q355B | 90 |
| 22 ton Bucket cylinder | 1 | — | 180 |
| Linkage assenbly | 1 | Q355B | 180 |
| Pin | 8 | 40Cr | 0 |
| High-pressure hose | 22 | 4 layers wire ring | 0 |
| Lubrication pipe | 5 | 1 layer wire ring | 0 |
| Shut-off valve | 10 | — | 0 |
| Excavator Ton | Total Length(mm) | (A)Transport Height(mm) | (B)Maximum Lifting Height(mm) | Limit weight of hydraulic shear(kg) | Cylinder(Ton) | Counterweight(Ton) |
| 25T | 16000 | 3160 | 14900 | 2000 | 20T | 4T |
| 30T | 18000 | 3300 | 17000 | 2000 | 20T | 4.5T |
| 35T | 20000 | 3300 | 19000 | 2000 | 20T | 4.5T |
| 40T | 22000 | 3400 | 21050 | 2000 | 20T | 5T |
| 45T | 24000 | 3400 | 23100 | 2000 | 20T | 5T |
