Short Production Time High Reach Excavator Boom , Wholesale Three Section Demolition Arm

Place of Origin China
Brand Name Zhonghe
Certification CE
Model Number CLB01
Minimum Order Quantity 1
Price Negotiate
Packaging Details Wooden case, bubble bag or iron frame support
Delivery Time 10-15 working days
Payment Terms T/T, discussion
Supply Ability 60 pcs per month
Product Details
Type High Reach Demolition Boom Condition Perfect New & Good
Warranty Half Year For Boom Counterweight Accordance
Main Material Q355B,Q690D,Q355B+Q690d Surface Finish Sand-blasted And Painted
OEM / OEM Support
High Light

High Reach Excavator Boom

,

Three Section Excavator Boom

,

24M Demolition Arm

Leave a Message
Product Description

Optional 18M 20M 24M 26M 28M 30M Excavator High Reach Boom , Three Section Demolition Arm



Catalogue ZH excavator boom arm.pdf



ZHONGHE MACHINERY'S ADVANTAGES



1. 14000㎡ Plant & Precision Production Machine



2. 10+ Years High-tech R&D Team & Advanced Simulation Software



3. 60 Experienced Production Workers with 5+ Years Experience



4. Professional Consultation and Customization



5. Short Production Time 7-20 days & 600 sets of Excavator Booms/Year



Short Production Time High Reach Excavator Boom , Wholesale Three Section Demolition Arm 0



CERTIFICATIONS



CE certification & Utility model patent certificatesShort Production Time High Reach Excavator Boom , Wholesale Three Section Demolition Arm 1

Short Production Time High Reach Excavator Boom , Wholesale Three Section Demolition Arm 2

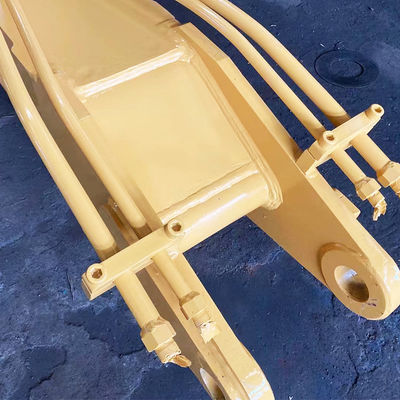

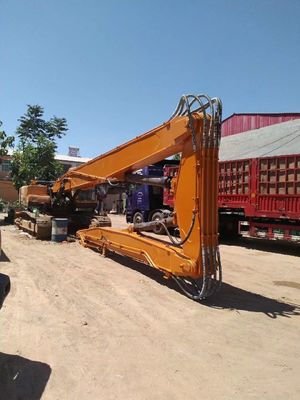

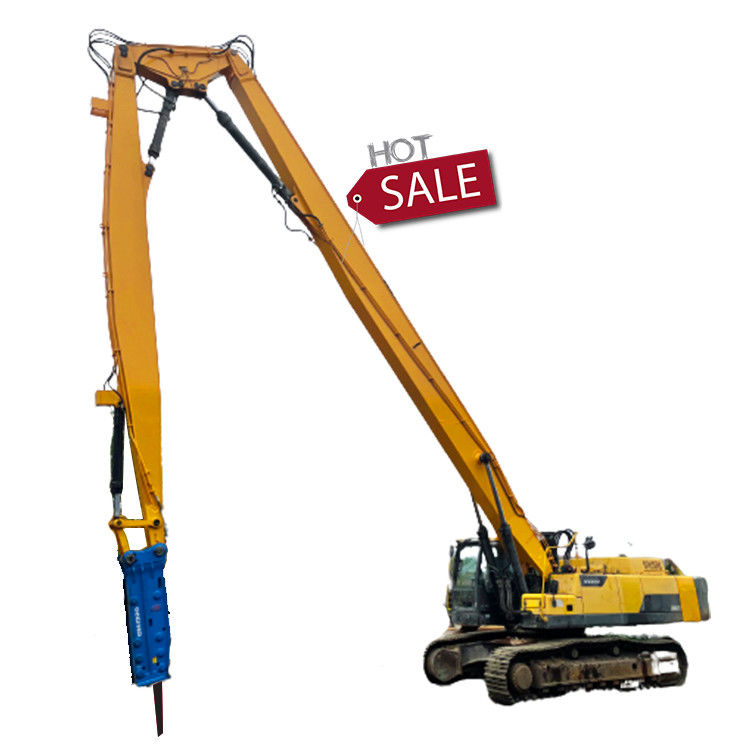

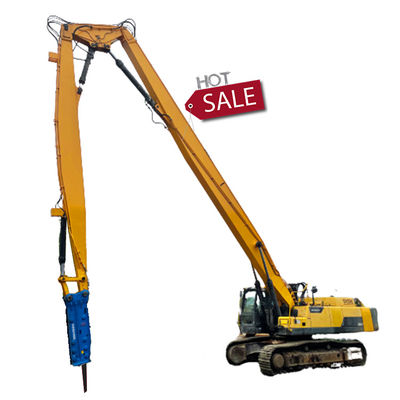

ZHONGHE excavator high reach demolition boom



The excavator demolition boom is specially designed to increase the safe distance between the cockpit and the working parts, which is designed to three sections generally by adding a middel arm.



The original manual excavation has the disadvantages of slow progress and high cost. The blasting demolition of buildings has high requirements on the surrounding environment, high risk factors for surrounding buildings, and is easy to loosen similar civil building structures. Therefore, it is a wise choice to use excavator demolition boom.



1. Mainly used for demolishing high buildings;
2. Made of high strength steel plate;
3. Completely match with the crusher;
4. Convenient for installation and detachment;
5. We can design and customize according to your requirements.



Short Production Time High Reach Excavator Boom , Wholesale Three Section Demolition Arm 3



Zhonghe excavator high reach demolition boom's advangtages



1. Q355B as default, Q690D optional.

2. Key Force-bearing Parts are Reinforced.
3. Welding is full and smooth.
4. Adopt national standard precision pipelines.
5. Boom bushing come with an alloy copper sleeve(with self-lubricating carbon powder inside).

6. Boom and sticks' angle can be opened to achive 180°

Short Production Time High Reach Excavator Boom , Wholesale Three Section Demolition Arm 4

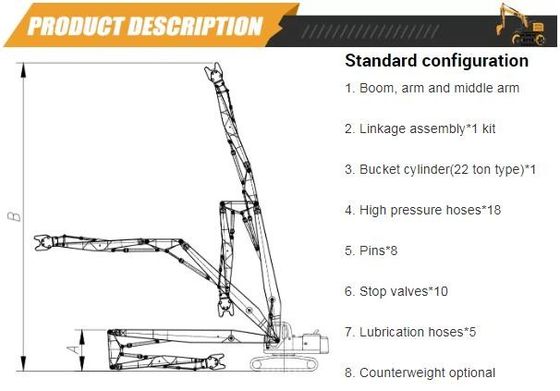

ZHONGHE excavator high reach boom configuration



Three-section Demolition Boom Accessories
name Unit mian material warranty(day)
Boom 1 Q355B 360
Middle arm 1 Q355B 360
Arm 1 Q355B 360
Bucket 1 Q355B 90
22 ton Bucket cylinder 1 180
Linkage assenbly 1 Q355B 180
Pin 8 40Cr 0
High-pressure hose 22 4 layers wire ring 0
Lubrication pipe 5 1 layer wire ring 0
Shut-off valve 10 0

Short Production Time High Reach Excavator Boom , Wholesale Three Section Demolition Arm 5

The specification of excavator high reach arm demolition

Excavator Ton Total Length(mm) (A)Transport Height(mm) (B)Maximum Lifting Height(mm) Limit weight of hydraulic shear(kg) Cylinder(Ton) Counterweight(Ton)
25T 16000 3160 14900 2000 20T 4T
30T 18000 3300 17000 2000 20T 4.5T
35T 20000 3300 19000 2000 20T 4.5T
40T 22000 3400 21050 2000 20T 5T
45T 24000 3400 23100 2000 20T 5T



Short Production Time High Reach Excavator Boom , Wholesale Three Section Demolition Arm 6

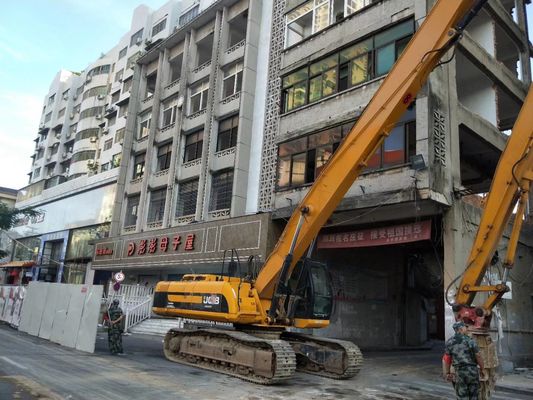

Case of construction



Short Production Time High Reach Excavator Boom , Wholesale Three Section Demolition Arm 7

Short Production Time High Reach Excavator Boom , Wholesale Three Section Demolition Arm 8



Company profile



Short Production Time High Reach Excavator Boom , Wholesale Three Section Demolition Arm 9

Short Production Time High Reach Excavator Boom , Wholesale Three Section Demolition Arm 10
