Product Details:
|
| Warranty: | 3 Months | Application: | Excavator, Crawler |
|---|---|---|---|
| Type: | Excavator Tilting Bucket | Main Material: | Q355B, NM400, Hardoc500 Optinal |
| Bucket Capacity: | 0.62-1.4 Cbm | Cylinder: | 1 / 2 Pieces |
| Pin: | 5 | High Pressure Hose: | 4 |
| High Light: | 1.4 cbm Excavator Tilt Bucket,ZX300 Tilt Excavator Bucket,CAT320 Excavator Tilt Bucket |
||
Catalogue ZH excavator boom arm.pdf
1. 14000㎡ Workshop with Precision Equipments
We has more than 14000㎡ steel structure standard workshop with a large number of high precision processing equipments.
2. High-tech R&D Team
We use precision drawing software to achieve the max working range under the premise of safe operation.
3. Experienced Workers
There are more than 60 skillful staffs, 30 welding workers with over 5 years welding experience.
4. Customization
(1)Match all brand excavator.
(2)Color, length, material can do according to you.
(3)Extra pipeline can be added to suit to some extra application.
5. Prompt Lead Time
(1)Our lead time is 7-15 days.
(2)Our annual output of various types of excavator boom arms can reach 600 sets.
6. Excellent Service
(1)24 hours online service.
(2)Can make an appointment for technical video support.
CE certification & Utility model patent certificates

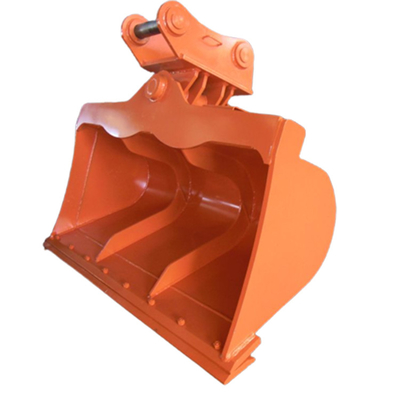

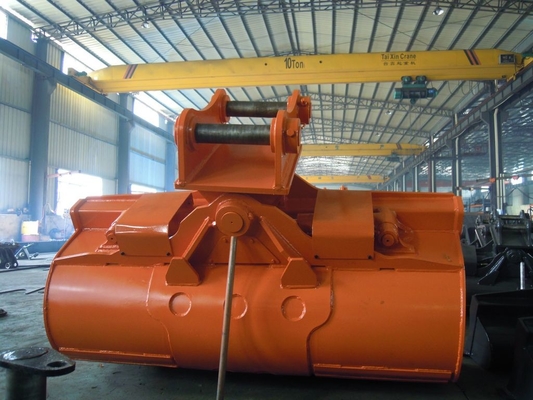

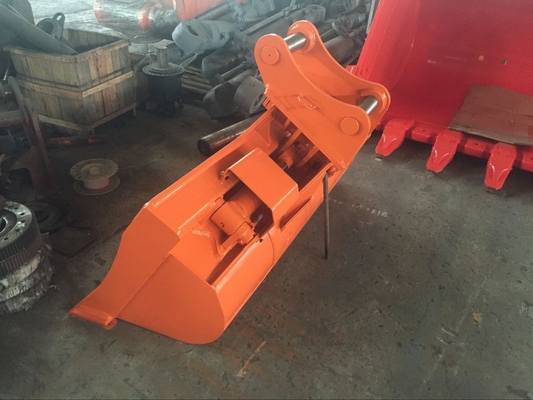

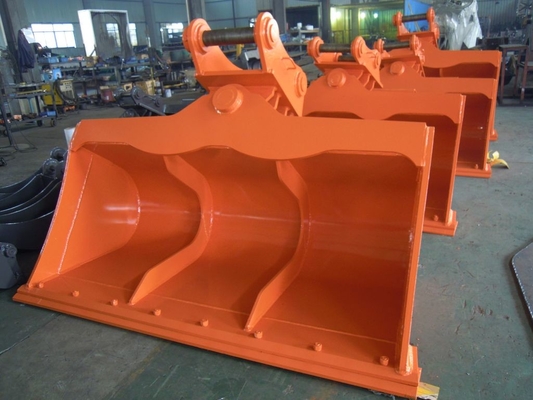

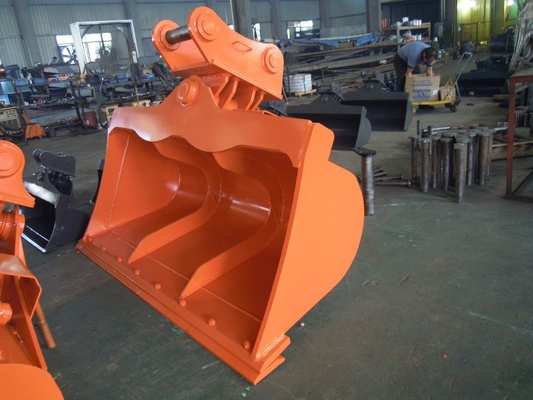

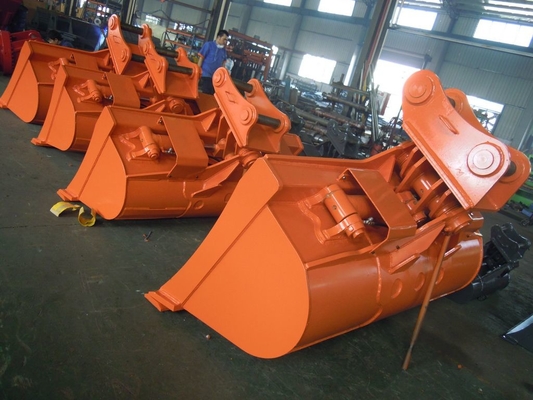

◆The tilting bucket not only has the function of cleaning the bucket but also can control the rotation angle of the bucket through the connecting rod oil cylinder. The oblique excavation can be carried out without changing the position of the excavator, which can meet the requirements of different working conditions and greatly facilitate dredging, slope excavation, ditch excavation, and other operations.
◆ Using high-strength materials, it is suitable for various models of 4~30 tons.
◆ The tiltable angle is +/- 26 degrees, it can be customized if a larger tilting angle is needed.
| Excavator weight (ton) | Bucket capacity(cbm) | N.W.(kg) |
| 3-5 | 0.2 | 310 |
| 6-10 | 0.3 | 320 |
| 11-16 | 0.6 | 740 |
| 17-20 | 0.75 | 920 |
| 21-24 | 0.8 | 1000 |
1. Standard bucket
Q355B material, standard plate thickness, and China high-quality bucket tooth base. It is mainly applicable to light operation occasions such as excavation of general clay and loading of sand, soil, and gravel.
2.Rock bucket
Q355B material, NM400 optional. On the basis of the standard bucket, reinforcing plates are added at the bottom, and the tooth plate and side plate are thickened. It is mainly applicable to heavy and light industrial occasions such as the excavation of hard soil and loading of soil, gravel, and gravel mixed with soft sand.
3. Heavy duty rock bucket:
Q355B+Hardox500. On the basis of the reinforced bucket, the bottom plate and side plates are thickened. It is mainly applicable to the excavation of hard rocks, secondary hard rocks and wind fossils mixed in the soil and; Loading of hard rock and ore after blasting.
