Product Details:
|
| Warranty: | 1 Year | Color: | Optional |
|---|---|---|---|
| Application: | Crawler Excavator | Type: | Excavator Long Reach Arm And Boom |
| Main Material: | Q355B | After-sales Service Provided: | Online Support |
| Condition: | 100%new | Maximum Length: | 26m |
| Weight: | 4100kgs - 4500kgs | Bucket Capacity(m3): | 0.6 Cbm |
| High Light: | Komatsu Excavator Boom Arm,Sany Excavator Boom Arm,26m Excavator Hitachi Long Arm |
||
Catalogue ZH excavator boom arm.pdf

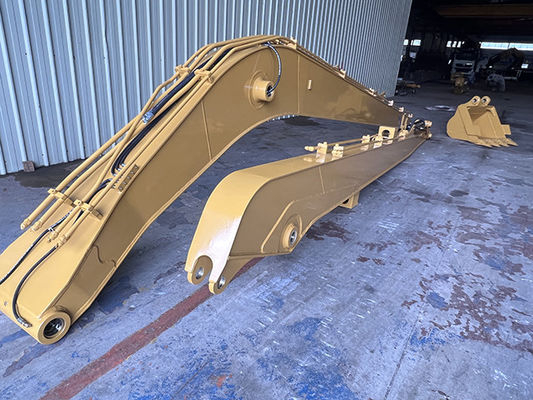

Introduction of Zhonghe Excavator Long Reach Arm
ZHONGHE manufacture high-strength excavator booms and arms for high reach demolition excavators and long reach excavators up to 120 tons.
We engineer long reach equipment and ultra high demolition booms to suit your excavator model, working distance, attachment requirements, and specific site conditions.
Built with high-strength, light structural steel and heavy duty components, ZHONGHE long arm excavator booms are used in a versatile range of applications. Including marine construction, surface mining, slope stabilization, demolition of buildings and structures, and other specialist works where maximum reach, height and depth is required.
Checked for structural integrity at every stage of production, we ensure that every long arm boom meets stringent in-house quality assurance and CE standards.
FIRST--Less maintaince and sturdy
1. plasma cutting, machine milling, robot welding, boring after welding, assembly line production operation, and better quality assurance.
2 It can be customized according to the working conditions to meet the construction needs of different users.
3. The opening angle of the large and small arms can reach 163 degrees, and the excavation radius and height are larger.
SECOND--CORE DESIGN TECHNOLOGY
1. Tolerance within 5-10um
Hole drilling tolerance is within 5-10um, ensure the accuracy.
2. High work efficiency and save fuel
Lighter while taking into account the quality, it not only ensures work efficiency but also saves fuel.
Sumilation parameters of ZH long reach attachments
| Excavator Ton | Total Length(mm) | (A)Boom (mm) |
(B)Arm (mm) |
Maximum Digging Radius(mm) | Maximum Digging Depth(mm) | Maximum Unloading Height(mm) | Maximum Digging Height(mm) | Bucket Volume(cbm) | Cylinder(ton) |
| 11-15T | 13000 | 7250 | 5750 | 11200 | 9000 | 7550 | 9350 | 0.15-0.3 | 12T |
| 20-25T | 15400 | 8220 | 7180 | 14500 | 11300 | 10400 | 12600 | 0.4-0.6 | 12T |
| 20-30T | 18000 | 10000 | 8000 | 17300 | 13000 | 11800 | 14000 | 0.4-0.7 | 12T |
| 35-40T | 20000 | 11000 | 9000 | 19200 | 14900 | 12900 | 15200 | 0.6-1.2 | 12T |
| 40-45T | 22000 | 12000 | 10000 | 21300 | 16000 | 14000 | 17000 | 0.5-1 | 20T |
| 40-50T | 24000 | 13000 | 11000 | 23000 | 17900 | 15200 | 18100 | 0.5-1.1 | 20T |
GOOD SERVICE:
1. Online support within 24 hours.
2. Appointment video technical support.
(Our engineers have focused on excavator boom and attachment over 10 years)
3. Long excavator boom shall be two/three jointed pcs to make it fittable into container to save shipping cost.
WARRANTY
1 year for long reach boom, 180 days for cylinder and linkage, 90 days for bucket.
6. Hydraulic grabs for excavators
Q1: Why not have boom and stick cylinders in the plan?
A1: First, the whole long arm is lengthening, but the boom just lengthening from its middel sleeve to its end, so the original boom and stick cylinder can be used. Second, using the original parts can save your cost.
Q2: How long is the boom arm can min excavator be be configured with? Whether it is necessary to increase the counterweight?
A2. Generally speaking, 30-40 excavator longest arm suggests to be 8 meters, can configure 0.1 cbm bucket, no need extra counterweight. 55 excavator longest arm suggests to be 12 meters, can configure 0.1-0.15 cbm bucket, need 0.5 ton extra counterweight. 60-80 excavator longest arm suggests to be 12 meters, can configure 0.15-0.25 cbm bucket, need 0.5-0.7 ton extra counterweight.
It is not recommended to extend boom arm to longest length as min excavator is easy to sloshing.
Please do not hesitate to contact us for any details, Thank you!
