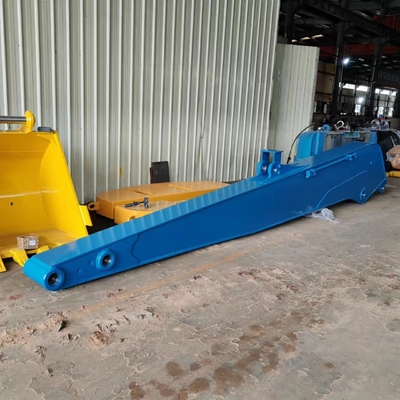

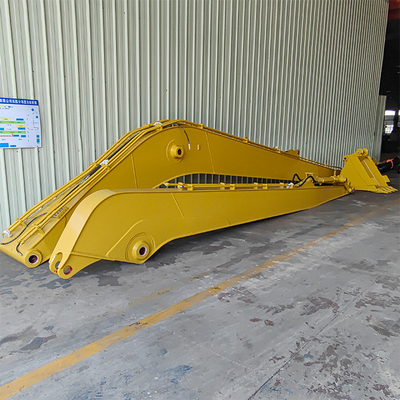

Multipurpose 10m-12m Long Reach Arm , PC80 EX60 Excavator Boom Stick

Place of Origin China
Brand Name Zhonghe
Certification CE
Model Number 10m
Minimum Order Quantity 1
Price CNY 32400-36000/Unit EXW
Packaging Details Wooden case or bubble bag
Delivery Time 10-15 working days
Payment Terms T/T, discussion
Supply Ability 60 pcs per month
Product Details
Condition 100%new Warranty 1 Year Long Reach Boom & Arm
After-sales Service Provided Online Support Bucket Capacity 0.3cbm
Moving Type Crawler Excavator Machine Weight 10-16T
Color Customer's Request Material Q355B
High Light

Multipurpose Long Reach Arm

,

PC80 Long Reach Arm

,

EX60 Excavator Boom Stick

Leave a Message
Product Description

Hot sale 10ton-16ton 10m-12m long boom excavator high quality excavator long reach boom arm for PC80 EX60

Catalogue ZH excavator boom arm.pdf



Description of Excavator Long Boom


1. High material: the mini excavator long arm's main material is Shaogang Q355B, the hydraulic pipe is national standard seamless, the pins are 40MuCr, the high-pressure hose is made of 4 layers steel rings, the butter pipe is a single-layer hose, and the bush driven into the base of the boom is graphite alloy copper sleeve.

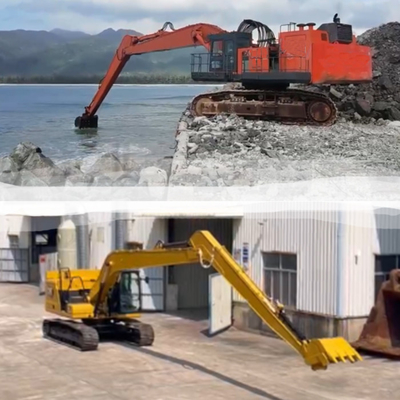

2. Working conditions applicable to the lengthening arm: Municipal Engineering, subway construction, river dredging, reservoir cleaning and other water conservancy projects.

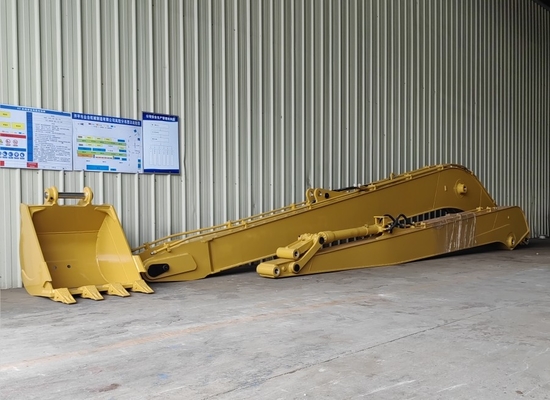

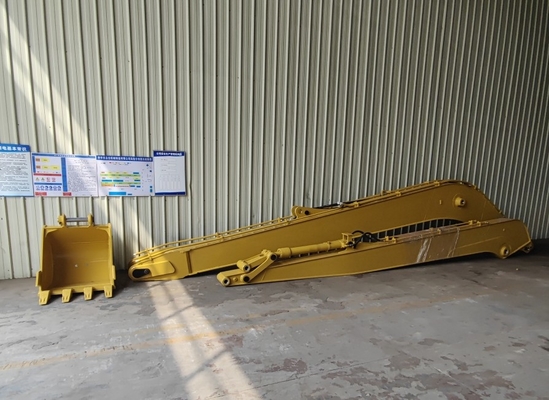

Multipurpose 10m-12m Long Reach Arm , PC80 EX60 Excavator Boom Stick 0

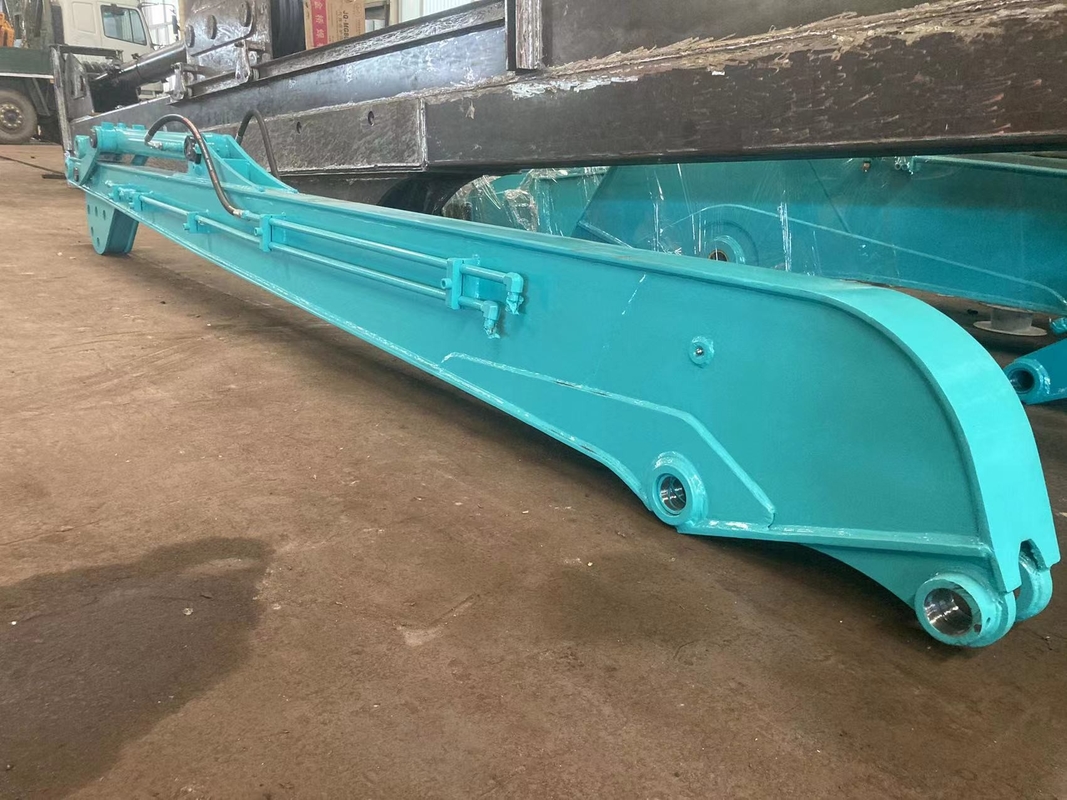

Product advantages for excavator dipper extension



FIRST--Less maintaince and sturdy



1. plasma cutting, machine milling, robot welding, boring after welding, assembly line production operation, and better quality assurance.

2 It can be customized according to the working conditions to meet the construction needs of different users.

3. The opening angle of the large and small arms can reach 163 degrees, and the excavation radius and height are larger.

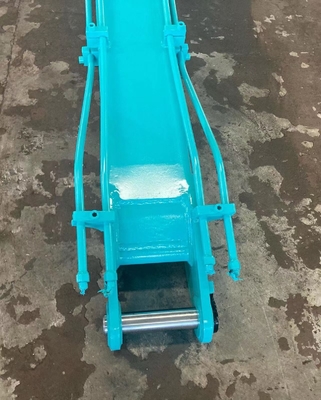

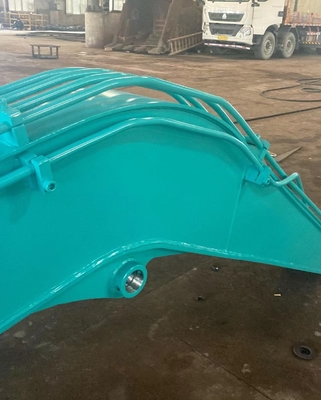

Multipurpose 10m-12m Long Reach Arm , PC80 EX60 Excavator Boom Stick 1

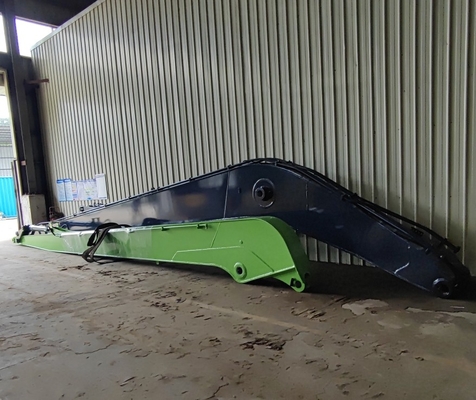

SECOND--CORE DESIGN TECHNOLOGY


1. Tolerance within 5-10um

Hole drilling tolerance is within 5-10um, ensure the accuracy.
2.
High work efficiency and save fuel

Lighter while taking into account the quality, it not only ensures work efficiency but also saves fuel.

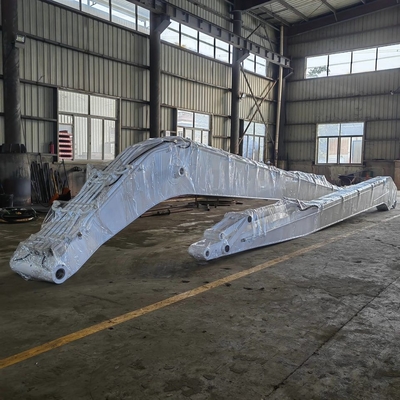

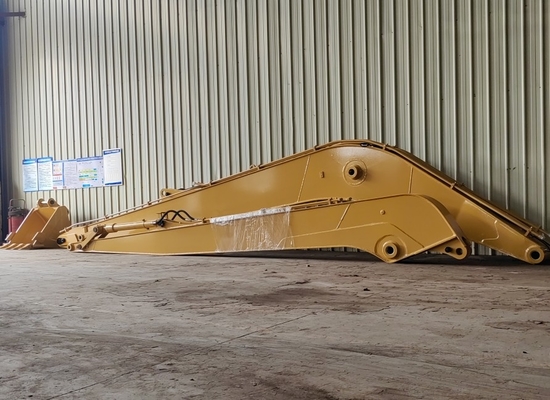

Multipurpose 10m-12m Long Reach Arm , PC80 EX60 Excavator Boom Stick 2

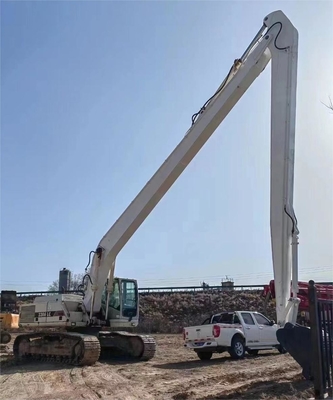

Sumilation parameters of ZH long reach attachments



Excavator Ton Total Length(mm) (A)Boom
(mm)
(B)Arm
(mm)
Maximum Digging Radius(mm) Maximum Digging Depth(mm) Maximum Unloading Height(mm) Maximum Digging Height(mm) Bucket Volume(cbm) Cylinder(ton)
11-15T 13000 7250 5750 11200 9000 7550 9350 0.15-0.3 12T
20-25T 15400 8220 7180 14500 11300 10400 12600 0.4-0.6 12T
20-30T 18000 10000 8000 17300 13000 11800 14000 0.4-0.7 12T
35-40T 20000 11000 9000 19200 14900 12900 15200 0.6-1.2 12T
40-45T 22000 12000 10000 21300 16000 14000 17000 0.5-1 20T
40-50T 24000 13000 11000 23000 17900 15200 18100 0.5-1.1 20T

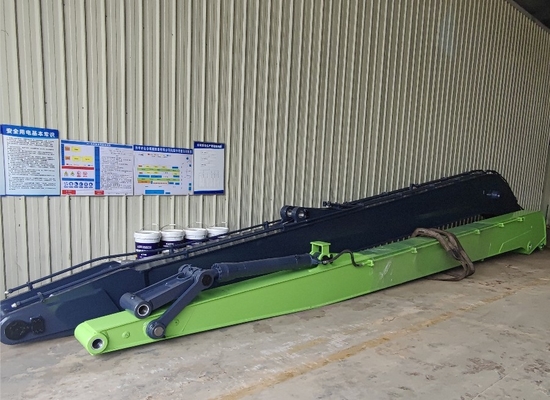

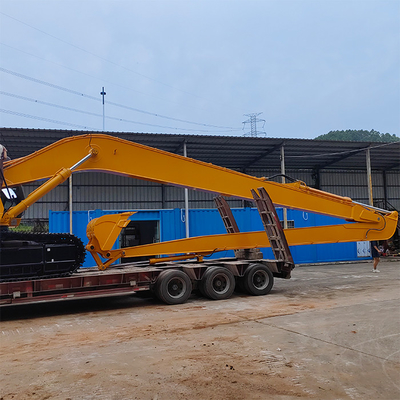

Multipurpose 10m-12m Long Reach Arm , PC80 EX60 Excavator Boom Stick 3

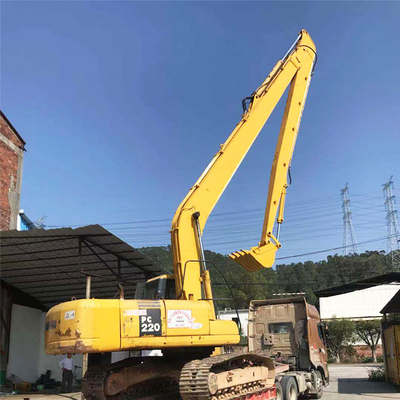

Advangtages of ZHONGHE MACHINERY



GOOD SERVICE:

1. Online support within 24 hours.

2. Appointment video technical support.

   (Our engineers have focused on excavator boom and attachment over 10 years)

3. Long excavator boom shall be two/three jointed pcs to make it fittable into container to save shipping cost.



WARRANTY

1 year for long reach boom, 180 days for cylinder and linkage, 90 days for bucket.

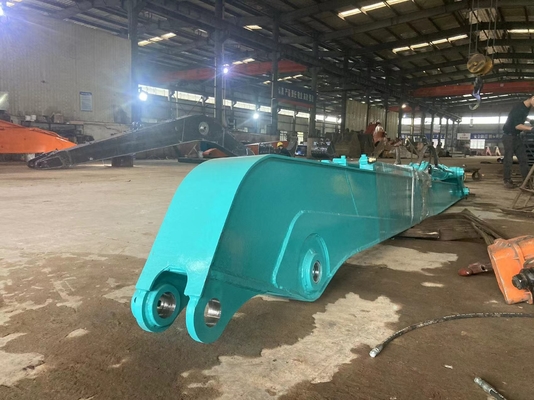

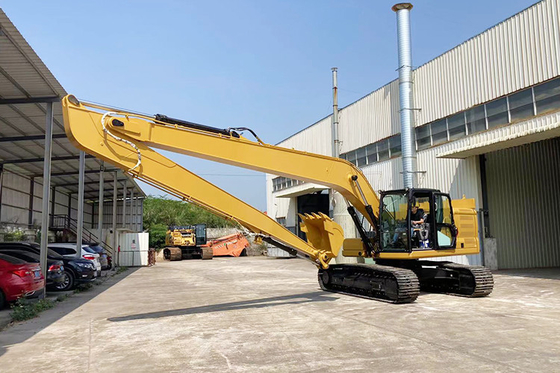

Multipurpose 10m-12m Long Reach Arm , PC80 EX60 Excavator Boom Stick 4



Recommended Excavator Attachments


1. Long reach excavator boom

2. Excavator telescopic boom

3. Demolition boom

4. Excavator rock bucket

5. Excavator tilting bucket

6. Hydraulic grabs for excavators

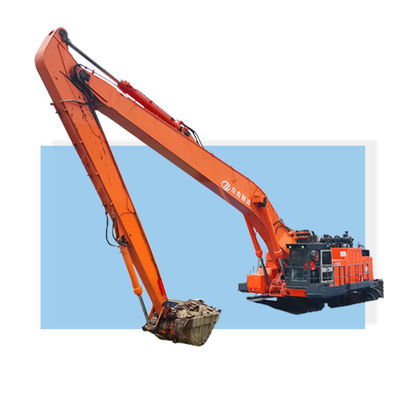

FAQ of Long Reach Excavator Boom



Q1: Why not have boom and stick cylinders in the plan?
A1: First, the whole long arm is lengthening, but the boom just lengthening from its middel sleeve to its end, so the original boom and stick cylinder can be used. Second, using the original parts can save your cost.



Q2: How long is the boom arm can min excavator be be configured with? Whether it is necessary to increase the counterweight?
A2. Generally speaking, 30-40 excavator longest arm suggests to be 8 meters, can configure 0.1 cbm bucket, no need extra counterweight. 55 excavator longest arm suggests to be 12 meters, can configure 0.1-0.15 cbm bucket, need 0.5 ton extra counterweight. 60-80 excavator longest arm suggests to be 12 meters, can configure 0.15-0.25 cbm bucket, need 0.5-0.7 ton extra counterweight.
It is not recommended to extend boom arm to longest length as min excavator is easy to sloshing.

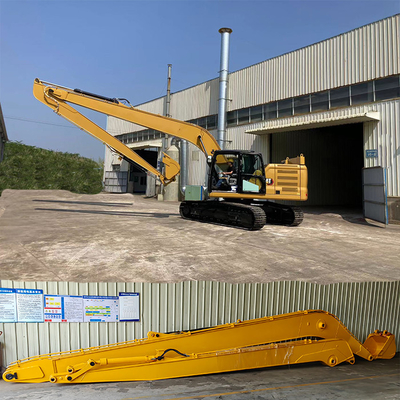

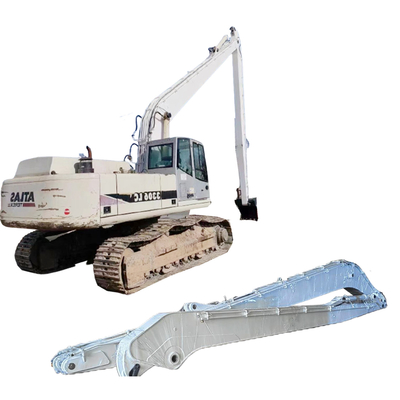

Multipurpose 10m-12m Long Reach Arm , PC80 EX60 Excavator Boom Stick 5



Company profile

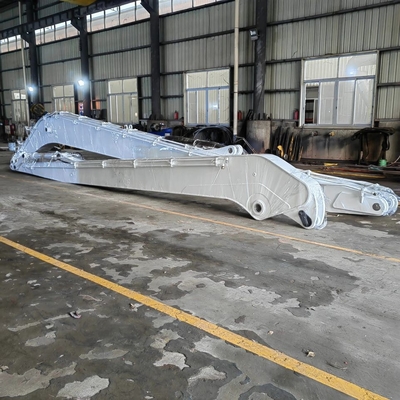

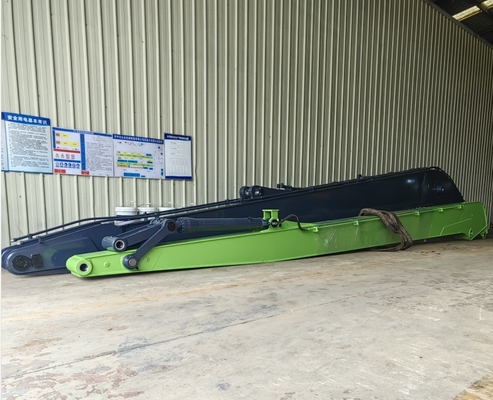

Multipurpose 10m-12m Long Reach Arm , PC80 EX60 Excavator Boom Stick 6Multipurpose 10m-12m Long Reach Arm , PC80 EX60 Excavator Boom Stick 7

CERTIFICATIONS



Multipurpose 10m-12m Long Reach Arm , PC80 EX60 Excavator Boom Stick 8



TOP PICKS



Multipurpose 10m-12m Long Reach Arm , PC80 EX60 Excavator Boom Stick 9

Multipurpose 10m-12m Long Reach Arm , PC80 EX60 Excavator Boom Stick 10Multipurpose 10m-12m Long Reach Arm , PC80 EX60 Excavator Boom Stick 11

Multipurpose 10m-12m Long Reach Arm , PC80 EX60 Excavator Boom Stick 12



Please do not hesitate to contact us for any details, Thank you!
