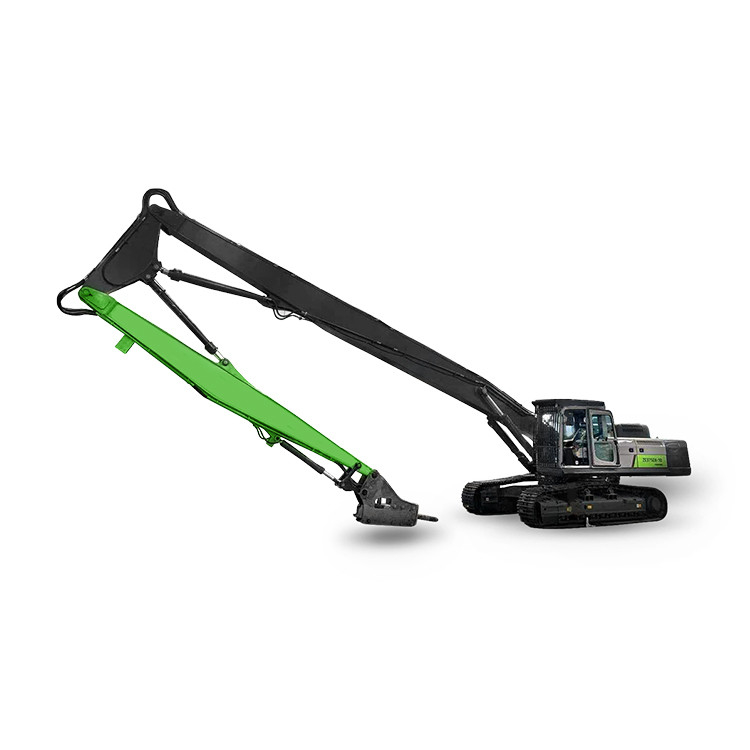

Q345B High Reach Demolition Boom

Q345B High Reach Demolition Boom
Q345B High Reach Demolition Boom
Q345B High Reach Demolition Boom Q345B High Reach Demolition Boom Q345B High Reach Demolition Boom Q345B High Reach Demolition Boom Q345B High Reach Demolition Boom Q345B High Reach Demolition Boom Q345B High Reach Demolition Boom

Large Image :  Q345B High Reach Demolition Boom

Product Details:
Place of Origin: China
Brand Name: ZHONGHE
Certification: CE
Model Number: 25-60T
Payment & Shipping Terms:
Minimum Order Quantity: 1set
Price: 12089$-23507
Packaging Details: Plastic wrap and bubble wrap packing
Delivery Time: 15`20days
Payment Terms: T/T
Supply Ability: 50set one month

Q345B High Reach Demolition Boom

Description
Color: As Customer Requires Material: Q345b
Application: Building Demolition And Sepcial Engineering Warranty: 6 Months
Type: Standard Size: For Excavator Model
High Light:

Q345B High Reach Demolition Boom

,

Steel High Reach Demolition Boom

,

Antiwear Hyundai Long Boom

Reinforced Demolishing Machine Parts Excavator High Reach Demolition Long Boom and Arm with Q690D High strength steel



Our advantage:

01 Use Q355B material,
02 Adopts precision steel pipeline
03 Adopt alloy copper sleeve big arm base
04 Two layers groove welded to ensure
05 Double quality inspection before leaving
06 The tolerance of position size within 1 mm
07 Angle of boom and arm can reach 163°



Use:

Suitable working conditions for building demolition arm: urban village reconstruction, building demolition, old factory building reconstruction, high-rise demolition project, etc.



Material:

Sheet material is Q355B, the hydraulic steel pipes are Cold drawn seamless steel pipe, the pin material is 40Cr, the high pressure hose is joint venture pipe with 4 layers of wire coil, the butter pipe is single layer hose, and the bushing into the large arm base is graphite alloy copper sleeve.



Product Parameter:

Excavator Ton Total Length(mm) (A)Transport Height(mm) (B)Maximum Lifting Height(mm) Limit weight of hydraulic shear(kg) Cylinder(Ton) Counter weight(Ton)
25T 16000 3160 14900 2000 20T 4T
30T 18000 3300 17000 2000 20T 4.5T
35T 20000 3300 19000 2000 20T 4.5T
40T 22000 3400 21050 2000 20T 5T
45T 24000 3400 23100 2000 20T 5T
