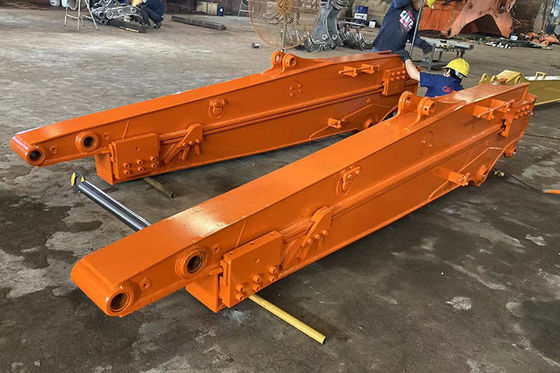

ZHONGHE 10M Excavator Sliding Arm suitable For Hitachi Zx135us-6

Place of Origin China
Brand Name ZHONGHE
Certification CE
Model Number 10-12T
Minimum Order Quantity 1set
Price 6865$
Packaging Details Plastic wrap and bubble wrap packing
Delivery Time 15`20days
Payment Terms T/T
Supply Ability 50set one month
Product Details
Material Q355B Colour Custom
Weight 1600 Length 8
Maximum Working Length Of Arm 5700 Bucket Volume 0.2-0.3CBM
High Light

Excavator Sliding Arm 10M

,

0.2CBM Excavator Sliding Arm

,

0.3CBM Excavator Sliding Arm

Leave a Message
Product Description

Excavator sliding arm for zx135us heavy equipment hight quality for HITACHI KOMATSU KOBELCO KATO DOOSAN KUBATO VOLVO CASE



Video show of excavator sliding arm zx135us



ZHONGHE 10M Excavator Sliding Arm suitable For Hitachi Zx135us-6 0





Product presentation of hitachi excavator​ sliding arm excavator zx135us-3:

I. Mining capacity of telescopic boom



The front bucket of the 12-14 meter telescopic arm is 0.45 square bucket, which is designed according to the size of the front arm horse-drawn head of PC120 excavator, and has the digging capacity of 96kn. The 14m telescopic arm can dig down to the excavation depth of 13.8m, which is one meter larger than the excavation depth of the 18m extended arm modified by the same type, and the overall working efficiency is higher than that of the extended arm.



Two. Telescopic boom manufacturing process



In order to make the 20-ton excavator can lift the telescopic arm of 14 meters, we have made a breakthrough by using Baosteel 700 material to process the box structure of the telescopic arm, and the rest of the parts are made of Q355B material. Telescopic arm box bending treatment, do not carry out four sides of the welding process. The design structure of the telescopic boom is domestic design. The design of the bucket cylinder is different from that of most domestic telescopic manufacturers. This design scheme makes the excavation of the telescopic boom stronger.



Excavator Ton (A)Maximum working Length of arm (B)Maximum digging height (C)Maximum digging radius(mm) Bucket Volume(cbm) Counter Weight(Ton)
12-15T 5700 8000 10400 0.2-0.3
20-25T 9150 10100 13000 0.4-0.7
20-25T 11000 12300 15200 0.4-0.7 1-2T
30-35T 11000 12000 15800 0.6-0.9
40-45T 12100 16000 19200 0.8-1.3
