Our production process:
1. The extended arm plate is precision-cut using a plasma cutting needle to ensure accuracy.
2. Before welding, the plate edges are milled (tapered) using a large edge milling machine. This allows for deep penetration of the weld into the steel plate, enhancing the overall performance of the structure.
3. Flaw detection tests are conducted using specialized instruments after welding.
4. After welding, a double-sided large-scale floor-standing boring machine is employed for precision boring. This ensures the long-reach arm concentricity during operation and extends its service life.
5. Following grinding, a sandblasting process is carried out to achieve a specific level of roughness and cleanliness on the long arms. This enhances their strength, hardness, and corrosion resistance.
Precision:
1. Tolerance within 5-10um

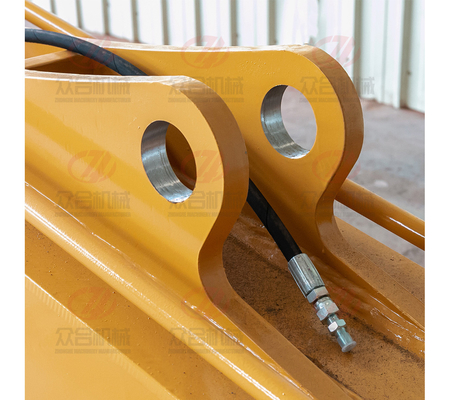

Hole drilling tolerance is within 5-10um, ensure accuracy.
2. Reach deeper and higher
The max work range and the max digging height are larger as the angle of the boom and arm can reach 163 degrees.
3. High work efficiency and saving fuel
Lighter while taking into account the quality, not only ensures work efficiency but also saves fuel.
Technical staff:
Our chief engineers have experience customizing different kinds of long stick excavators over 10 years.
We have customized more than 100 heavy-duty long excavator booms for powerful excavators (crawler or floating platform), like EX2500, EX1200, EX1900, and SY980.
Advantages of ZHONGHE Excavator Long Arm
| Excavator (ton) |
Total Length(mm) |
(A)Boom
(mm) |
(B)Arm
(mm) |
Maximum Digging Radius(mm) |
Maximum Digging Depth(mm) |
Maximum Unloading Height(mm) |
Maximum Digging Height(mm) |
Bucket Volume(cbm) |
Cylinder
(ton)
|
| 11-15T |
13000 |
7250 |
5750 |
11200 |
9000 |
7550 |
9350 |
0.15-0.3 |
12T |
| 20-25T |
15400 |
8220 |
7180 |
14500 |
11300 |
10400 |
12600 |
0.4-0.6 |
12T |
| 20-30T |
18000 |
10000 |
8000 |
11800 |
13000 |
17200 |
14000 |
0.4-0.7 |
12T |
| 35-40T |
20000 |
11000 |
9000 |
19200 |
14900 |
12900 |
15200 |
0.6-1.2 |
12T |
| 40-45T |
22000 |
12000 |
10000 |
21300 |
16000 |
14000 |
17000 |
0.5-1 |
20T |
| 40-50T |
24000 |
13000 |
11000 |
23000 |
17900 |
15200 |
18100 |
0.5-1.1 |
20T |

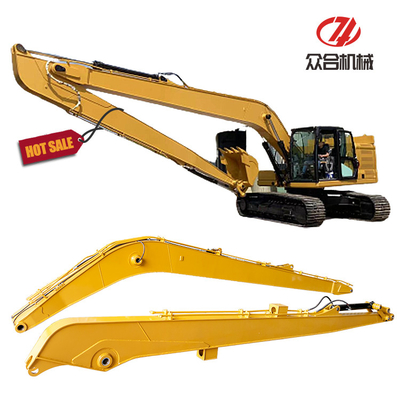

Long Reach Booms fit most market models, Including but not limited to
-
Komatsu Excavator Model: PC160LC-8, PC200, PC210, PC228, PC220 PC270, PC300, PC350, PC450, PC600, PC850, PC1250
-
CAT Excavator Model: CAT320, CAT323, CAT326, CAT329, CAT330, CAT335, CAT336, CAT349, CAT352, CAT374, CAT390
-
Hitachi Excavator Model: ZX210, EX200, EX220, EX330, EX350, ZX200, ZX240, ZX330, EX350, EX400, ZX470, ZX670, ZX870, EX1200, EX1900
-
Volvo Excavator Model: EC220, EC235, EC250, EC300, EC350, EC355, EC380, EC480, EC750
-
Doosan Excavator Model: DX225, DX235, DX255, DX300, DX350, DX420, DX490, DX530, DX800
-
Kobelco Excavator Model: SK200, SK210, SK220, SK250, SK260, SK300, SK330, SK350, SK380, SK460, SK500, SK850
-
Sumitomo Excavator Model:?SH210, SH225, SH240, SH300, SH330, SH350, SH460, SH480, SH500, SH700, SH800
-
Hyundai Excavator Model: R200, R210, R220, R290, HX220, HX235, HX260, HX300, HX330, HX380, HX430, HX480, HX520, R1200
CERTIFICATIONS (CE certification & Utility model patent certificates)
Who we are

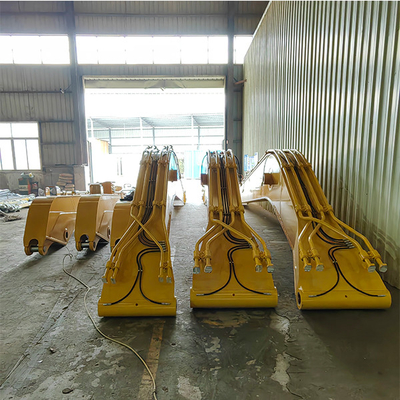

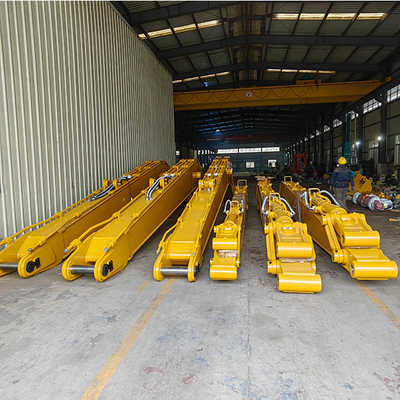

Kaiping Zhonghe Machinery Manufacturing Co., Ltd, a manufacturing and trading company, specializes in the customization of various types of excavator boom arms and attachments. Our facilities include a steel structure standardization workshop spanning over 14,000 square meters, equipped with a wide range of high precision processing equipment, and supported by a strong and cohesive team. Currently, we have over 60 experienced technical staff, 30 skilled welding workers with more than 7 years of experience, 15 senior designers, and a dedicated high-tech R&D team. Our annual production capacity for various types of excavator boom arms reaches 6000 sets.
We are committed to delivering products of high quality and competitive prices, which have gained popularity in over 40 countries and regions. Embracing the principles of "Merit Quality, Sincerity Management, and Customer Satisfaction," we extend our sincere welcome to customers from both domestic and international markets to engage in negotiations and collaboration with us.
TOP PICKS
1. Long-reach excavator boom
2. Excavator telescopic boom
3. Demolition boom
FAQ of Long Reach Excavator Boom
Q: Are you a manufacturer?
A: Zhonghe machinery offered a wide range of attachment parts for excavators and dozers. Such as long reach arm, demolition arm, telescopic arm, standard bucket, rock bucket, cleaning bucket, tilting bucket, etc. We know that the perfect combination of high-quality cast steel products and a moderate price is the key to success.
Q: Why choose Zhonghe over any other companies?
A: We have a professional production team and design team to provide each customer with high-quality and personalized customer service to ensure correctness, so we have good reputation in China, and our annual sales are among the best in our country.
Q: What can I get from you?
A: 1. The product is made of Q355B and Q690D steel, a superior and sturdy material on the market, and the steel is cut with a 45-degree slope and then gas welded, making it more sturdy and 30% longer than normal materials.
2. All accessories are included, no additional purchases are required. Professional online video guides installation to make installation worry-free.
3. Lifetime free online customer service consultation if you have any questions (reply within 12 hours).
Q: How do I start to order?
A: Firstly, talk to our sales about your machine model, working conditions, special needs and deadline. Then our sales will give you proposals FYR. You will receive a quotation ASAP after confirming the proposal.
Q: What are your terms of payment?
A: We prefer the T/T term and others, welcome to inquiry.
Q: Are you always delivered on time?
A: We can't promise about the sea shipping but what we can do is shorten our lead time while keeping the same quality level. So there will not be any problem even if the sea freight is delayed for a couple of days.
