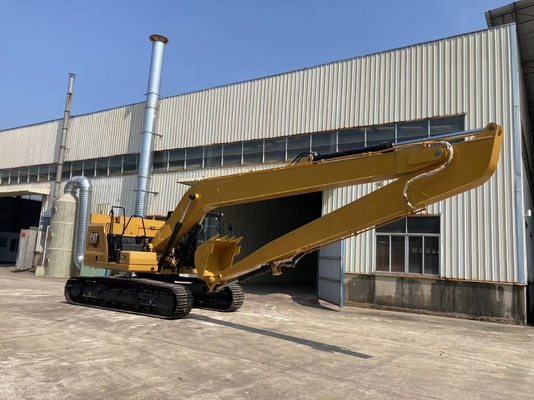

Front Attachment 18m Long Reach Boom And Arm For Hitachi ZX200 Excavator

Front Attachment 18m Long Reach Boom And Arm For Hitachi ZX200 Excavator
Front Attachment 18m Long Reach Boom And Arm For Hitachi ZX200 Excavator Front Attachment 18m Long Reach Boom And Arm For Hitachi ZX200 Excavator Front Attachment 18m Long Reach Boom And Arm For Hitachi ZX200 Excavator Front Attachment 18m Long Reach Boom And Arm For Hitachi ZX200 Excavator Front Attachment 18m Long Reach Boom And Arm For Hitachi ZX200 Excavator Front Attachment 18m Long Reach Boom And Arm For Hitachi ZX200 Excavator Front Attachment 18m Long Reach Boom And Arm For Hitachi ZX200 Excavator Front Attachment 18m Long Reach Boom And Arm For Hitachi ZX200 Excavator Front Attachment 18m Long Reach Boom And Arm For Hitachi ZX200 Excavator Front Attachment 18m Long Reach Boom And Arm For Hitachi ZX200 Excavator Front Attachment 18m Long Reach Boom And Arm For Hitachi ZX200 Excavator Front Attachment 18m Long Reach Boom And Arm For Hitachi ZX200 Excavator Front Attachment 18m Long Reach Boom And Arm For Hitachi ZX200 Excavator Front Attachment 18m Long Reach Boom And Arm For Hitachi ZX200 Excavator Front Attachment 18m Long Reach Boom And Arm For Hitachi ZX200 Excavator Front Attachment 18m Long Reach Boom And Arm For Hitachi ZX200 Excavator Front Attachment 18m Long Reach Boom And Arm For Hitachi ZX200 Excavator Front Attachment 18m Long Reach Boom And Arm For Hitachi ZX200 Excavator Front Attachment 18m Long Reach Boom And Arm For Hitachi ZX200 Excavator Front Attachment 18m Long Reach Boom And Arm For Hitachi ZX200 Excavator Front Attachment 18m Long Reach Boom And Arm For Hitachi ZX200 Excavator

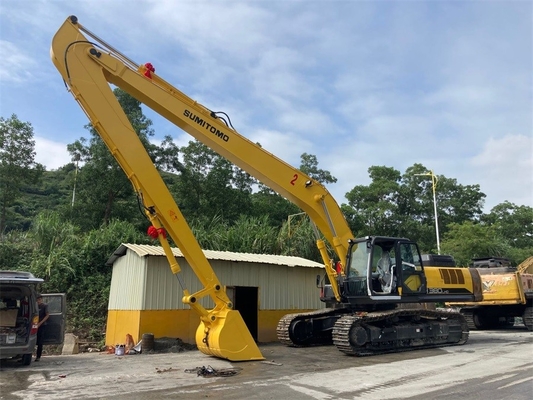

Large Image :  Front Attachment 18m Long Reach Boom And Arm For Hitachi ZX200 Excavator

Product Details:
Place of Origin: China
Brand Name: ZHONGHE
Certification: CE
Model Number: 20-27T
Payment & Shipping Terms:
Minimum Order Quantity: 1set
Price: 12600
Packaging Details: Plastic wrap and bubble wrap packing
Delivery Time: 15`20days
Payment Terms: T/T
Supply Ability: 50set one month

Front Attachment 18m Long Reach Boom And Arm For Hitachi ZX200 Excavator

Description
Material: Q355B Colour: Custom
Condition: New Long Reach Boom & Arm Warranty: 1 Year
After-sales Service Provided: Online Support Bucket Capacity: 0.4-0.5CBM
High Light:

Q355B Long Reach Boom 18m

,

Excavator Front Attachment Long Reach Boom

,

Hitachi ZX200 Excavator Boom Arm

Excavator Front Attachment 18m Long Reach Boom And Arm For Hitachi ZX200 Excavator​ boom stick for backhoe dredger



The video show of dipper arm extension

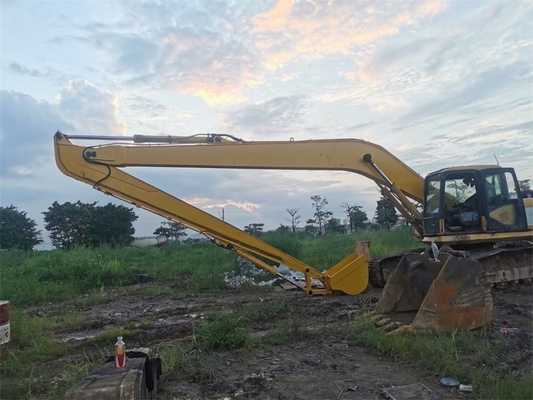

Front Attachment 18m Long Reach Boom And Arm For Hitachi ZX200 Excavator 0



Product advantage of long excavator boom and arm:

01 Use Q355B material,
02 Adopts precision steel pipeline
03 Adopt alloy copper sleeve big arm base
04 Two layers groove welded to ensure
05 Double quality inspection before leaving
06 The tolerance of position size within 1 mm
07 Angle of boom and arm can reach 163°

Product Features:

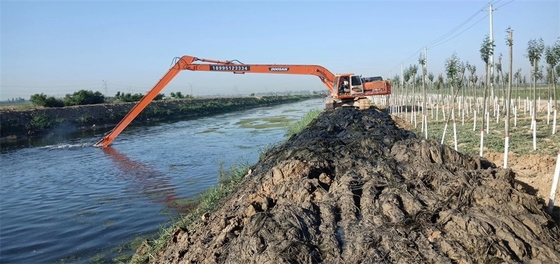

according to customer requirements design and production of two-stage excavator elongated arm, mainly suitable for earth and stone foundation and deep cut excavation operations; Used in river dredging, port construction, subway construction, building foundation excavation, a wide range of operations, high efficiency, safety

CUSTOMIZATION:

1. Applicable for all brand excavator.

2. Color, length, material can do according to you.

3. Extra pipeline can be added to suit to some extra application.

4. Boom cylinder and stick cylinder can also be supplied if customer want.



GOOD SERVICE:

1. Online support within 24 hours.

2. Appointment video technical support.

(Our engineers have focused on excavator boom and attachment over 10 years)

3. Long excavator boom shall be two/three jointed pcs to make it fittable into container to save shipping cost.



The factory of excavator boom and stick long introduce

The long arm of the excavator is made of Q355B steel with good strength and rigidity. The shaft sleeve of the lengthened arm is generally made of 45 # steel, with 40Cr bushing inside, together with the lubricating effect of butter, it reduces the shear force produced when the shaft and the sleeve rotate frequently, thus, the service life of shaft sleeve is increased. The excavator long arm structure is generally a box-type structure, that is, the upper and lower two cover plates, plus the left and right two sidewall are combined to form, the inside needs to be welded with buffer bars, and the buffer bars must be opened with elliptical holes, this can better release the extension arm in the welding work produced by the stress, to avoid damage to the extension arm.

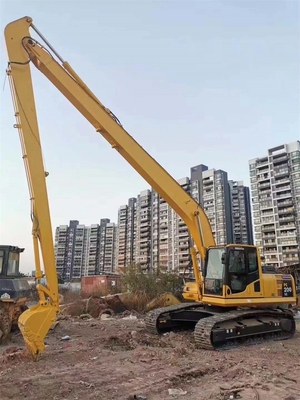

Front Attachment 18m Long Reach Boom And Arm For Hitachi ZX200 Excavator 1





The specification of excavator boom stick
Excavator Ton Total Length(mm) (A)Boom(mm) (B)Arm(mm) Maximum Digging Radius(mm) Maximum Digging Depth(mm) Maximum Unloading Height(mm) Maximum Digging Height(mm) Bucket Volume(cbm) Cylinder(ton)
11-15T 13000 7250 5750 11200 9000 7550 9350 0.15-0.3 12T
20-25T 15400 8220 7180 14500 11300 10400 12600 0.4-0.6 12T
20-30T 18000 10000 8000 17300 13000 17200 14000 0.4-0.7 12T
35-40T 20000 11000 9000 19200 14900 12900 15200 0.6-1.2 12T
40-45T 22000 12000 10000 21300 16000 14000 17000 0.5-1 20T
40-50T 24000 13000 11000 23000 17900 15200 18100 0.5-1.1



Long Reach Kits Are Fully Compatible with ZHONGHE Excavator Standard Buckets, Cylinder



Excavator long boom Excavator long arm Standard bucket
Linkage kit Bucket cylinder Butter hose
Pin Lubricatiing system Seals



Recommended Excavator Attachments


1. Long reach excavator boom

2. Excavator telescopic boom

3. Demolition boom

4. Excavator rock bucket

5. Excavator tilting bucket

6. Hydraulic grabs for excavators



FIRST--CORE CRAFT TECHNOLOGY


1. Less maintaince

Using high quality materials, such as Q355B as default, Q690D optional, Niningbo connectors, seamless precision piplines, graphite alloy copper sleeve, strong but light bucket cylinder.

2. Strong and sturdy

Built-in reinforcing ribs. Professional welding skill towards different bearing position. Groove preparation(45° edge-mining) before welding.

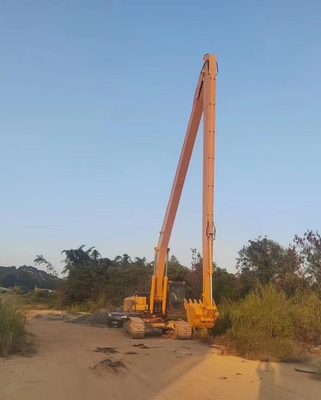

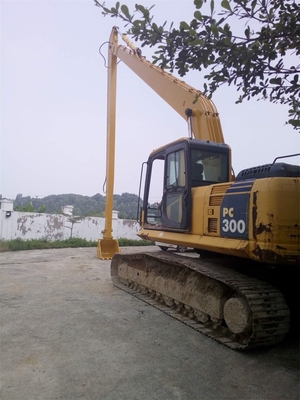

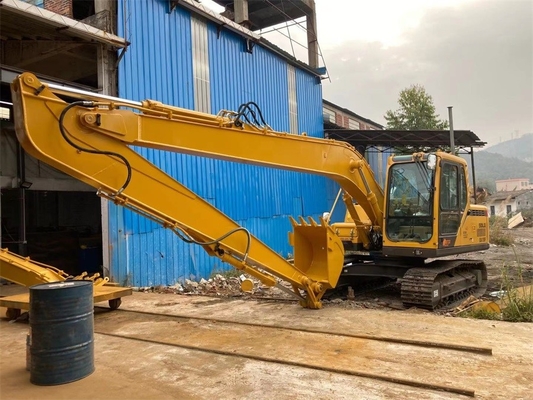

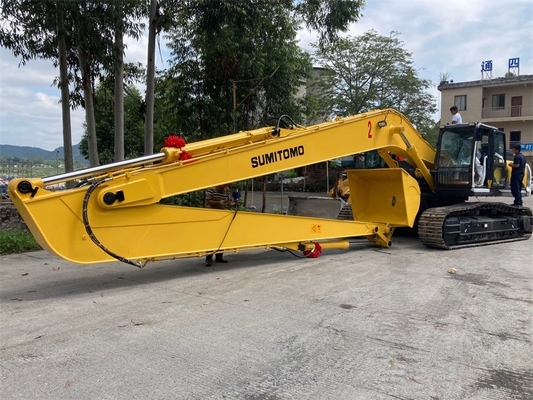

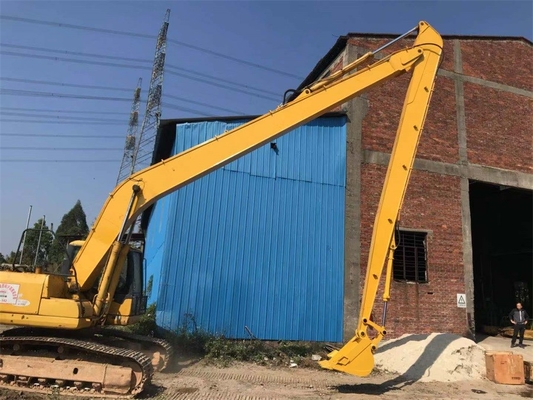

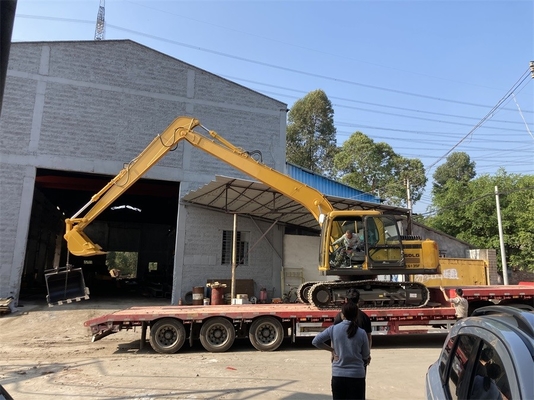

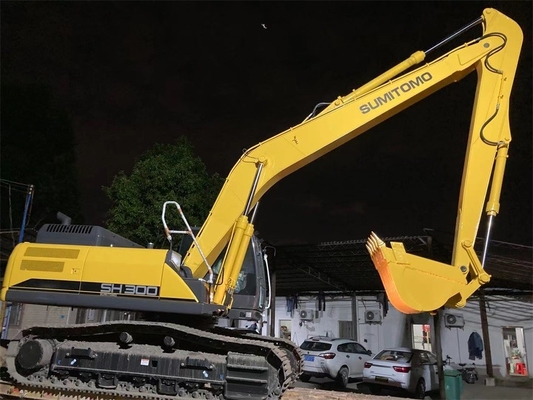

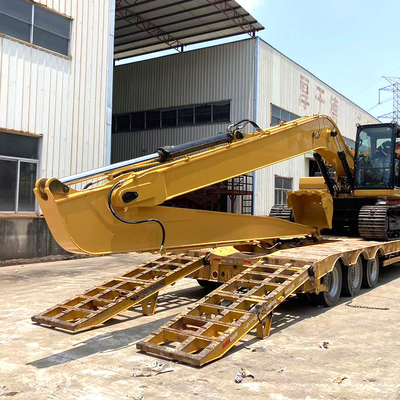

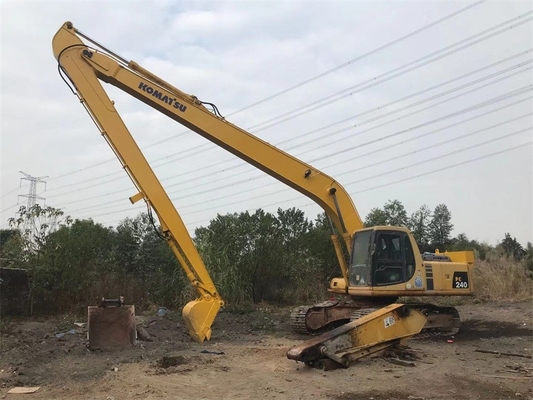

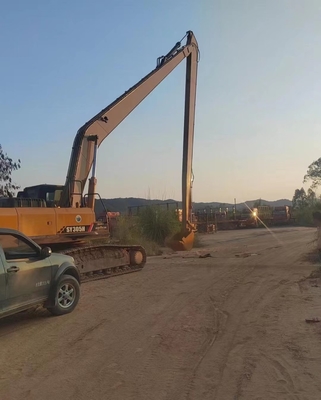

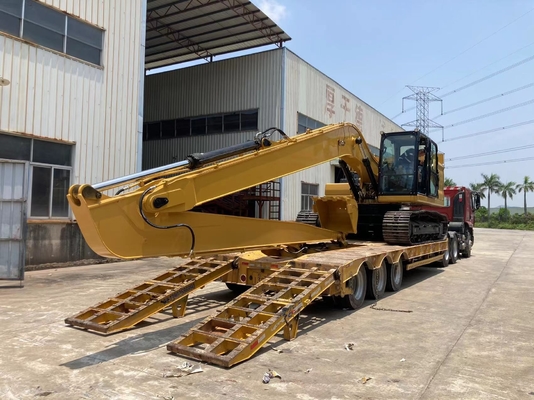

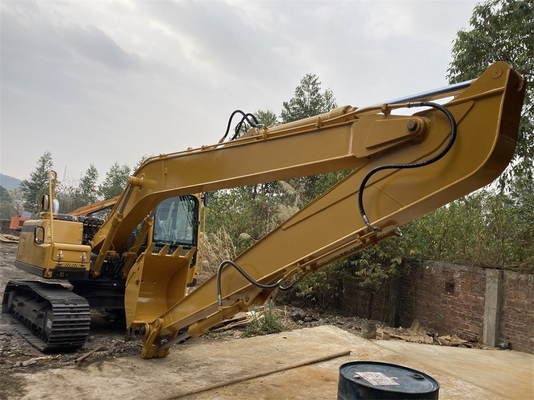

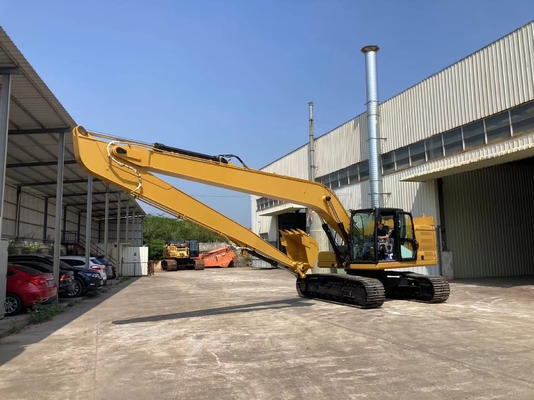

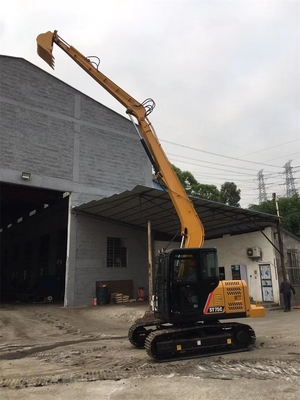

The pictures of excavator long arm for CAT

Front Attachment 18m Long Reach Boom And Arm For Hitachi ZX200 Excavator 2

Front Attachment 18m Long Reach Boom And Arm For Hitachi ZX200 Excavator 3

Front Attachment 18m Long Reach Boom And Arm For Hitachi ZX200 Excavator 4

Front Attachment 18m Long Reach Boom And Arm For Hitachi ZX200 Excavator 5

Front Attachment 18m Long Reach Boom And Arm For Hitachi ZX200 Excavator 6Front Attachment 18m Long Reach Boom And Arm For Hitachi ZX200 Excavator 7Front Attachment 18m Long Reach Boom And Arm For Hitachi ZX200 Excavator 8Front Attachment 18m Long Reach Boom And Arm For Hitachi ZX200 Excavator 9Front Attachment 18m Long Reach Boom And Arm For Hitachi ZX200 Excavator 10Front Attachment 18m Long Reach Boom And Arm For Hitachi ZX200 Excavator 11Front Attachment 18m Long Reach Boom And Arm For Hitachi ZX200 Excavator 12Front Attachment 18m Long Reach Boom And Arm For Hitachi ZX200 Excavator 13Front Attachment 18m Long Reach Boom And Arm For Hitachi ZX200 Excavator 14Front Attachment 18m Long Reach Boom And Arm For Hitachi ZX200 Excavator 15Front Attachment 18m Long Reach Boom And Arm For Hitachi ZX200 Excavator 16Front Attachment 18m Long Reach Boom And Arm For Hitachi ZX200 Excavator 17Front Attachment 18m Long Reach Boom And Arm For Hitachi ZX200 Excavator 18

FAQ of Long Reach Excavator Boom



Q1: Why not have boom and stick cylinders in the plan?
A1: First, the whole long arm is lengthening, but the boom just lengthening from its middel sleeve to its end, so the original boom and stick cylinder can be used. Second, using the original parts can save your cost.



Q2: How long is the boom arm can min excavator be be configured with? Whether it is necessary to increase the counterweight?
A2. Generally speaking, 30-40 excavator longest arm suggests to be 8 meters, can configure 0.1 cbm bucket, no need extra counterweight. 55 excavator longest arm suggests to be 12 meters, can configure 0.1-0.15 cbm bucket, need 0.5 ton extra counterweight. 60-80 excavator longest arm suggests to be 12 meters, can configure 0.15-0.25 cbm bucket, need 0.5-0.7 ton extra counterweight.
It is not recommended to extend boom arm to longest length as min excavator is easy to sloshing.



Q3: How long will it takes to install a excavator long reach boom?

It depends on the installer and machine size.
Usually disconnect the original boom arm, stick cylinder, then pin the new one is okay.
Kindly remind, prepare several containers to fill the oil before disassemble.



Front Attachment 18m Long Reach Boom And Arm For Hitachi ZX200 Excavator 19
