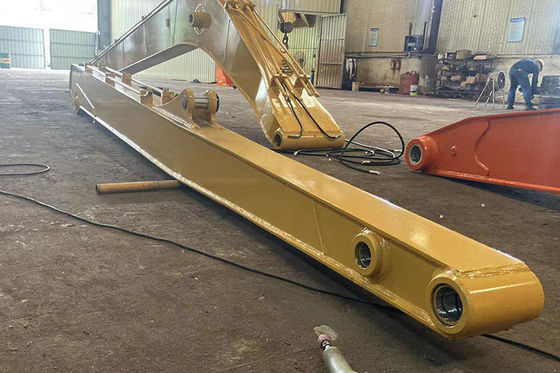

Q355B Material Excavator Long Reach Boom High Strength And High Tensile

Place of Origin China
Brand Name ZHONGHE
Certification CE
Model Number 20-27T
Minimum Order Quantity 1set
Price 9998
Packaging Details Plastic wrap and bubble wrap packing
Delivery Time 15`20days
Payment Terms T/T
Supply Ability 50set one month
Product Details
Material Q355B Size Custom
Condition New Long Reach Boom & Arm Warranty 1 Year
After-sales Service Provided Online Support Bucket Capacity 0.4-0.5CBM
High Light

Q690D Excavator Long Reach Boom

,

High Strength Long Reach Boom

,

High Tensile Long Reach Booms

Leave a Message
Product Description

Excavator long reach arm for DOOSAN HYUNDAI KOMATSU KOBELCO

Catalogue ZH excavator boom arm.pdf

Introduction of long reach excavator arms

ZHONGHE MACHINERY Long Reach Excavator Fronts are designed and manufactured to support deep and long-distance digging applications, such as: dredging, canal cleaning, lagoon cleaning, material handling, river and canal pipeline crossings. ZHONGHE MACHINERY Long reach Fronts are available in either a Dredging configuration (Super Long Reach), or an Excavating configuration (Long Reach).

Dredging Fronts are for digging in very soft soils or silt and can be equipped with our General Ditching Bucket (GDB). These are typically used in dredging operations around marinas or other light duty digging operations.

Excavating Fronts are for general purpose digging and can be equipped with a Heavy Duty Digging Bucket (HDD). These have been used to access gravel at the bottom of quarry ponds and can be used for more general purpose excavating operations.



Product advantage of long reach boom arm

Characteristics:
Long Reach Booms are made of high strength and high Tensile alloy steel Q345B, and better material (700Mpa Yield Strength) is optional
Inside of Booms with we design baffle plates that make booms strong and durable to withstand torsional loads
Our boom and arm are large-welded box structure and thick or multi-plates for high-stress areas.
High quality accessories such as pipeline, pins, bushes and cylinders,
Camera system can be furnished on your request
Lock Valve is optional as a security tool to prevent boom down in the event of hydraulic hose blows
Bucket cylinder With protective Guard.
Various of Attachment to fit long reach booms: standard digging bucket, mud bucket, skeleton bucket, grapple.



Less maintaince
Using high quality materials, such as Q355B as default, Q690D optional, Niningbo connectors, seamless precision piplines, graphite alloy copper sleeve, strong but light bucket cylinder.
2. Strong and sturdy
Built-in reinforcing ribs. Professional welding skill towards different bearing position. Groove preparation(45° edge-mining) before welding.



Q355B Material Excavator Long Reach Boom High Strength And High Tensile 0

The specification of  long reach arm for excavator

Excavator Ton Total Length(mm) (A)Boom(mm) (B)Arm(mm) Maximum Digging Radius(mm) Maximum Digging Depth(mm) Maximum Unloading Height(mm) Maximum Digging Height(mm) Bucket Volume(cbm) Cylinder(ton)
11-15T 13000 7250 5750 11200 9000 7550 9350 0.15-0.3 12T
20-25T 15400 8220 7180 14500 11300 10400 12600 0.4-0.6 12T
20-30T 18000 10000 8000 17300 13000 17200 14000 0.4-0.7 12T
35-40T 20000 11000 9000 19200 14900 12900 15200 0.6-1.2 12T
40-45T 22000 12000 10000 21300 16000 14000 17000 0.5-1 20T
40-50T 24000 13000 11000 23000 17900 15200 18100 0.5-1.1

Q355B Material Excavator Long Reach Boom High Strength And High Tensile 1

Various long reach packages are available to meet your specific construction equipment attachment needs. The packages listed here are a sample of what we can customize for you. Call our sales office today for specifications and pricing of our long reach packages.



Our Long Reach Booms Sticks fit most makes and models,

Include but not limit below models.
Komatsu Excavator Model: PC160LC-8, PC200, PC210, PC228, PC220 PC270, PC300, PC350, PC450, PC600, PC850, PC1250
Caterpillar Excavator Model: CAT320, CAT323, CAT326, CAT329, CAT330, CAT335, CAT336, CAT349, CAT352, CAT374, CAT390
Hitachi Excavator Model: ZX210, EX200, EX220, EX330, EX350, ZX200, ZX240, ZX330, EX350, EX400, ZX470, ZX670, ZX870, EX1200, EX1900
Volvo Excavator Model: EC220, EC235, EC250, EC300, EC350, EC355, EC380, EC480, EC750
Doosan Excavator Model: DX225, DX235, DX255, DX300, DX350, DX420, DX490, DX530, DX800
Kobelco Excavator Model: SK200, SK210, SK220, SK250, SK260, SK300, SK330, SK350, SK380, SK460, SK500, SK850
Sumitomo Excavator Model:?SH210, SH225, SH240, SH300, SH330, SH350, SH460, SH480, SH500, SH700, SH800
Hyundai Excavator Model: R200, R210, R220, R290, HX220, HX235, HX260, HX300, HX330, HX380, HX430, HX480, HX520, R1200





Factory advantage of long boom excavator arm

Excavator Long Reach Boom is a special-purpose attachment for long distance dredging in slope forming, settling banks, cleaning ponds/waterway, etc. application.

We are a professional manufacturer in China, specializing in Designing and making Long Reach Booms, High Reach Demolition Front, Shortened Rock Boom Stick, Bucket, and other kind of Excavator Attachment, our product has been sold to USA, England, UAE, Russia Australia, Egypt etc. counties.



1. 14000㎡ Workshop

We has more than 14000㎡ steel structure standard workshop with a large number of high precision processing equipments.


2. High-tech R&D Team
We use precision drawing software to achieve the max working range under the premise of safe operation.


3. Experienced Workers
There are more than 60 skillful staffs, 30 welding workers with over 5 years welding experience.


4. Customization
(1)Match all brand excavator.
(2)Color, length, material can do according to you.
(3)Extra pipeline can be added to suit to some extra application.


5. Prompt Lead Time
(1)Our lead time is 7-15 days.
(2)Our annual output of various types of excavator boom arms can reach 600 sets.


6. 100% Service
(1)Online support within 24 hours.
(2)Appointment video technical support. (Our engineers have focused on excavator boom and attachment over 10 years)







Q355B Material Excavator Long Reach Boom High Strength And High Tensile 2



Q355B Material Excavator Long Reach Boom High Strength And High Tensile 3Q355B Material Excavator Long Reach Boom High Strength And High Tensile 4

Q355B Material Excavator Long Reach Boom High Strength And High Tensile 5

Construction Case

Q355B Material Excavator Long Reach Boom High Strength And High Tensile 6Q355B Material Excavator Long Reach Boom High Strength And High Tensile 7

Our factory other products

Q355B Material Excavator Long Reach Boom High Strength And High Tensile 8Q355B Material Excavator Long Reach Boom High Strength And High Tensile 9

FAQ

FAQ
Question 1: Does the Excavator with Long Reach Boom suitable for working in sea water?


Answer: Yes, It can work in sea water and our long reach booms painted with anti-corrosive painting, but please note some wearing component will not last as long as normal because of sea water corrosion , such as Bushes, Bucket, bucket cylinder


Question 2: Can Long Reach Excavator to do hammering job?


Answer: It is not recommended, Long Reach Excavator are designed for long reach dredging or moving material, If your job really need long reach hammering, please consult with us, we will give you suitable hammer model


Question 3: Do I need to buy overseas from you If some wearing parts wear out?


Answer: All our wearing parts on Long Reach Booms are standard part like bucket cylinder, bushes, cylinder seal, you can buy these locally.
