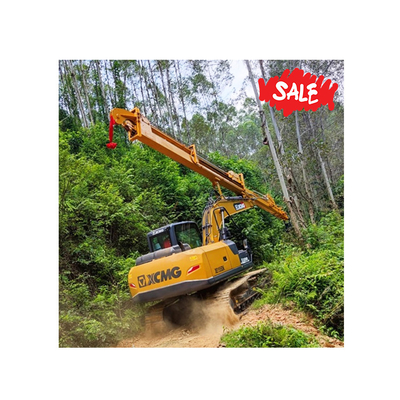

ZHONGHE Forestry Machine Excavator Telescopic Arm with wood grapple , Tree Care Excavator Telescopic Boom

Catalogue ZH excavator boom arm.pdf

1. 14000㎡ Workshop

We has more than 14000㎡ steel structure standard workshop with a large number of high precision processing equipments.

2. High-tech R&D Team

We use precision drawing software to achieve the max working range under the premise of safe operation.

3. Customization

(1)Match all brand excavator.
(2)Color, length, material can do according to you.
(3)Extra pipeline can be added to suit to some extra application.

4. Prompt Lead Time

(1)Our lead time is 7-15 days.
(2)Our annual output of various types of excavator boom arms can reach 600 sets.

5. 100% Service

(1)Online support within 24 hours.
(2)Appointment video technical support. (Our engineers have focused on excavator boom and attachment over 10 years)

CE certification & Utility model patent certificates

1. Tree collecting Telescopic boom also called forestry telescopic arm or wood grabbing boom, is a kind of grasping machine used in forest farm logging, deep subway construction, building underground parking lot construction and special well construction and other places.

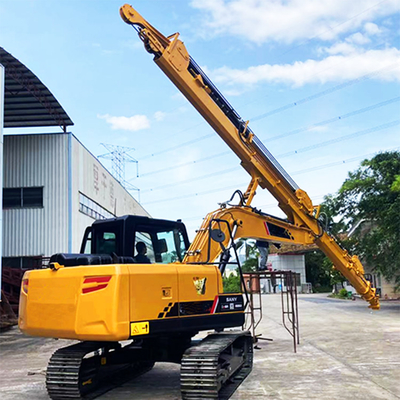

2, the structure is divided into two telescopic boom and three telescopic boom. The long distance of the boom can usually reach 23-28 meters. The length can also be customized according to the work needs.

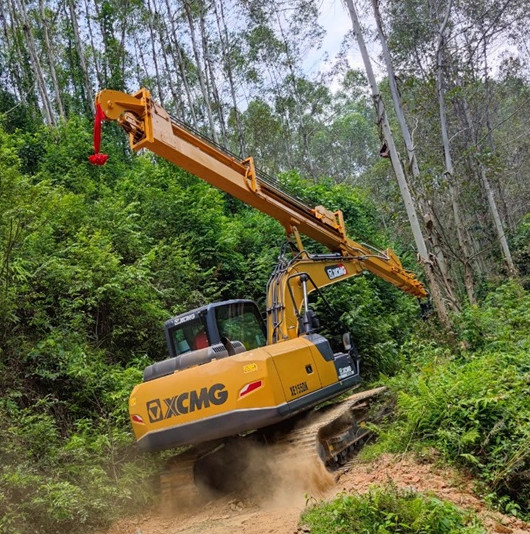

The telescopic arm of excavator has quickly become one of the main machines in forest farms and construction sites by virtue of its applicability, ultra-long working radius and flexible nose.

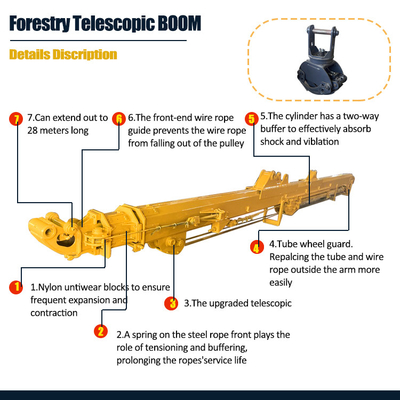

(Robust structure)
1. The box is made of LG700 high strength material
2. Bearing part with multi-layer reinforced

3. The upgraded auxiliary rope design makes the pipeline smoother while stretching

(Long service life)
1. The reel adopts enlarged spring piece
2. Adopt Strong bucket cylinder

(Avoid oil leakage)
1. Hydraulic hoses are made of four-layer steel wire ring.
2. The telescopic cylinder adopts double oil seals
3. Bucket cylinder hose was built-in to avoids oil leakage caused by hose vibration

(Easy to maintain)
1. Lubrication system for sliders help support butter easily.
2. The external hose pulley separates the hose from the main rope, avoids the friction between the main rope and the hose, reduces failures, and makes maintenance more convenient

Q1. What is the length of the telescopic boom? Is it the total length of the boom?
A1. The length of the two-stage telescopic boom refers to the excavation depth. For example, the 14m telescopic boom refers to the maximum excavation depth of 14m, not the boom length of 14m.

Q2. How to judge the length of telescopic boom that can be made for different models?
A2. Because the length of the telescopic boom is directly related to the length of the boom. We should ensure that the telescopic boom will not touch the bridge when it is placed on the ground.

Q3. Do I need to modify the original machine when installing the telescopic boom? Are there any precautions?
A3. The original machine needs three sets of pipes. We need to replace the original one-way foot switch with a two-way foot switch to achieve the telescopic function. The other operations are the same. The more important thing is balance and safety. Try to avoid the 90 degree operation between the cab and the track shoe.

Q4. Note and maintenance of telescopic arm
A4. 1st, telescopic arm does not allow inclined excavation. 2nd, it can't dig hard things but only soft soil. 3rd, it is not allowed to jack or hoist when the smallest arm is not fully retracted. 4th, the end can't lift things more than 1 ton, which are easy to bend the telescopic arm. If so, no warranty. 5th, telescopic boom shall be greased every day, and the boom barrel shall be greased at least once a week to keep the boom barrel full of butter.
