Custom Excavator Boom Arm , Doosan DX340 DX330 DX230 Excavator Long Reach Arm

Certification
China Kaiping Zhonghe Machinery Manufacturing Co., Ltd certification
China Kaiping Zhonghe Machinery Manufacturing Co., Ltd certification
Customer Reviews
High quality excavator boom with good price! I like it very much, so I brought 2 units of demolition arm again. The whole process went smoothly. Next time I need to buy excavator arms, I will buy them from here.

—— David Cordova

Very happy with the service provided. All questions were answered promptly. The product was as described and arrived on time. Great packaging. The biggest surprise was that the welding quality of the product exceeded my expectations.

—— Vaina Conroy

Very helpful. The excavator long reach arm I purchased are solidly built, well made and I have no doubt they will last for many years.

—— William Hollister

This excavator is exactly as described. I compared many sellers and finally chose to buy from them. Whether it is service or product quality, I can only say high quality.

—— Kiran Ogale

For the price, I was very happy to see the quality and craftsmanship that was put into excavator long arm. Runs great and has plenty of power. The whole time very very pleased with the services.

—— Jerry Anderson

Very reliable partner with professional team, I am so satisfied with their fast delivery and good products, I get the machine in hand now, and will in use this week.

—— Libaah Shaadh

Came in better than expected. Looking to buy 5 sets of this long boom more now they work so well and are easy to replace my old one.

—— Marcello Batocchi

I am satisfied with their service much, I had problems installing the product after receiving it, but they provided online video instructions and it now works perfectly with my excavator, thank you for the product and services.

—— Glyn Cann

Buen producto, excelente servicio, el brazo de extensión ha estado en uso durante dos meses y se adapta perfectamente a mi excavadora.

—— kazi Shoeb

Super service très bon suivi commercial et société sérieuse

—— Manuel Palos

I'm Online Chat Now

Custom Excavator Boom Arm , Doosan DX340 DX330 DX230 Excavator Long Reach Arm

Custom Excavator Boom Arm , Doosan DX340 DX330 DX230 Excavator Long Reach Arm

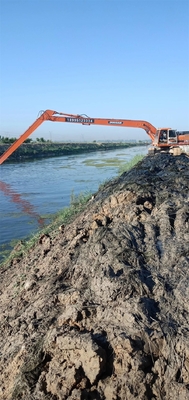

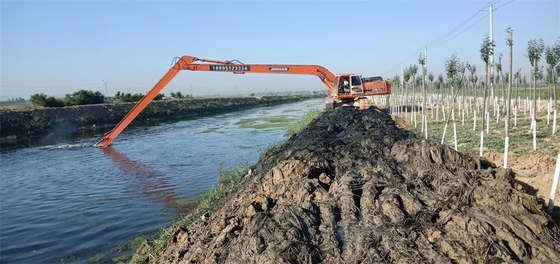

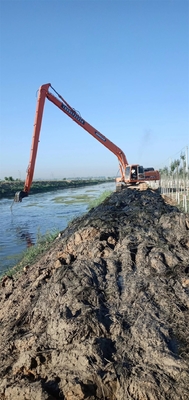

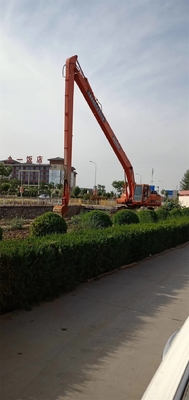

Custom Excavator Boom Arm , Doosan DX340 DX330 DX230 Excavator Long Reach Arm Custom Excavator Boom Arm , Doosan DX340 DX330 DX230 Excavator Long Reach Arm Custom Excavator Boom Arm , Doosan DX340 DX330 DX230 Excavator Long Reach Arm Custom Excavator Boom Arm , Doosan DX340 DX330 DX230 Excavator Long Reach Arm Custom Excavator Boom Arm , Doosan DX340 DX330 DX230 Excavator Long Reach Arm

Large Image :  Custom Excavator Boom Arm , Doosan DX340 DX330 DX230 Excavator Long Reach Arm

Product Details:
Place of Origin: Guangdong, China
Brand Name: ZH
Certification: CE
Model Number: ZH-JCB22
Payment & Shipping Terms:
Minimum Order Quantity: 1set
Price: $14000/Pieces
Packaging Details: Bubble bag packaging
Delivery Time: 15works
Supply Ability: 60 Piece/Pieces per Month

Custom Excavator Boom Arm , Doosan DX340 DX330 DX230 Excavator Long Reach Arm

Description
Condition: Brand New Video Outgoing-inspection: Provided Videos Of Excavator Boom
Warranty: 1 Year Warranty For Extension Arm After Service: 7*24 Hours Online Video Support
Material: Q355B Material MOQ: 1 Set.
Usage: Machinery Attachment For Excavator Delivery Time: 9-27 Days

Custom Excavator Boom Arm , Doosan DX340 DX330 DX230 Excavator Long Reach Arm


See what product zhonghe can do: Catalogue ZH excavator boom arm.pdf
For more products:

Product Presentation of Excavator Boom

        The long arm of the excavator is made of Q355B steel, which has good strength and rigidity. The shaft sleeve of the extension arm is generally made of 45# steel and lined with a 40Cr bushing. The lubrication of the butter reduces the shear force generated by the frequent rotation of the shaft and the shaft sleeve, thereby prolonging the service life of the extension arm. The bushing is enlarged. It is located between the main body bracket and the working arm and is equipped with an extension arm. The extension arm is connected and supported by an oil cylinder. Extending the arm working cylinder and bucket cylinder, inside and outside the cockpit, the corresponding control system is equipped with a set of cylinders, which work in conjunction with the control arm. The telescopic work of the cylinder and the bucket cylinder can more than double the stroke of the bucket, and the stroke can be Higher, deeper, and farther. Especially suitable for mines, docks, warehouses, flood relief and special occasions. This is a major breakthrough in the transformation of mining machinery and has great practical value.


 Material Use Q345B, Q550D, Also can customize to customer requirements
 Product Warranty Period 6 months,9 months,1 Year
 Product Size Most lengths can be 34M, According to customer requirements, Any excavator model.



Custom Excavator Boom Arm , Doosan DX340 DX330 DX230 Excavator Long Reach Arm 0



Advantages of Zhonghe Excavator Long Arm

1. Less maintenance
Using high-quality materials, such as default Q355B, optional Q690D, Ningbo connectors, seamless precision pipes, graphite alloy copper sleeves, strong and lightweight barrels.

2. Sturdy and sturdy
Built-in stiffeners. Professional welding skills for different bearing positions. Groove preparation before welding (45° edge excavation).

3. The tolerance is within 5-10um
The drilling tolerance is within 5-10um to ensure accuracy.

Custom Excavator Boom Arm , Doosan DX340 DX330 DX230 Excavator Long Reach Arm 1

What Zhonghe Can Do



CUSTOMIZATION:
1. Applicable for all brand excavators.
2. Color, length, and material can do according to you.
3. Extra pipelines can be added to suit some extra applications.
4. Boom cylinder and stick cylinder can also be supplied if the customer wants.

STRONG PRODUCTION CAPACITY:
We can produce 50 sets of excavator booms per month.
Our annual output of various types of excavator boom arms can reach 600 sets.

GOOD SERVICE:
1. Online support within 24 hours.
2. Appointment video technical support.
(Our engineers have focused on excavator boom and attachment for over 10 years)
3. Long excavator boom shall be two/three jointed pcs to make it fittable into a container to save shipping costs.

Warranty:
1 year for long reach boom, 180 days for cylinder and linkage, and 90 days for the bucket.


Custom Excavator Boom Arm , Doosan DX340 DX330 DX230 Excavator Long Reach Arm 2

All parts you needed are included.

Long Reach Kits Are Fully Compatible with ZHONGHE Excavator Standard Buckets, and Cylinder.
Excavator long boom
Excavator long arm
Standard bucket
Linkage kit
Bucket cylinder
Butter hose
Pin
Lubricating system
Seals



Custom Excavator Boom Arm , Doosan DX340 DX330 DX230 Excavator Long Reach Arm 3



Specification of Excavator Boom Arm

Weight
Model
Part Length
Total length(m)
Weight(kg)
Maximum removal height(m)
Total Length(mm) 25T 8.5 16 2800 16M
Boom(A)(mm) 2.3 900
Arm(b)(mm) 5.2 1700
Maximum Digger Radius(C)(mm) 30T 9.5 18 3000 18M
Maximum Digger Depth(C)(mm) 2.3 1000
Maximum Unloading Height(E)(mm) 5.2 1950
Maximum Digger Height(F)(mm) 35T 10.5 20 3500 20M
Bucket Volume(m³) 2.3 1100





Custom Excavator Boom Arm , Doosan DX340 DX330 DX230 Excavator Long Reach Arm 4

Custom Excavator Boom Arm , Doosan DX340 DX330 DX230 Excavator Long Reach Arm 5



Custom Excavator Boom Arm , Doosan DX340 DX330 DX230 Excavator Long Reach Arm 6

Custom Excavator Boom Arm , Doosan DX340 DX330 DX230 Excavator Long Reach Arm 7

Custom Excavator Boom Arm , Doosan DX340 DX330 DX230 Excavator Long Reach Arm 8

Custom Excavator Boom Arm , Doosan DX340 DX330 DX230 Excavator Long Reach Arm 9

Custom Excavator Boom Arm , Doosan DX340 DX330 DX230 Excavator Long Reach Arm 10

Custom Excavator Boom Arm , Doosan DX340 DX330 DX230 Excavator Long Reach Arm 11

Company Strength

          Kaiping Zhonghe Machinery Manufacturing Co., Ltd, is a manufacturing and trading combo that specializes in customizing different kinds of excavator boom arms and attachments We have more than 14000m' steel structure standardization workshop with a large number of high precision processing equipment as well as a strong and cohesive team. At present, there are more than 60 experienced technical staff, 30 welding workers with over 7 years of experience, 15 senior designers, and a high-tech R&D team.
          Our annual output of various types of excavator boom arms can reach 600sets. We supply products with high quality and moderate prices, which sell well in more than 40 countries and areas.
We adhere to" Merit Quality, Sincerity Management, and Customer Satisfaction", and honestly greet customers from home and abroad to negotiate and cooperate with us.
Custom Excavator Boom Arm , Doosan DX340 DX330 DX230 Excavator Long Reach Arm 12
Custom Excavator Boom Arm , Doosan DX340 DX330 DX230 Excavator Long Reach Arm 13
Custom Excavator Boom Arm , Doosan DX340 DX330 DX230 Excavator Long Reach Arm 14
Custom Excavator Boom Arm , Doosan DX340 DX330 DX230 Excavator Long Reach Arm 15
Custom Excavator Boom Arm , Doosan DX340 DX330 DX230 Excavator Long Reach Arm 16
Custom Excavator Boom Arm , Doosan DX340 DX330 DX230 Excavator Long Reach Arm 17

FAQ of excavator long arm

Q1: Why not have boom and stick cylinders in the plan?
A1: First, the whole long arm is lengthening, but the boom just lengthening from its middle sleeve to its end, so the original boom and stick cylinder can be used. Second, using the original parts can save you cost.

Q2: How long is the boom arm can min excavator be configured with? Whether it is necessary to increase the counterweight?
A2. Generally speaking, the 30-40 excavator longest arm suggests to be 8 meters, and can configure 0.1 cbm bucket, with no need for an extra counterweight. 55 excavator's longest arm suggests to be 12 meters, which can configure 0.1-0.15 cbm bucket, which needs 0.5 ton extra counterweight. 60-80 excavator longest arm suggests to be 12 meters, can configure 0.15-0.25 cbm bucket, need 0.5-0.7 ton extra counterweight.
It is not recommended to extend boom arm to longes the t length as mini excavator is easy to slosh.

Q3: How long will it take tall an excavator long reach boom?
It depends on the installer and machine size.
Usually disconnecting the original boom arm, stick cylinder, then pin the new one is okay.
Kindly remind, use
 to prepare several containers to fill the oil before disassembling.
