Product Details:
|
| Warranty: | 3 Months Warranty | Type: | Excavator Trim Bucket， Mud Bucket |
|---|---|---|---|
| Material: | Q355B, NM400, HARDOX500 Optional | Condition: | 100% New & Never Used |
| Part Name: | Antiwear Blocks, Sidebar Protectors | Width, Spacing Size: | Customization |

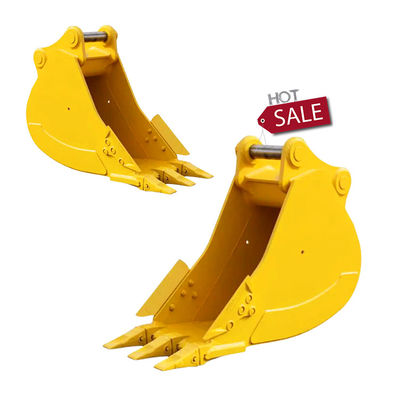

| High Light: | HARDOX500 Narrow Trenching Bucket,10" Excavator Narrow Trenching Bucket,Trim Excavator Ditch Bucket |
||
Catalogue ZH excavator boom arm.pdf
1. 14000㎡ Workshop with Precision Equipments
We has more than 14000㎡ steel structure standard workshop with a large number of high precision processing equipments.
2. High-tech R&D Team
We use precision drawing software to achieve the max working range under the premise of safe operation.
3. Experienced Workers
There are more than 60 skillful staffs, 30 welding workers with over 5 years welding experience.
4. Customization
(1)Match all brand excavator.
(2)Color, length, material can do according to you.
(3)Extra pipeline can be added to suit to some extra application.
5. Prompt Lead Time
(1)Our lead time is 7-15 days.
(2)Our annual output of various types of excavator boom arms can reach 600 sets.
6. Excellent Service
(1)24 hours online service.
(2)Can make an appointment for technical video support.
CE certification & Utility model patent certificates
Cleaning bucket with wide appearance, no bucket teeth, mainly used for drainage ditch and river dredging operations. In order to meet the slope of different ditches, avoid dredging while the body constantly adjust and reduce fuel consumption, so a new type comes--tilt bucket.
Applicable environment: It is applicable to the trimming of slopes and other planes, as well as the large capacity dredging and cleaning of rivers and ditches. Basing on the cleaning bucket, the tilting bucket changes the tilt angle through oil cylinder, greatly improving the work efficiency
Bucket width and opening angle can be customized according to customers' requirement.
◆The grading ditching bucket's width and spacing size can be customized.
◆Robust base plate
◆Reinforced ribs
◆Multi-layer welding craft
◆Using high-strength materials, NM360,HARDOX500,Q355B optional
◆Separated plates design, load &unload easily
◆Horizontal widening and depth reducing improve its work efficiency
◆Double layers teeth base plate is optional.
| Excavator Model (ton) | G.W. (kg) | Hydraulic Oil Flow Rate (L/min) | Work Pressure(bar) | Bucket Capacity (cbm) |
| 6 | 450 | 10-20 | 30-210 | 0.4 |
| 12 | 750 | 10-20 | 30-210 | 0.6 |
| 20 | 950 | 10-20 | 30-210 | 0.8 |
| 30 | 1200 | 10-20 | 30-210 | 1.4 |
1. Standard bucket
Q355B material, standard plate thickness, and China high-quality bucket tooth base. It is mainly applicable to light operation occasions such as excavation of general clay and loading of sand, soil and gravel.
2. Rock bucket:
Q355B material, NM400 optional. On the basis of the standard bucket, reinforcing plates are added at the bottom, and the tooth plate and side plate are thickened. It is mainly applicable to heavy and light industrial occasions such as excavation of hard soil and loading of soil, gravel and gravel mixed with soft sand.
3. Heavy duty rock bucket:
Q355B+Hardox500. On the basis of the reinforced bucket, the bottom plate and side plates are thickened. It is mainly applicable to the excavation of hard rocks, secondary hard rocks and wind fossils mixed in the soil; Loading of hard rock and ore after blasting.
4. Skeleton excavator bucket
5. Tilt bucket for mini excavator
6. Clamshell excavator bucket
7. Grading ditching bucket
8. Excavator Ripper
9. Excavator Log Grapple
6. Hydraulic grabs for excavators
Please do not hesitate to contact us for any details, Thank you!
