Product Details:
|
| Type: | Pile Driving Boom For Excavator | Condition: | High Quality & Total New |
|---|---|---|---|
| Warranty: | 6 Months | After-sales Service Provided: | Online Quick Reply |
| Maximum Length: | 13-20 Meters | Counterweight: | Regarding To Your Excavator |
| Color: | Match The Original | Working Part: | Vibratory Hammer |
| High Light: | PC350 Excavator Pile Driving,18M Excavator Pile Driving,Sheet Pile Excavator Boom Arm |
||
Click here to check out the product catalog:Zhonghe Machinery Product Catalog-Contact Sales Manager Aria Directly
| 14000㎡ Workshop with Precision Equipments | High-tech R&D Team with 10+ Years Experience |
| Experienced Welding Workers | Deep Customization |
| Prompt Lead Time 7-20 Days | Excellent Service Within 24 Hours |
CE certification & Utility model patent certificates

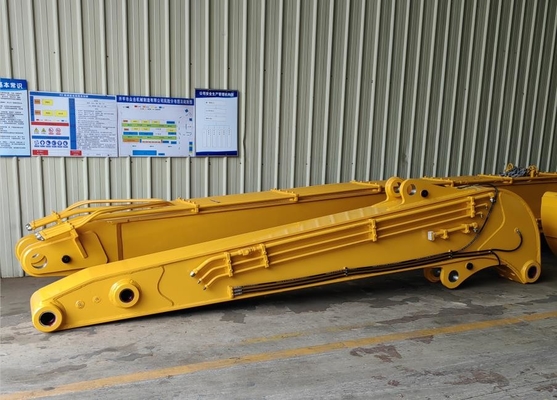

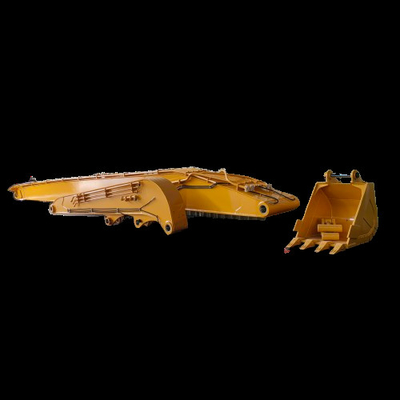

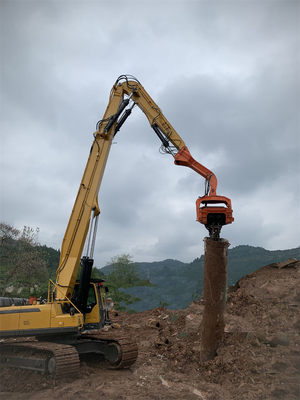

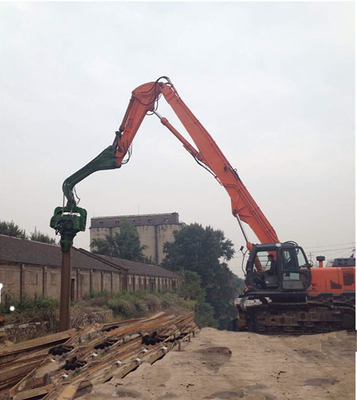

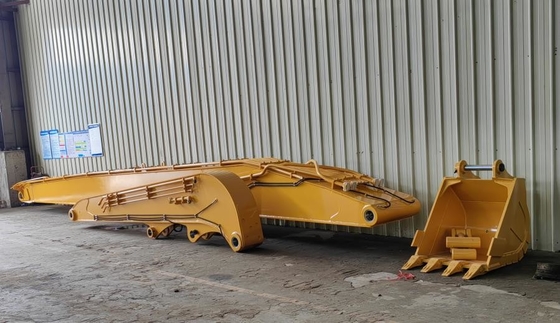

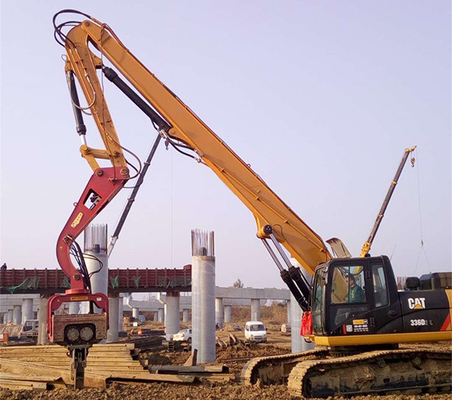

Excavator piling arm is a kind of excavator lengthening arm for piling. The standard arm of conventional excavator can only play 6 meters of pile. By changing the middle hole of the big arm to the lower part of the big arm, it can only barely play 9 meters of pile.

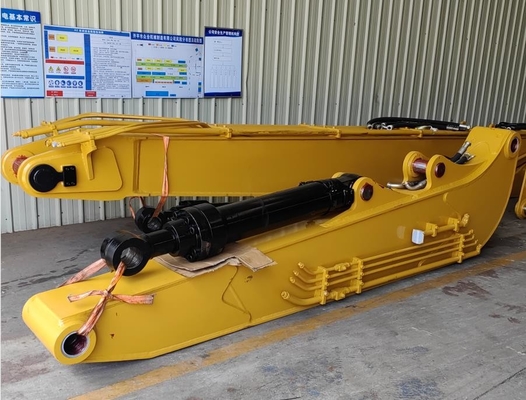

The pile driving arm is straight, and the bucket rod cylinder is changed to the lower part of the arm, so it can reach higher.

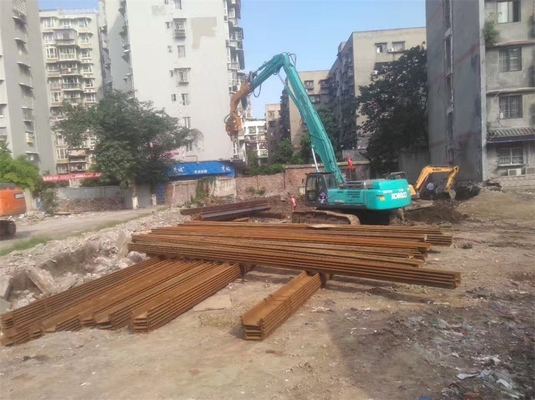

For example, to drive 15 meters of steel sheet piles, only 16 meters of pile arms are needed. The upper arm is 11 meters and the lower arm is 5 meters. According to the customer's excavator and vibration hammer model, sometimes it is necessary to add appropriate counterweight. In addition, the number of pipes and joints adapted to different vibration hammers are not the same, and some need to change the dual pump conjunctive flow.
1. Q355B as default, Q690D optional.
2. Key Force-bearing Parts are Reinforced.
3. Welding is full and smooth.
4. Adopt national standard precision pipelines.
5. Boom bushing come with an alloy copper sleeve(with self-lubricating carbon powder inside).
6. Boom and sticks' angle can be opened to achive 160°
| Excavator(Ton) | Total Length(mm) | (A)Boom(mm) | (B)Arm(mm) | (C)Piling Height)(mm) | Counterweight(Ton) |
| 30-36T | 13800 | 10000 | 3800 | 15400 | 3T |
| 30-36T | 15000 | 10500 | 4500 | 17100 | 5T |
| 40-45T | 15800 | 11000 | 4800 | 17900 | 3T |
| 40-45T | 16800 | 11500 | 5300 | 18500 | 5T-6T |
| 45-50T | 19000 | 12500 | 6500 | 21000 | 6T-7T |
