Product Details:
|
| Material: | Q355B 、Q345B | Warranty: | 3 Months |
|---|---|---|---|
| Bucket Type: | Quick Hitch | OEM/ODM: | Acceptable |
| Excavator Model: | 1 Ton - 40 Ton | After-sales Service Provided: | Online Quick Response |
| High Light: | Q345B Excavator Quick Coupler,Mini Excavator Quick Coupler,Excavator Digger Bucket Quick Release |
||
Catalogue ZH excavator boom arm.pdf
1. 14000㎡ Workshop
2. High-tech R&D Team
3. More Than 60 Skillful Workers
4. Deep Customization(Color, length, material, bucket width, extra hydraulic tube, etc.)
5. Prompt Lead Time(7-20 days)
6. Online support within 24 hours.

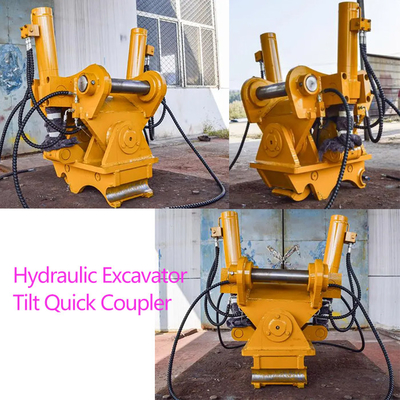

Excavator quick coupler, also known as quick hitch, quick link. Excavator quick coupler can quickly install various configuration accessories on the excavator, such as bucket, ripper, crushing hammer, hydraulic shear, wood grabber, rock grab, etc., which can expand the use range of the excavator, save time and improve work efficiency.
Main features
1. Using Q345 manganese plate steel, high strength and corrosion resistance;
2. The pinis made of 42CrMu steel with high strength and toughness
3. The oil cylinder adopts honing tube imported, HALLITE oil seal, short working cycle and long life.
4. Removable tiger mouth spring disc protection design, bold design of safety pin, safe and reliable.
| Item/Model | Unit | ZHMINI | ZH45 | ZH50/55 | ZH60/65 | ZH70/80 | ZH90 | ZH100/110 |
| Suitable Excavator | ton | 1.5-4 | 4-7 | 5-8 | 9-19 | 17-23 | 23-30 | 33-45 |
| Weight | kg | 25 | 50-60 | 80 | 120-130 | 280-290 | 420-430 | 450-580 |
| Length | mm | 388 | 534-545 | 600 | 765 | 924-944 | 983-1050 | 1006-1473 |
| Height | mm | 246 | 307 | 310 | 388 | 492 | 574 | 558-610 |
| Nidth | mm | 175 | 258-263 | 270-280 | 353-436 | 449-483 | 543-568 | 606-663 |
| Pin to Pin Center Distance | mm | 80-150 | 230-270 | 290-360 | 380-420 | 460-480 | 473-540 | 550-620 |
| Forearm Open Width | mm | 80-140 | 155-170 | 180-200 | 232-315 | 306-340 | 375-411 | 416-469 |
| Retractable Distance of Oil Cylinder | mm | 170-206 | 205-275 | 340-450 | 340-486 | 256-390 | 413-590 | 520-590 |
| Top to Bottom Pin Distance | mm | 159 | 195 | 195 | 220 | 275 | 300 | 360 |
| Pin Diameter | mm | 25-40 | 45-50 | 50-55 | 60-70 | 70-80 | 80-90 | 90-120 |
| Norking Pressure | bar | 32-40 | 32-40 | 32-40 | 32-40 | 32-40 | 32-40 | 32-40 |
| Working Flow | lpm | 10-20 | 10-20 | 10-20 | 10-20 | 10-20 | 10-20 | 10-20 |
6. Hydraulic grabs for excavators
Excavator Quick change joint, also known as quick connector, Quick Link. Excavator quick change joint can quickly install various configuration accessories on the excavator, such as bucket, soil reducer, crushing hammer, hydraulic shear, wood grabber, grab stone, etc., which can expand the use range of the excavator, save time and improve work efficiency.
