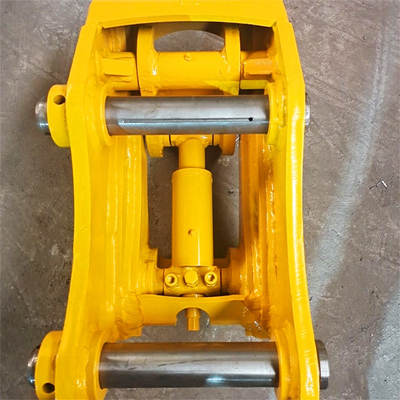

Description of Excavator Pin Grabber Quick Link
Excavator quick connector is divided into mechanical type and hydraulic type. There are two main buckles, one is fixed, the other is movable, through manual or hydraulic cylinder to tighten or relax the pivot end working attachment, so that the excavator front end working attachment can be replaced without removing the pin, work efficiency can be greatly improved.
Main features
1. Using Q345 manganese plate steel, high strength and corrosion resistance;
2. The pinis made of 42CrMu steel with high strength and toughness
3. The oil cylinder adopts honing tube imported, HALLITE oil seal, short working cycle and long life.
4. Removable tiger mouth spring disc protection design, bold design of safety pin, safe and reliable.
| Item/Model |
Unit |
ZHMINI |
ZH45 |
ZH50/55 |
ZH60/65 |
ZH70/80 |
ZH90 |
ZH100/110 |
| Suitable Excavator |
ton |
1.5-4 |
4-7 |
5-8 |
9-19 |
17-23 |
23-30 |
33-45 |
| Pin to Pin Center Distance |
mm |
80-150 |
230-270 |
290-360 |
380-420 |
460-480 |
473-540 |
550-620 |
| Forearm Open Width |
mm |
80-140 |
155-170 |
180-200 |
232-315 |
306-340 |
375-411 |
416-469 |
| Retractable Distance of Oil Cylinder |
mm |
170-206 |
205-275 |
340-450 |
340-486 |
256-390 |
413-590 |
520-590 |
| Top to Bottom Pin Distance |
mm |
159 |
195 |
195 |
220 |
275 |
300 |
360 |
| Pin Diameter |
mm |
25-40 |
45-50 |
50-55 |
60-70 |
70-80 |
80-90 |
90-120 |
| Norking Pressure |
bar |
32-40 |
32-40 |
32-40 |
32-40 |
32-40 |
32-40 |
32-40 |
| Working Flow |
lpm |
10-20 |
10-20 |
10-20 |
10-20 |
10-20 |
10-20 |
10-20 |
Our quick hitch is suitable for every brand excavator, always welcome to contact Aria.
click here to chat with Aria: Whatsapp/wechat/tel: 0086 13822325403
quick coupler hitch hyfraulic quick hitch coupler quick hitch excavator tilting quick hitch quick coupler hitch
More Details---Professional & Premium
For 20 ton excavator
kubota excavator quick hitch, quick change excavator bucket hitches, whites quick hitch, s quick hitch, excavator tilting quick hitch,
cylinder for quick hitch, excavator hydraulic quick hitch, cat 1 quick hitch.
Warranty
Production Advantages
Environmentally friendly spray booth
Large double-sided floor boring machine---more accurate
Automatic edge milling machine---enhance welding bead
CNC plasma cutting machine---more precision
ZHONGHE MACHINERY'S ADVANTAGES
1. 14000㎡ Workshop
2. High-tech R&D Team
3. More Than 60 Skillful Workers
4. Deep Customization(Color, length, material, bucket width, extra hydraulic tube, etc.)
5. Prompt Lead Time(7-20 days)
6. Online support within 24 hours.
CE certification & Utility model patent certificates
