Product Details:
|
| Type: | Excavator Extented Arm | Condition: | Perfect New , 100% New |
|---|---|---|---|
| Warranty: | 6 Months For Boom | After-sales Service Provided: | Online Quick Response |
| Application: | Groundwork, Dredge River | Maximum Length: | 14 Meters |
| Counterweight: | Accordance | Main Material: | Q355B, Q690D |
| High Light: | Excavator Long Boom Arm 14m,Q355B Extended Long Boom Arm,Groundwork Long Reach Excavator Booms |
||
Catalog of long reach boom.pdf
1. 14000㎡ Workshop with Precision Equipments
2. High-tech R&D Team
3. Experienced Workers
4. Customization
5. Prompt Lead Time (7-15 days)
6. Excellent Service

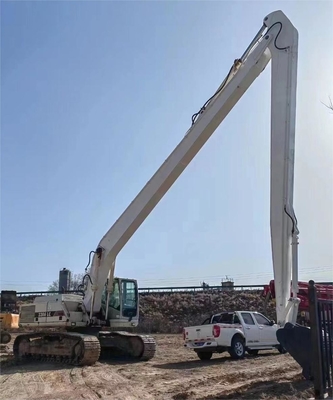

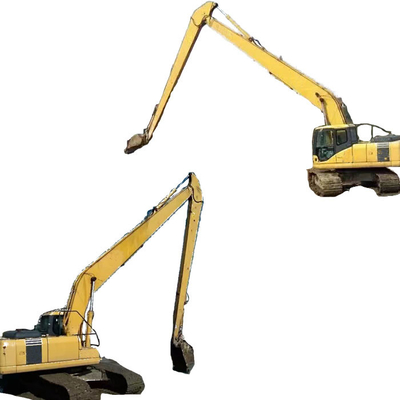

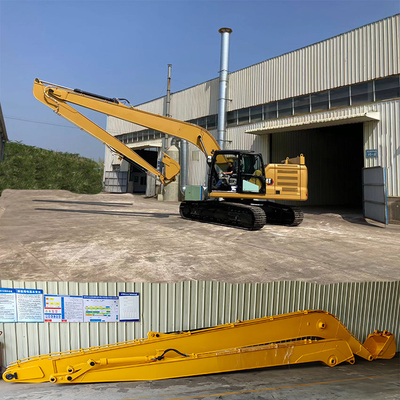

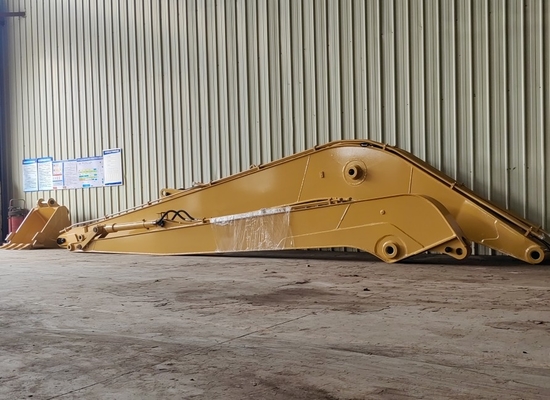

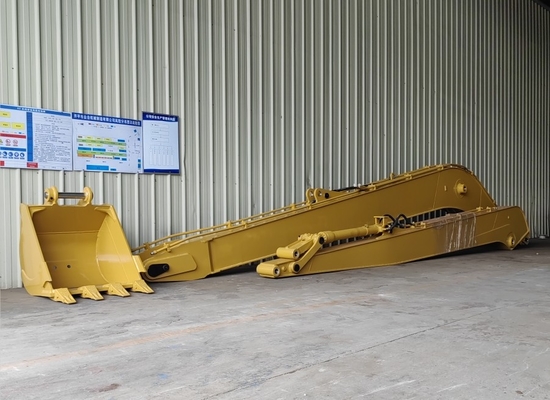

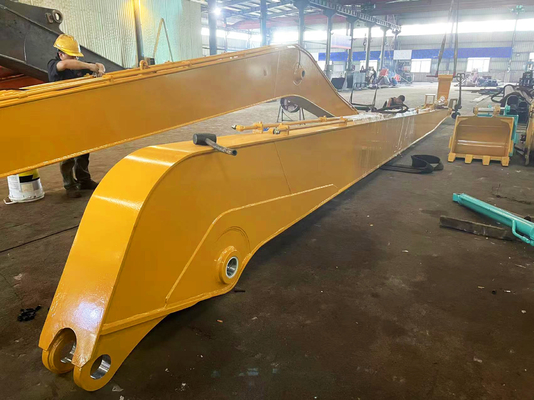

An excavator long boom arm is a large, articulated piece of equipment typically used on construction sites. This long arm allows the excavator to reach deeper into the ground and extend its reach to areas that are otherwise inaccessible. It is typically used to excavate large areas or to move heavy objects. The boom arm is connected to the excavator’s base, and is operated by the operator within the cab. The boom arm is hydraulically powered and can be adjusted to different angles and lengths, depending on the job requirements.
1. Q355B as default, Q690D optional.
2. Key Force-bearing Parts are Reinforced.
3. Welding is full and smooth.
4. Adopt national standard precision pipelines.
5. Boom bushing come with an alloy copper sleeve(with self-lubricating carbon powder inside).
1.Tell us your excavator model and working situation
2. We will send you a quota within 2 days after received your details
3. Check sumilation parameters
4. Make sure Performa Invoice
5. Done a payment
6. Production period
7. Video inspection after product done
8. Shipping period
9. Gain the product.
| Excavator Ton | Total Length(mm) | (A)Boom(mm) | (B)Arm(mm) | Maximum Digging Radius(mm) | Maximum Digging Depth(mm) | Maximum Unloading Height(mm) | Maximum Digging Height(mm) | Bucket Volume(cbm) | Cylinder(ton) |
| 11-15T | 13000 | 7250 | 5750 | 11200 | 9000 | 7550 | 9350 | 0.15-0.3 | 12T |
| 20-25T | 15400 | 8220 | 7180 | 14500 | 11300 | 10400 | 12600 | 0.4-0.6 | 12T |
| 20-30T | 18000 | 10000 | 8000 | 17300 | 13000 | 17200 | 14000 | 0.4-0.7 | 12T |
| 35-40T | 20000 | 11000 | 9000 | 19200 | 14900 | 12900 | 15200 | 0.6-1.2 | 12T |
| 40-45T | 22000 | 12000 | 10000 | 21300 | 16000 | 14000 | 17000 | 0.5-1 | 20T |
| 40-50T | 24000 | 13000 | 11000 | 23000 | 17900 | 15200 | 18100 | 0.5-1.1 |
1. Long reach excavator boom
2. Excavator telescopic boom
3. Demolition boom
4. Excavator rock bucket
5. Excavator tilting bucket
6. Hydraulic grabs for excavators
CE certification & Utility model patent certificates
