Product Details:
|
| Type: | Sliding Arm For Excavator | Condition: | Perfect New |
|---|---|---|---|
| Warranty: | Half Year, 3 Months | After-sales Service Provided: | Quick Online Response |
| Maximum Length: | 10 Meters | Bucket Capacity: | 0.5 CBM 0.8 CBM |
| Material: | Q345B/Q355B | Application: | Excavator |
| High Light: | Antiwear Excavator Sliding Arm,Cat320 10M Excavator Sliding Arm,Q355B Excavator Slide Boom |
||
Catalogue ZH excavator boom arm.pdf

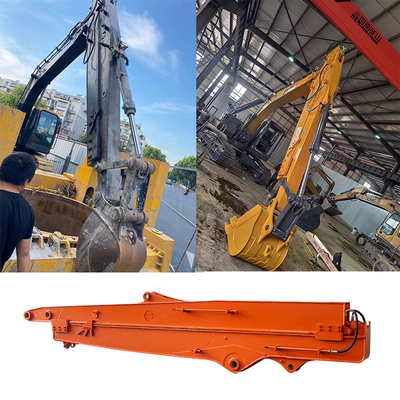

The excavator sliding arm is mainly divided into upper and lower parts, the upper part is a movable sliding body, and the lower part is a fixed body. A powerful telescopic oil cylinder is used to extend and retract the movable sliding body.
The upper part of the excavator sliding arm has a cylinder assembly and a piston rod. The cylinder assembly is mounted to the fixed body, and the piston rod is connected to the movable sliding body. When the cylinder assembly is pressurized, the piston rod extends, pushing the movable sliding body away from the fixed body. This extension of the piston rod causes the movable sliding body to slide along the inner rail of the fixed body. This movement of the movable sliding body allows the excavator to move and dig in different directions.
The lower part of the excavator sliding arm consists of a box frame, a base plate, and a rail. The box frame is fixed to the base plate, and the rail is mounted to the box frame. The movable sliding body is mounted with a pair of rollers that run along the rail, allowing it to slide along the rail and move in different directions.
1. High Strength: The sliding arm of the excavator is made of high-strength steel, which can withstand the high stress generated by the excavator during operation.
2. Durability: The sliding arm of the excavator is designed to be durable, which ensures that it can be used for a long time without any problems.
3. Smooth Operation: The excavator sliding arm is designed to provide smooth and precise operation, which allows for efficient operation of the excavator.
4. Easy Maintenance: The sliding arm of the excavator is designed to be easy to maintain, which allows for regular inspection and maintenance of the arm.
5. Reliability: The excavator sliding arm is designed for reliable operation, which ensures that it will be able to perform its duties as expected.
| Excavator Ton | (A)Maximum working Length of arm | (B)Maximum digging height | (C)Maximum digging radius(mm) | Bucket Volume(cbm) | Counter Weight(Ton) |
| 12-15T | 5700 | 8000 | 10400 | 0.2-0.3 | |
| 20-25T | 9150 | 10100 | 13000 | 0.4-0.7 | |
| 20-25T | 11000 | 12300 | 15200 | 0.4-0.7 | 1-2T |
| 30-35T | 11000 | 12000 | 15800 | 0.6-0.9 | |
| 40-45T | 12100 | 16000 | 19200 | 0.8-1.3 |
