Product Details:
|
| Application: | Excavator Attached | Material: | Q355B, NM400 |
|---|---|---|---|

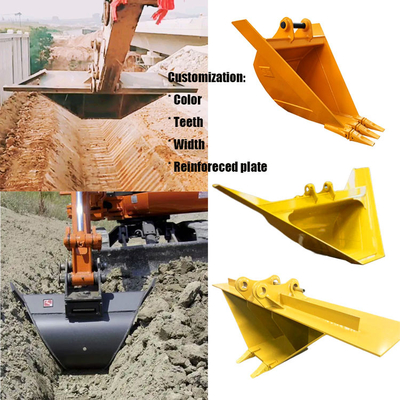

| Condition: | Total New | Optional: | Color, Teeth, Width |
| Volumn: | 1-2 Cbm | Shape: | Triangle/tranpezoida |
| High Light: | Oem Excavator V Ditch Bucket,Odm Excavator V Ditch Bucket,Hitachi Excavator V Ditch Bucket |
||
Catalogue ZH excavator boom arm.pdf

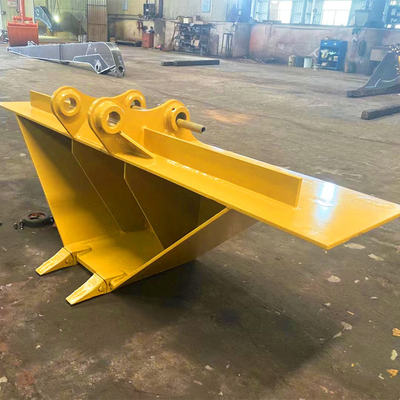

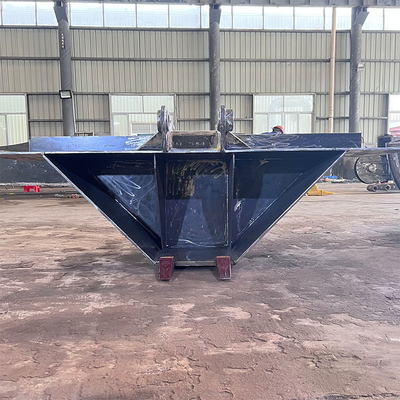

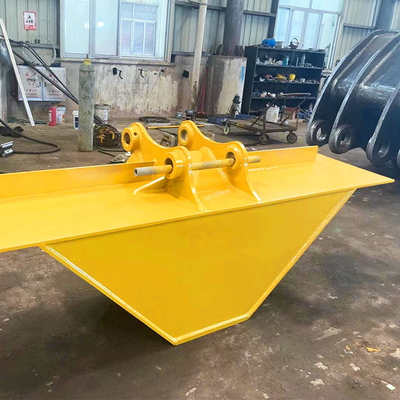

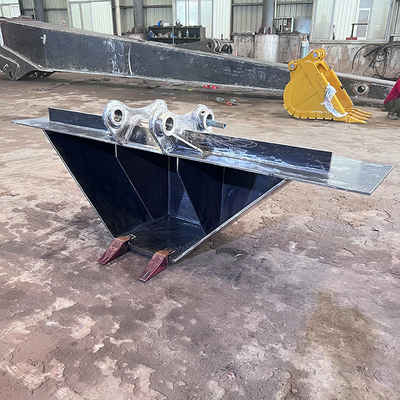

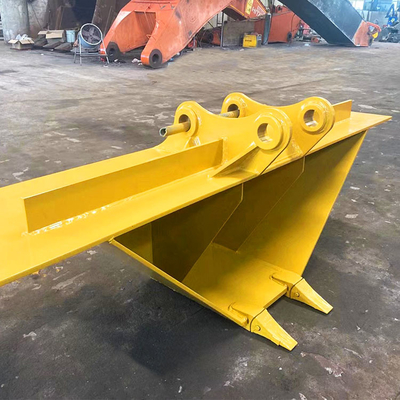

An excavator V bucket is a type of attachment that is used with an excavator to dig and move soil and other materials. The V bucket is shaped like a "V" and is used for digging trenches, moving large amounts of soil, and for other digging applications. It is available in a variety of sizes and styles to suit different types of excavating needs. The V bucket is typically made of Q355B, NM400, hardox500 and is designed to be strong enough to withstand the force of the excavator's digging action.
| Volunm(cbm) | excavator model(ton) | weight(kg) |
| 0.4 | 10-12T | 400 |
| 0.6 | 12-15T | 650 |
| 0.8 | 18-20T | 1170 |
| 1 | 20T | 1270 |
| 1.1 | 20-22T | 1200 |
| 1.2 | 22-24T | 1300 |
| 1.3 | 24-27T | 1400 |
• Heavy duty construction to withstand extreme conditions
• Reversible cutting edge for increased wear life
• High-tensile strength steel construction
• Ideal shape for efficient digging and easy loading
Durability: V buckets are built to last, with robust construction and high-quality materials Q335B as default, NM400 and Hardox500 are optional.
Efficiency: V buckets are able to dig faster, more efficiently and with greater precision than other types of buckets when digging a V shaped trench.
Easy to use: V buckets are easy to install and operate
1. Standard bucket
Q355B material, standard plate thickness, and China high-quality bucket tooth base. It is mainly applicable to light operation occasions such as excavation of general clay and loading of sand, soil and gravel.
Q355B material, NM400 optional. On the basis of the standard bucket, reinforcing plates are added at the bottom, and the tooth plate and side plate are thickened. It is mainly applicable to heavy and light industrial occasions such as excavation of hard soil and loading of soil, gravel and gravel mixed with soft sand.
3. Heavy duty rock bucket:
Q355B+Hardox500. On the basis of the reinforced bucket, the bottom plate and side plates are thickened. It is mainly applicable to the excavation of hard rocks, secondary hard rocks and wind fossils mixed in the soil; Loading of hard rock and ore after blasting.
5. Tilt bucket for mini excavator
6. Clamshell excavator bucket
8. Excavator Ripper
1. 14000㎡ Workshop with Precision Equipments
2. High-tech R&D Team
3. Experienced Workers
4. Customization
5. Prompt Lead Time (7-15 days)
6. Excellent Service
1. Long reach excavator boom
2. Excavator telescopic boom
3. Demolition boom
4. Excavator rock bucket
5. Excavator tilting bucket
6. Hydraulic grabs for excavators
CE certification & Utility model patent certificates
