Product Details:
|
| Application: | Digging V Ditch | Material: | Q355B, NM400, Hardox500 |
|---|---|---|---|
| Condition: | Perfect New | Customization: | Width, Color, Teeth |
| Volumn: | 1-2.2 Cbm | Shape: | Triangle |
| High Light: | Durable V Ditch Bucket,Excavator Trapezoidal Ditch Bucket,Hardox500 Trapezoidal Ditch Bucket |
||
click here to have our catalog: Zhonghe Machinery Catalog-Contact Sales Manager Aria

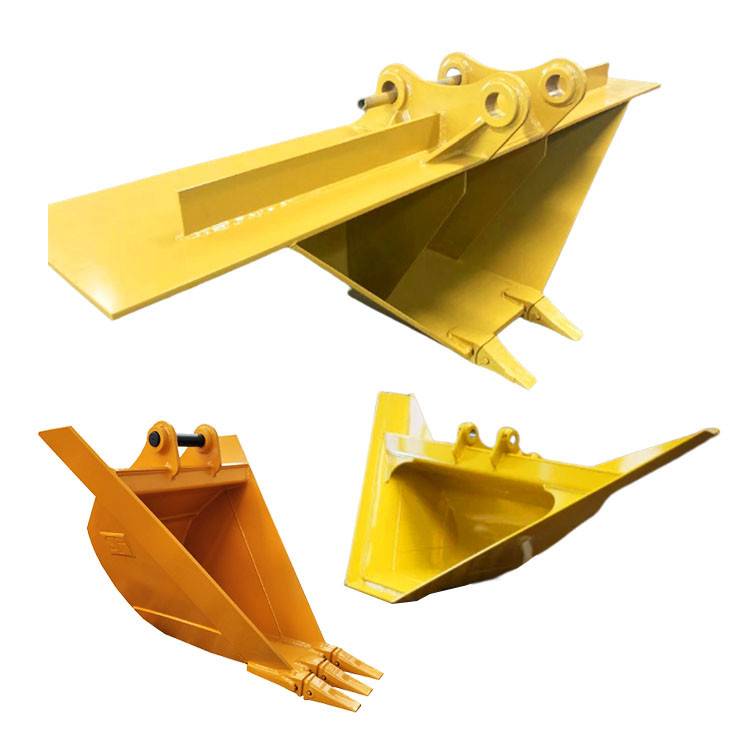

A V ditch bucket is a specialized type of excavator bucket designed to dig narrow, deep trenches, or "ditches". It is ideal for digging ditches that are too small or too deep for a standard bucket. It is also commonly used to dig drainage pipes and other drainage structures
| Volunm(cbm) | excavator model(ton) | weight(kg) |
| 1 | 20T | 1270 |
| 1.1 | 20-22T | 1200 |
| 1.2 | 22-24T | 1300 |
| 1.3 | 24-27T | 1400 |
| 1.5 | 28-30T | 1600 |
| 1.6 | 30-35T | 1700 |
| 1.8 | 36-38T | 1900 |
| 2 | 40-45T | 2100 |
| 2.2 | 40-45T | 2400 |
| 2.5 | 50-55T | 2700 |
• Hardened steel sides and reinforced bottom
• Wide range of sizes to fit most excavators
• Self-sharpening teeth for improved performance
• Holes for easy bolt-on tooth installation
1. The V-Ditch Bucket allows the excavator to quickly dig a V-shaped trench in a variety of soil conditions.
2. It is designed to allow the excavator to dig a very precise trench, even in tight spaces.
3. It is easy to use and can be adjusted to dig a variety of depths and widths.
1. Standard bucket
Q355B material, standard plate thickness, and China high-quality bucket tooth base. It is mainly applicable to light operation occasions such as excavation of general clay and loading of sand, soil and gravel.
2. Rock bucket
Q355B material, NM400 optional. On the basis of the standard bucket, reinforcing plates are added at the bottom, and the tooth plate and side plate are thickened. It is mainly applicable to heavy and light industrial occasions such as excavation of hard soil and loading of soil, gravel and gravel mixed with soft sand.
3. Heavy duty rock bucket:
Q355B+Hardox500. On the basis of the reinforced bucket, the bottom plate and side plates are thickened. It is mainly applicable to the excavation of hard rocks, secondary hard rocks and wind fossils mixed in the soil; Loading of hard rock and ore after blasting.
4. Skeleton excavator bucket
5. Tilt bucket for mini excavator
6. Clamshell excavator bucket
7. Grading ditching bucket
8. Excavator Ripper
9. Excavator Log Grapple
1. 14000㎡ Workshop with Precision Equipments
2. High-tech R&D Team
3. Experienced Workers
4. Customization
5. Prompt Lead Time (7-15 days)
6. Excellent Service
1. Long reach excavator boom
2. Excavator telescopic boom
3. Demolition boom
4. Excavator rock bucket
5. Excavator tilting bucket
6. Hydraulic grabs for excavators
CE certification & Utility model patent certificates
