Product Details:
|
| Application: | Digging V Trench | Material: | Q355B, Hardox500, NM400 |
|---|---|---|---|

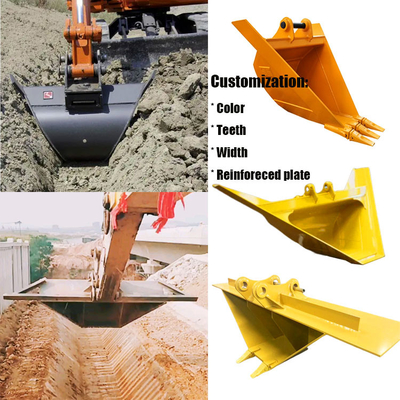

| Condition: | New , High Quality | Customization: | Teeth, Width, Color |
| Volumn: | 1-3 Cbm | Shape: | Trapezoidal, V Shape |
| High Light: | Sk300 V Ditch Excavator Bucket,Sk200 V Ditch Excavator Bucket,Kobelco Excavator V Bucket |
||
ZH Excavator Attachment Catalog-Nina.pdf

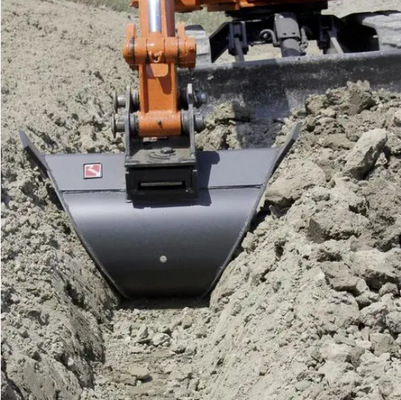

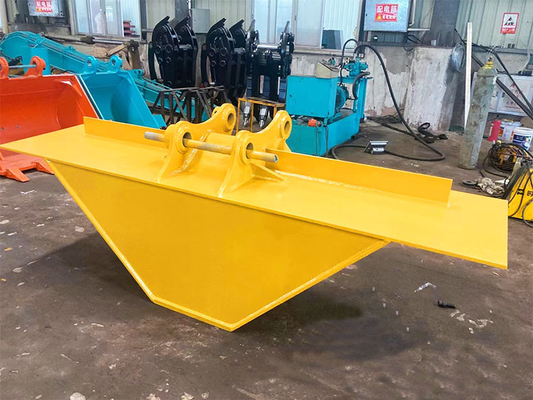

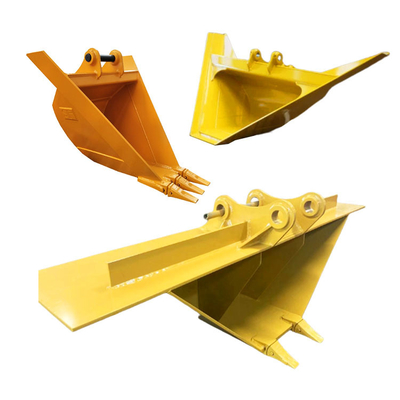

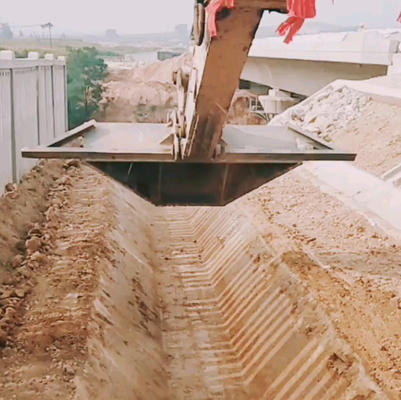

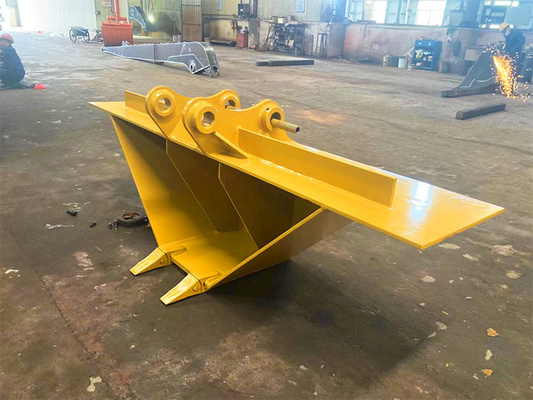

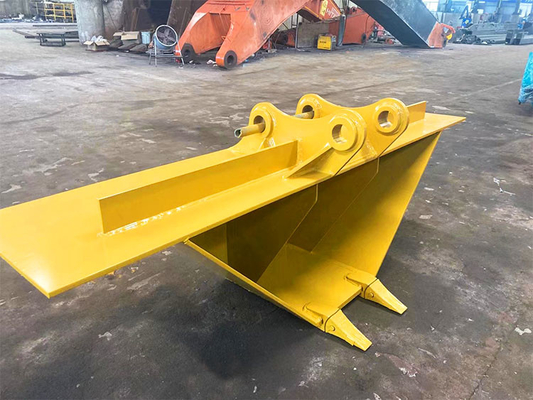

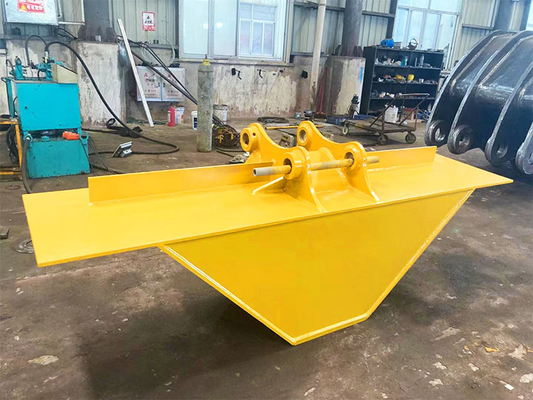

Excavator V Ditch Bucket is an excavator bucket designed specifically for creating drainage channels, also known as V ditches or V drains. The excavator trapezoidal bucket is designed with a curved bottom and flared sides to create the V shape. It can be used to create water channels and drainage ditches, as well as to remove material from slopes and embankments.
| Volunm(cbm) | excavator model(ton) | weight(kg) |
| 1 | 20T | 1270 |
| 1.1 | 20-22T | 1200 |
| 1.2 | 22-24T | 1300 |
| 1.3 | 24-27T | 1400 |
| 1.5 | 28-30T | 1600 |
| 1.6 | 30-35T | 1700 |
| 1.8 | 36-38T | 1900 |
| 2 | 40-45T | 2100 |
| 2.2 | 40-45T | 2400 |
| 2.5 | 50-55T | 2700 |
1. The trapezoidal bucket has a wider blade at the front and a narrower blade at the back, which helps to direct the excavated material towards the sides of the bucket, leaving a clear path for the bucket to cut through the material.
2. Trapezoidal buckets are designed to allow the operator to dig in a range of different angles and depths for a variety of applications.
1. Improved digging performance: The V-shaped design of the bucket allows for better penetration and improved digging performance, especially in hard and compacted soil.
2. Increased productivity: The improved digging performance of the V ditch bucket can enable operators to complete digging tasks faster and with fewer passes, resulting in increased productivity.
3. Reduced wear and tear: The V-shaped design of the bucket means that its cutting edges are subjected to less wear and tear than other types of buckets, which can reduce maintenance costs and increase the lifespan of the bucket.
4. Better material retention: The V-shaped design of the bucket also means that material is better retained in the bucket, reducing spills and increasing efficiency.
5. Versatility: V ditch buckets are versatile and can be used for a variety of applications, including ditch digging, grading, and slope work.
Q355B material, standard plate thickness, and China high-quality bucket tooth base. It is mainly applicable to light operation occasions such as excavation of general clay and loading of sand, soil and gravel.
2. Rock bucket
Q355B material, NM400 optional. On the basis of the standard bucket, reinforcing plates are added at the bottom, and the tooth plate and side plate are thickened. It is mainly applicable to heavy and light industrial occasions such as excavation of hard soil and loading of soil, gravel and gravel mixed with soft sand.
Q355B+Hardox500. On the basis of the reinforced bucket, the bottom plate and side plates are thickened. It is mainly applicable to the excavation of hard rocks, secondary hard rocks and wind fossils mixed in the soil; Loading of hard rock and ore after blasting.
4. Skeleton excavator bucket
A skeleton excavator bucket, also known as a sieve bucket or sorting bucket, is a type of excavator bucket designed for sifting and sorting materials. It has a distinctive design with large gaps or openings between the bucket teeth, allowing smaller materials to fall through while retaining larger materials.
5. Tilt bucket for mini excavator
A tilt bucket for a mini excavator allows the bucket to tilt up to 45 degrees in either direction, providing greater flexibility and control during excavation, grading, and landscaping tasks. The tilt bucket can create slopes, ditches, and trenches with precise angles and grades.
1. 14000㎡ Workshop with Precision Equipments
2. High-tech R&D Team
3. Experienced Workers
4. Customization
5. Prompt Lead Time (7-15 days)
6. Excellent Service
CE certification & Utility model patent certificates
