Product Details:
|
| Video Outgoing-inspection: | Provided | Marketing Type: | New Product 2021 |
|---|---|---|---|
| Warranty: | 1 Year | Weight: | 5800kg |
| Suitable Excavator(ton): | 36ton | Core Components: | Gear |
| Material: | Q690D+Q355B | Max Vertical Digging Depth: | 25m |
| MOQ: | 1 | Bucket Capacity: | 1.5cbm |
| Port: | Shenzhen Yantian Port | ||
| High Light: | Komatsu PC360 Clamshell Telescopic Arm,25 Meters Clamshell Telescopic Arm,Multipurpose Telescopic Long Reach Boom |
||
Komatsu PC360 Clamshell Telescopic Arm 25 Meters Multipurpose , Telescopic long reach boomZhonghe Machinery Catalogue- From Sophia whatsapp ...

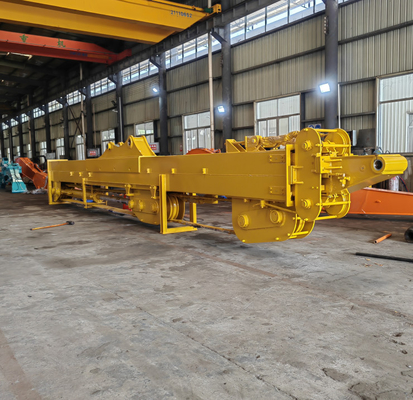

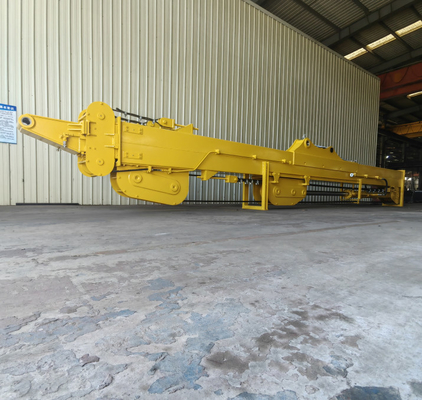

3 section Telescopic arm
| Model | Length | vertical digging depth | Transportation height | Bucket capacity | Working weight |
| 20-25T | 18m | 18m | 3m | 0.5m³ | 3.4T |
| 30-35T | 28m | 28m | 3.2m | 2m³ | 7T |
| 40-50T | 32m | 32m | 4m | 2.2m³ | 9T |

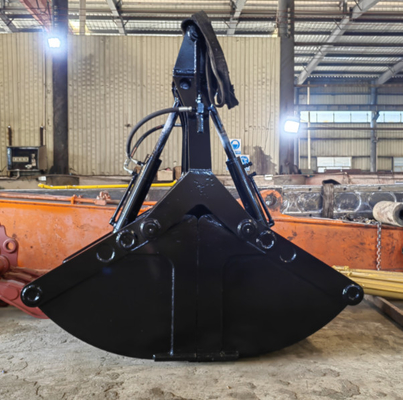

1. Structure composition: The three-section telescopic arm is the same as the log collecting arm, and the telescopic arm usually carries a clamshell bucket or GP bucket.
2. Product details: The telescopic arm can be made of Q690D-Q960 material according to the requirements, with much deeper excavation depth, simple and convenient operation, safe and reliable.

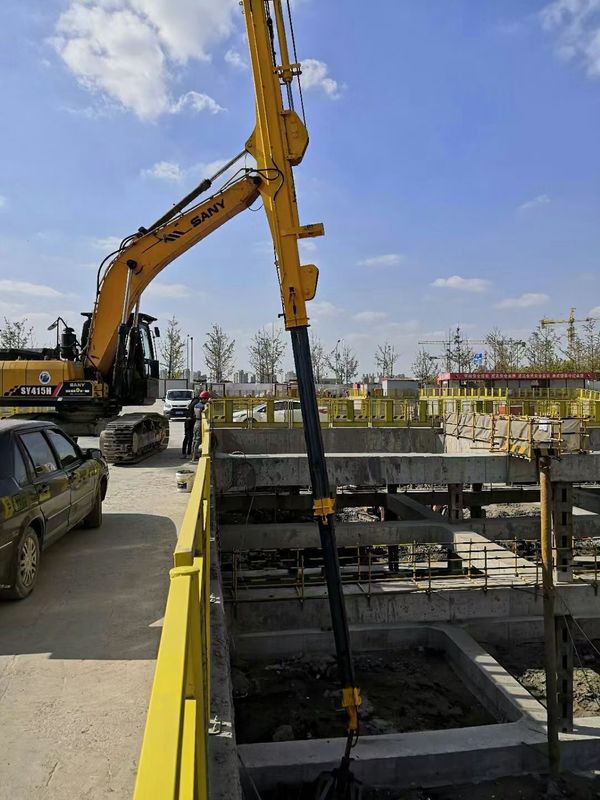

3. Scope of application: subway, foundation pit, basement, tunnel and other narrow deep excavation conditions.
