Product Details:
|
| Type: | Excavator Long Boom And Stick | Condition: | 100% New With Good Quality |
|---|---|---|---|
| Warranty: | 6 Months For Boom Body | After-sales Service: | Response Online Quickly |
| Application: | For All Brand Excavator | Max Depth: | 14900mm |
| Max Height: | 15200mm | Max Radius: | 19200mm |
| Main Material: | Q355B, Q690D | Extra Pipelines: | Optional |

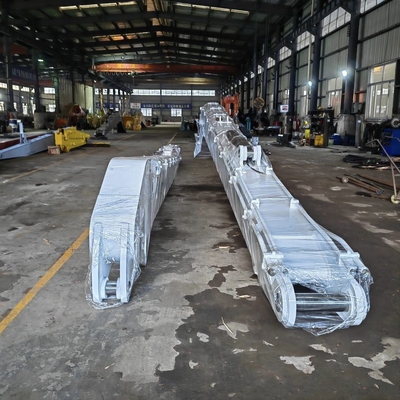

| Certification: | CE Certification | Package: | Bubble Bag |
| High Light: | Q355B Long Boom Arm,Q690D Long Boom Arm,Extension Long Reach Excavator Booms |
||
Please click Catalog of long reach boom.pdf
1. 18000㎡ Workshop with Precision Equipments
2. 100+ Staffs with a High-tech R&D Team
3. Support Deep Customization
4. Quick Production Time (7-15 days)

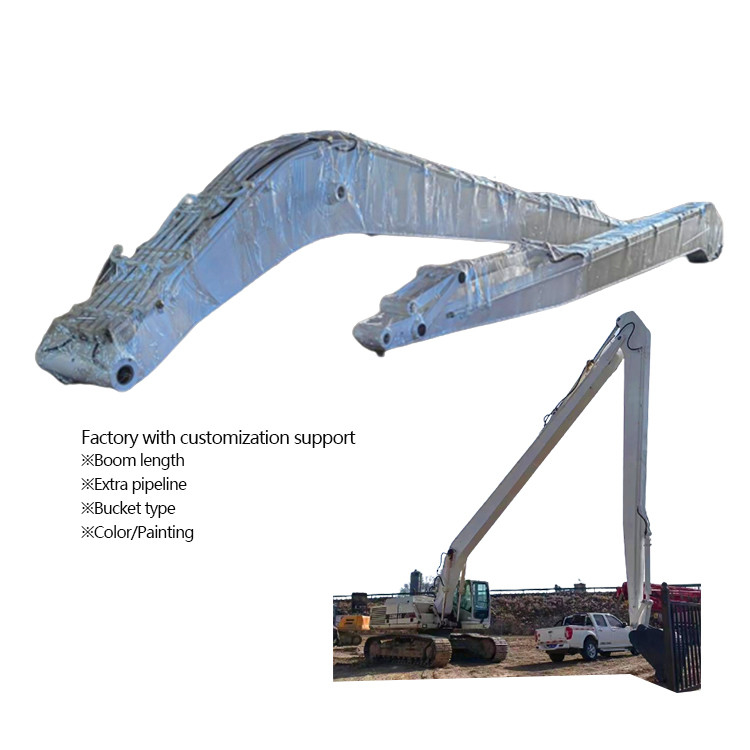

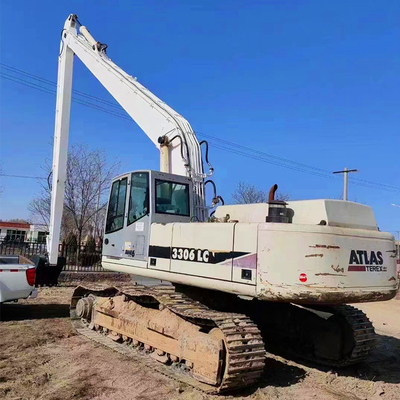

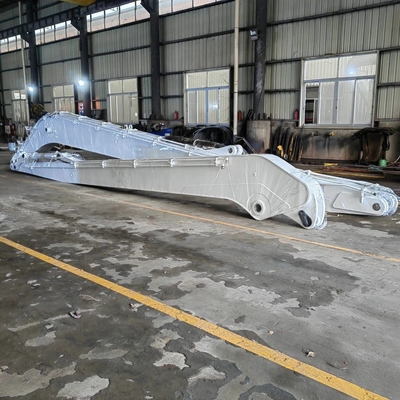

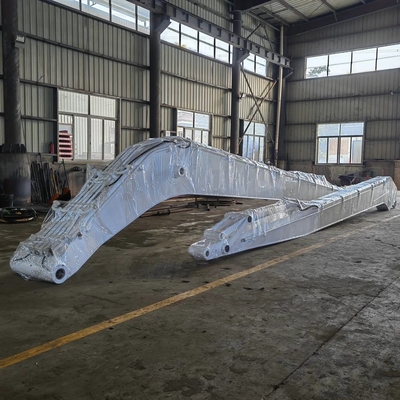

An excavator long boom is an extension to the standard arm of an excavator, which allows it to reach further and deeper than a regular excavator arm. The long boom is typically used in situations where the excavator needs to reach areas that are difficult to access or where a standard excavator arm is not long enough. The long boom is usually made of high-strength steel and is designed to support the weight of the excavator's bucket or other attachments at the end of the boom. The length of the long boom can vary depending on the specific application and the size of the excavator, and it may be equipped with additional hydraulic cylinders to increase its reach and lifting capacity.
1. Q355B as default, Q690D optional.
2. Key Force-bearing Parts are Reinforced.
3. Welding is full and smooth.

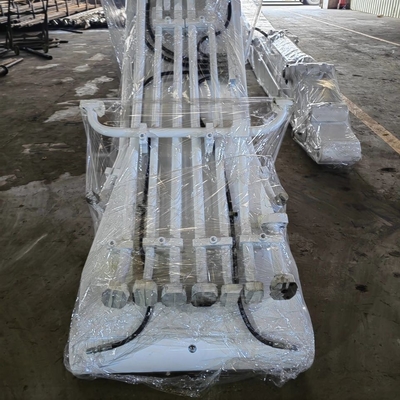

4. Adopt national standard precision pipelines.
5. Boom bushing come with an alloy copper sleeve(with self-lubricating carbon powder inside).
1. Tell us your excavator model and working situation
2. We will send you a quota within 2 days after received your details
3. Check sumilation parameters
4. Make sure Performa Invoice
5. Done a payment
6. Production period
7. Video inspection after product done
8. Shipping period
9. Gain the product.
| Excavator Ton | Total Length(mm) | (A)Boom(mm) | (B)Arm(mm) | Maximum Digging Radius(mm) | Maximum Digging Depth(mm) | Maximum Unloading Height(mm) | Maximum Digging Height(mm) | Bucket Volume(cbm) | Cylinder(ton) |
| 11-15T | 13000 | 7250 | 5750 | 11200 | 9000 | 7550 | 9350 | 0.15-0.3 | 12T |
| 20-25T | 15400 | 8220 | 7180 | 14500 | 11300 | 10400 | 12600 | 0.4-0.6 | 12T |
| 20-30T | 18000 | 10000 | 8000 | 17300 | 13000 | 17200 | 14000 | 0.4-0.7 | 12T |
| 35-40T | 20000 | 11000 | 9000 | 19200 | 14900 | 12900 | 15200 | 0.6-1.2 | 12T |
| 40-45T | 22000 | 12000 | 10000 | 21300 | 16000 | 14000 | 17000 | 0.5-1 | 20T |
| 40-50T | 24000 | 13000 | 11000 | 23000 | 17900 | 15200 | 18100 | 0.5-1.1 |
1. Long reach excavator boom
2. Excavator telescopic boom(Click here)
3. Demolition boom(Click here)
4. Excavator rock bucket
5. Excavator tilting bucket
6. Hydraulic grabs for excavators
