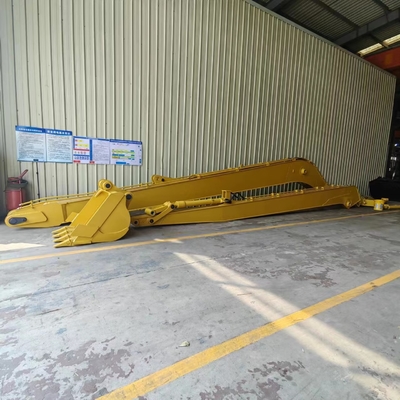

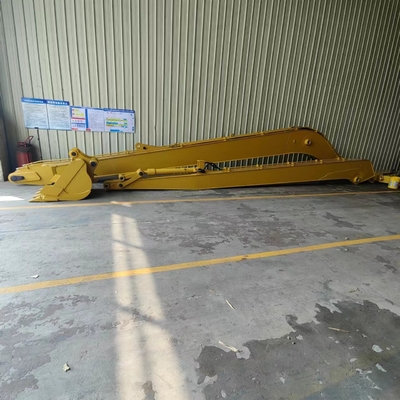

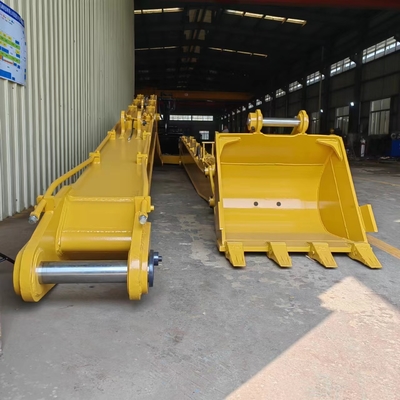

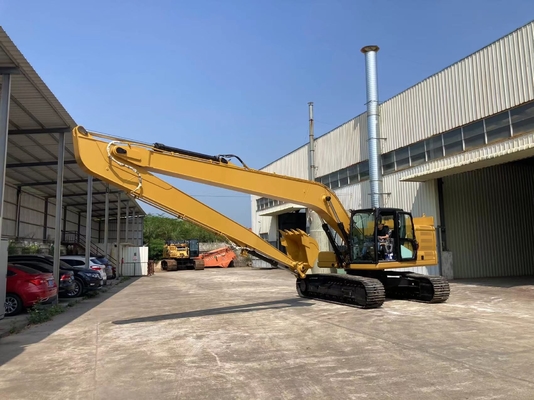

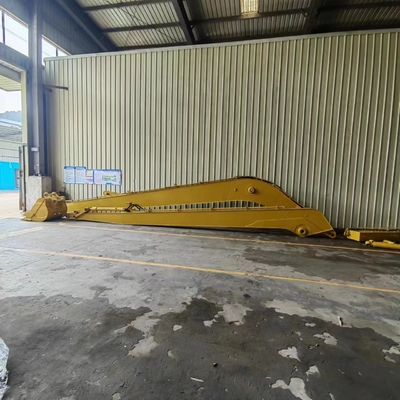

Best supplier 18 Meters Excavator Long Arm , OEM Long Reach Boom 20-50ton for PC120 CAT320
2024 Zhonghe Machinery Catalogue 3M.pdf
| Excavator (ton) |
Total Length(mm) |
(A)Boom
(mm) |
(B)Arm
(mm) |
Maximum Digging Radius(mm) |
Maximum Digging Depth(mm) |
Maximum Unloading Height(mm) |
Maximum Digging Height(mm) |
Bucket Volume(cbm) |
Cylinder(ton) |
| 11-15T |
13000 |
7250 |
5750 |
11200 |
9000 |
7550 |
9350 |
0.15-0.3 |
12T |
| 20-25T |
15400 |
8220 |
7180 |
14500 |
11300 |
10400 |
12600 |
0.4-0.6 |
12T |
| 20-30T |
18000 |
10000 |
8000 |
11800 |
13000 |
17200 |
14000 |
0.4-0.7 |
12T |
| 35-40T |
20000 |
11000 |
9000 |
19200 |
14900 |
12900 |
15200 |
0.6-1.2 |
12T |
| 40-45T |
22000 |
12000 |
10000 |
21300 |
16000 |
14000 |
17000 |
0.5-1 |
20T |
| 40-50T |
24000 |
13000 |
11000 |
23000 |
17900 |
15200 |
18100 |
0.5-1.1 |
20T
|
ZHONGHE MACHINERY'S ADVANTAGES
1. 14000㎡ Workshop with Precision Equipments
We has more than 14000㎡ steel structure standard workshop with a large number of high precision processing equipments.
2. High-tech R&D Team
We use precision drawing software to achieve the max working range under the premise of safe operation.
3. Experienced Workers
There are more than 60 skillful staffs, 30 welding workers with over 5 years welding experience.
4. Customization
(1)Match all brand excavator.
(2)Color, length, material can do according to you.
(3)Extra pipeline can be added to suit to some extra application.
5. Prompt Lead Time
(1)Our lead time is 7-15 days.
(2)Our annual output of various types of excavator boom arms can reach 600 sets.
6. Excellent Service
(1)24 hours online service.
(2)Can make an appointment for technical video support.
ZHONGHE excavator boom experience
Our chief engineers have the experience on customizing different kinds of excavator booms over 10 years.
Excavator long boom, excavator sliding boom, excavator telescopic arm, demolition boom are our top picks, as well as excavator pile driving boom, excavator tunnel boom, excavator standard boom, excavator grab boom.
In addition, we have customized more than 100 sets of heavy duty long excavator booms for powerful excavator ( clawer or floating platform) , like EX2500, EX1200, EX1900, SY980.
Therefore, we are one of the most experienced manufacturers of heavy duty excavator long arm in China
1. Our R&D team use precision software to design and do the simulation diagram.
2. Our workers do well during the production
3. Our quality control apartment is strict and accurate with product qualification rate reaches 99.5%.
Advangtages of ZHONGHE Excavator Long Arm
FIRST--CORE CRAFT TECHNOLOGY
1. Less maintaince
Using high quality materials, such as Q355B as default, Q690D optional, Niningbo connectors, seamless precision piplines, graphite alloy copper sleeve, strong but light bucket cylinder.
2. Strong and sturdy
Built-in reinforcing ribs. Professional welding skill towards different bearing position. Groove preparation(45° edge-mining) before welding.
SECOND--CORE DESIGN TECHNOLOGY
1. Tolerance within 5-10um
Hole drilling tolerance is within 5-10um, ensure the accuracy.
2. Reach deeper and higher
Max work range and the max digging height are larger as angle of boom and arm can reach 163 degrees.
3. High work efficiency and save fuel
Lighter while taking into account the quality, it not only ensures work efficiency but also saves fuel.
Certification of Rock bucket
1. You are a trader or a manufacture?
We are an industry and trade integration business,
Our factory located in 9 Huancui West Road, Cuishanhu New Area, Kaiping City, Guangdong Province, China
2. How can I be sure the product is right for my machine?
Please provide the part number of our product or the serial number of the machine. And we can customize for you according to drawings and sizes.
3. How to choose payment terms?
We usually accept T/T or Trade Assurance. other terms also could be negotiated.
4. What is your MOQ?
It depends on the product you ordered. We can LCL or 20ft container for you
5. What is your delivery time please?
If the goods are in stock, we can arrange delivery and transportation for you in 2-5 days. If it needs to be produced, it will take about 10-20 days.
6. How is the quality of the product?
We have a perfect quality system to produce perfect products. And we can provide customers with products suitable for customers according to their requirements.
