Introduction of excavator telescopic boom with bucket:
Introduction:

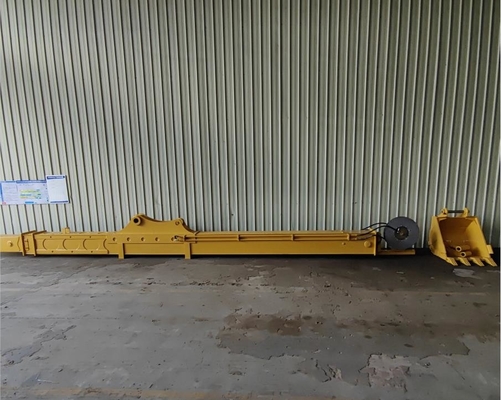

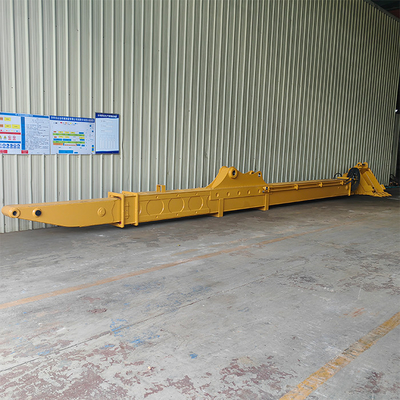

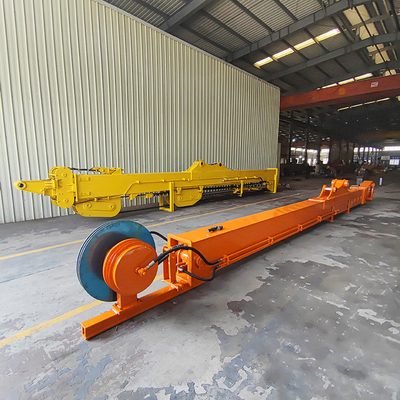

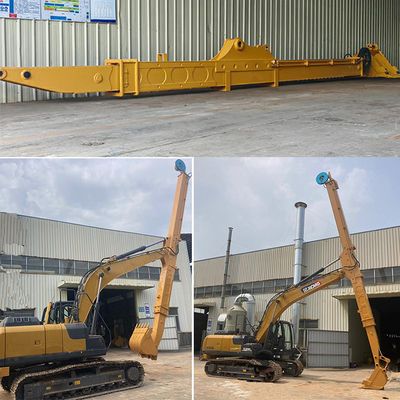

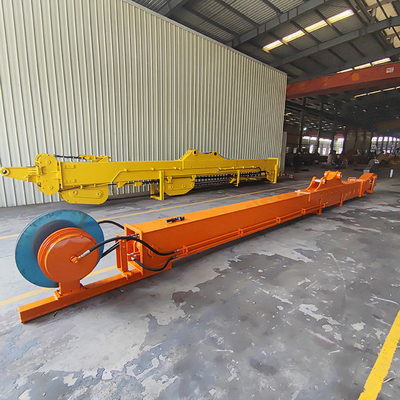

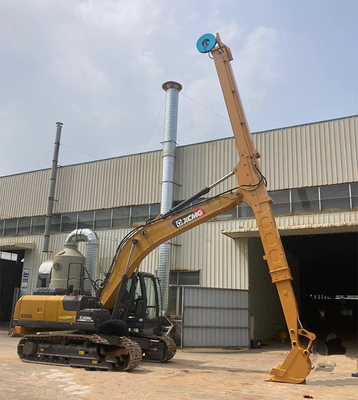

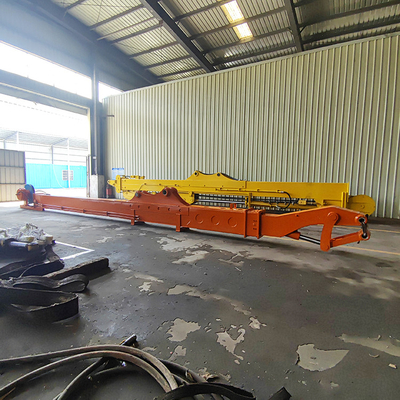

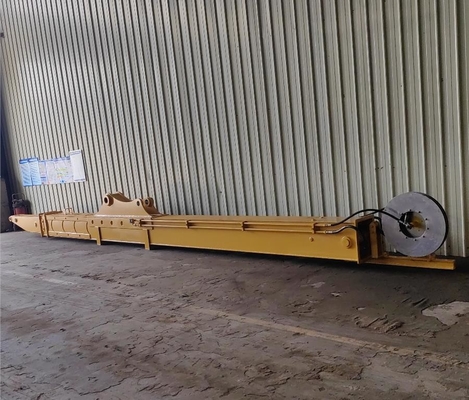

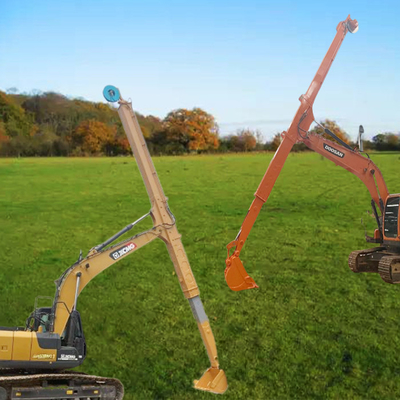

Excavator Telescopic Arm, also go by Telescopic Dipper Arm, is a working device installed on the excavator, usually work with clamshell grab or other grab buckets. It consists of the fixed body and the mobile body that can extend and retract the mobile body through the action of the telescopic cylinders, to achieve a larger excavation radius and a reasonable loading height. This type of working device is called a telescopic arm.
Application area:
Widely used in the construction of urban streets such as subway excavation and foundation pit excavation of viaducts. Working under limited radius.
| excavator model(ton) |
bucket(cbm) |
bucket cylinder |
digging length(m) |
| 6T |
0.2 |
6T |
6 |
| 10-12T |
0.2 |
6T |
10 |
| 20-27T |
0.4 |
20T |
12 |
| 30-36T |
1 |
30T |
12 |
| 20-27T |
0.4-0.6 |
20T |
14 |
| 20-27T |
0.8 |
30T |
14 |
| 30-36T |
1 |
35T |
14 |
| 30-36T |
0.8 |
30T |
14 |
| 30-36T |
1 |
35T |
15 |
| 24-28T |
0.8 |
30T |
15 |
| 24-28T |
0.4 |
20T |
16 |
| 30-36T |
0.8 |
22T |
16 |
customization service is always available. Please send your excavator model to Aria~~
and then we will make a quotation to you accordingly.
Features:
Material:
The tube of the two-section telescopic boom is Q690 / HG785. Lighter and stronger.
The other parts we use is Q335B.
The welding wire is Jinqiao welding wire---premium welding wire
The pipe is seamless pipe---avoid oil leackage
Sleeve is Graphite sleeve---better wear resistant
(Robust structure)
1. Bearing part with multi-layer reinforced
(Long service life)

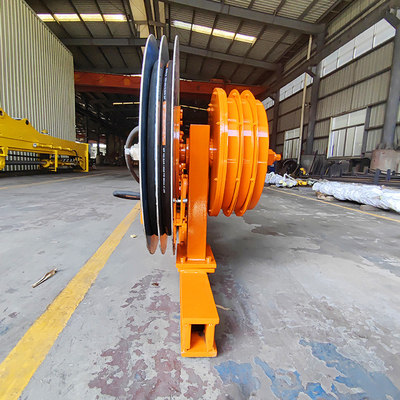

1. The reel adopts enlarged spring piece
2. Adopt 22-ton strong bucket cylinder
(Avoid oil leakage)
1. Hydraulic hoses are made of four-layer steel wire ring.
2. The telescopic cylinder adopts double oil seals
3. Bucket cylinder hose was built-in to avoids oil leakage caused by hose vibration
(Easy to maintain)
1. Lubrication system for sliders help support butter easily.
2. Bucket cylinder hoses can be replaced easily, without dismantling the arm.
Production advantages:
Large double-sided floor boring machine
CNC plasma cutting machine
Automatic edge milling machine
Environmentally friendly spray booth
Quality Control--professional, more accurate, high-effective:
Post-welding Testing
Accuracy Testing
Weld bead testing
Testing before send out goods
Operation Testing
The first system is the technical design drawing review mechanism
The second system is the semi-finished product review mechanism,(each process has a detection testing for the previous process)
The third system is the finished product testing.
(Before painting, the overall inspection is carried out to check whether the design size matches the welding size, and whether the installation size meets the design requirement.)
To sum up, every single ZHONGHE product has been passed the above three-stage inspection system to ensure that is qualified before shipping.
