Product Details:
|
| Type: | Excavator Sliding Boom | Warranty: | 90 Days For The Arm |
|---|---|---|---|
| After-sales Service Provided: | Online Service | Application: | All Excavators |
| Maximum Length: | 4 6 8 12 16meters | Main Material: | Default Q355B Or Q345B |
| Bucket Capacity: | 0.35-1 CBM | Color: | All Colors |
| High Light: | Excavator Sliding Boom Arm,Excavator Sliding Long Boom Arm,1 CBM Excavator Sliding Boom Arm |
||
Catalogue ZH excavator boom arm.pdf
Click for more details and discount
Email:Katherine@excavatorboomarm.com
1. 14000㎡ Workshop with Precision Equipments
2. High-tech R&D Team
3. Experienced Workers
4. Customization
5. Prompt Lead Time (7-15 days)
6. Excellent Service

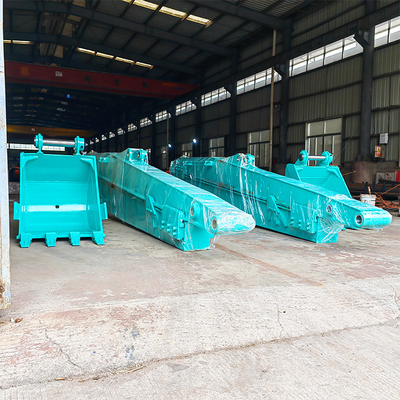

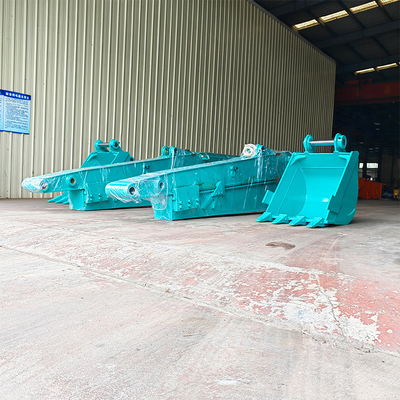

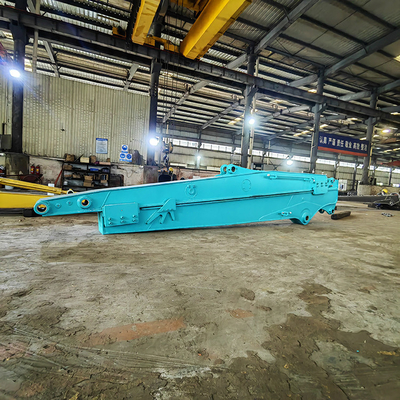

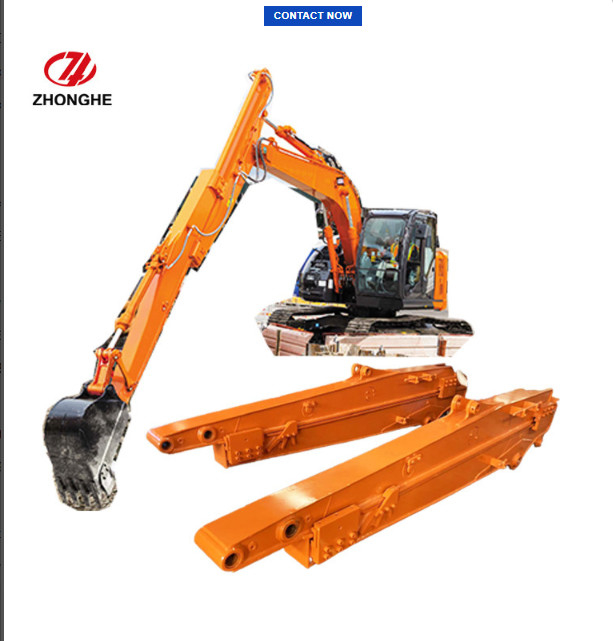

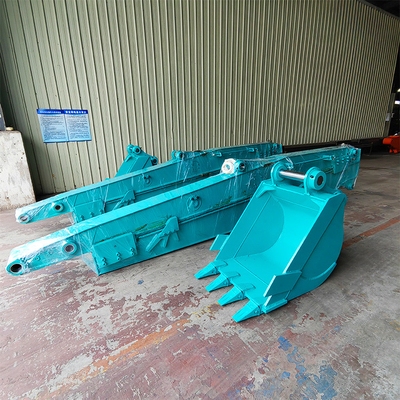

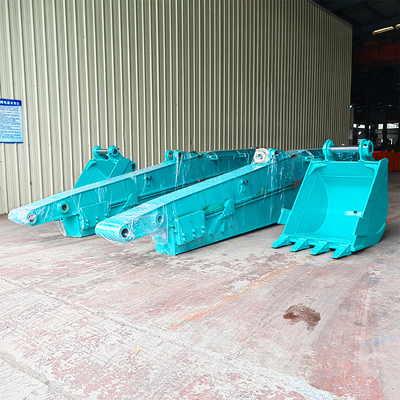

The excavator sliding arm is a versatile and reliable attachment designed for use with compact excavators. This high-quality attachment is manufactured by a leading supplier of heavy equipment attachments and offers exceptional performance and durability on the job site.
The excavator sliding arm features a unique design that allows the arm to extend and retract, providing increased reach and flexibility when working in tight or confined spaces. This makes it an ideal choice for contractors and construction professionals who need to access hard-to-reach areas quickly and efficiently.
(Long service life)
1.Double limit design of the sliding cylinder prevents cylinder jolting and over-pulling.
2.Steel sliders are welded between the skateboards to resist wear.
3.Adopt high-strength steel LG700, which can withstand the high stress generated by the excavator during operation.
| Excavator Ton | (A)Maximum working Length of arm | (B)Maximum digging height | (C)Maximum digging radius(mm) | Bucket Volume(cbm) | Counter Weight(Ton) |
| 12-15T | 5700 | 8000 | 10400 | 0.2-0.3 | |
| 20-25T | 9150 | 10100 | 13000 | 0.4-0.7 | |
| 20-25T | 11000 | 12300 | 15200 | 0.4-0.7 | 1-2T |
| 30-35T | 11000 | 12000 | 15800 | 0.6-0.9 | |
| 40-45T | 12100 | 16000 | 19200 | 0.8-1.3 |
