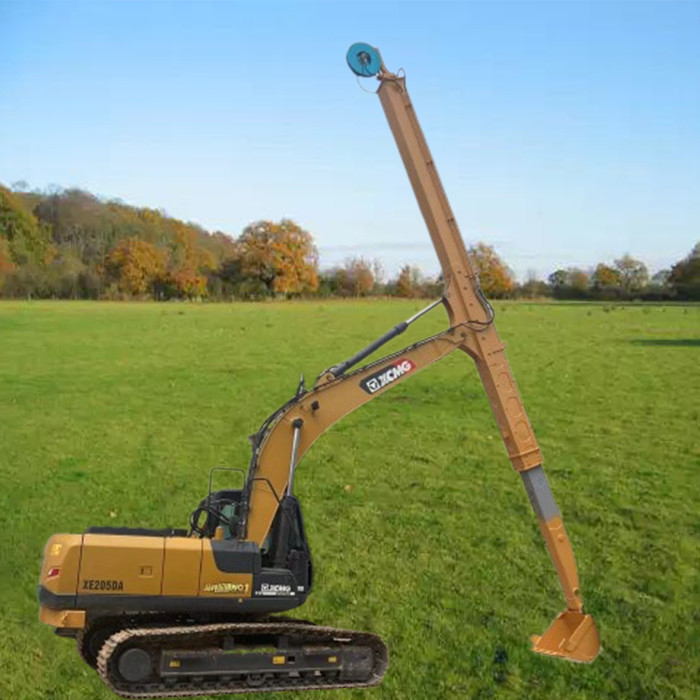

Multiple Guarantees high-strength excavator telescopic arm for EX60, PC100, PC200, CAT336, etc

Click Here To Get Our Catalogue ZH excavator boom arm.pdf

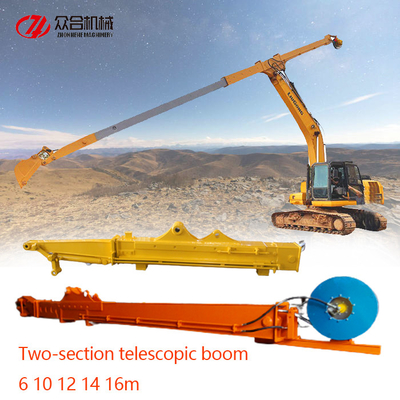

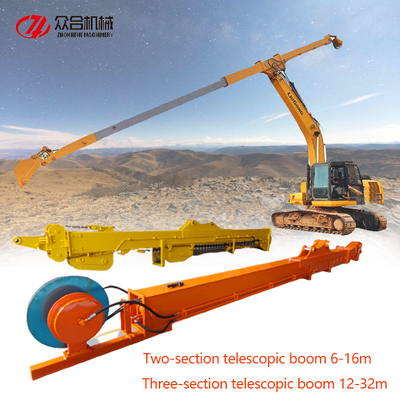

A two-section telescopic boom arm is a type of boom arm commonly used in various applications, such as construction, transportation, and forestry. The two-section design means that the boom arm has two telescoping sections that can be extended to reach different heights and lengths.

Here are some highlights of a two-section telescopic boom arm:

Versatility: The two-section telescopic boom arm is versatile and can be used for a wide range of applications. It can be used to lift and move heavy loads, as well as to reach heights that are difficult to reach with other types of equipment.

Compact design: The two-section telescopic boom arm is designed to be compact, which means that it can be easily transported and maneuvered in tight spaces. This makes it ideal for use in urban areas, where space is limited.

Highlights of telescopic arm

1.The reel adopts enlarged spring piece

2. The box is made of LG700 high strength material

3. Bearing part with multi-layer reinforced

4. The pivot end is reinforced with multiple layers to withstand greater excavation forces

5. The exposed bucket cylinder can be replaced without disassembling arm, which is convenient for maintenance

6. Four-layer steel wire high pressure hose, more durable

7. The telescopic cylinder adopts double oil seals, and the built-in slider reduces the vibration of the cylinder, avoids sagging due to gravity, improves the service life of the cylinder and reduces failures

welcome to contact for more details and models!

1. 14000㎡ Workshop

2. High-tech R&D Team

3. More Than 60 Skillful Workers

4. Deep Customization(Color, length, material, bucket width, extra hydraulic tube, etc.)

5. Prompt Lead Time(7-20 days)

6. Online support within 24 hours.

(Robust structure)
1. The box is made of LG700 high strength material
2. Bearing part with multi-layer reinforced

3. The upgraded auxiliary rope design makes the pipeline smoother while stretching

(Long service life)
1. The reel adopts enlarged spring piece
2. Adopt Strong bucket cylinder

(Avoid oil leakage)
1. The telescopic cylinder adopts double oil seals
2. Bucket cylinder hose was built-in to avoids oil leakage caused by hose vibration

(Easy to maintain)
Lubrication system for sliders help support butter easily.

Q1. What is the length of the telescopic boom? Is it the total length of the boom?
A1. The length of the two-stage telescopic boom refers to the excavation depth. For example, the 14m telescopic boom refers to the maximum excavation depth of 14m, not the boom length of 14m.

Q2. How to judge the length of telescopic boom that can be made for different models?
A2. Because the length of the telescopic boom is directly related to the length of the boom. We should ensure that the telescopic boom will not touch the bridge when it is placed on the ground.

Q3. Do I need to modify the original machine when installing the telescopic boom? Are there any precautions?
A3. The original machine needs three sets of pipes. We need to replace the original one-way foot switch with a two-way foot switch to achieve the telescopic function. The other operations are the same. The more important thing is balance and safety. Try to avoid the 90 degree operation between the cab and the track shoe.

Q4. Note and maintenance of telescopic arm
A4. 1st, telescopic arm does not allow inclined excavation. 2nd, it can't dig hard things but only soft soil. 3rd, it is not allowed to jack or hoist when the smallest arm is not fully retracted. 4th, the end can't lift things more than 1 ton, which are easy to bend the telescopic arm. If so, no warranty. 5th, telescopic boom shall be greased every day, and the boom barrel shall be greased at least once a week to keep the boom barrel full of butter.
