Product Details:
|
| Condition: | New Set Product | Operating Weight: | 5738kg |
|---|---|---|---|
| Bucket Capacity: | 0.40 Cbm | Max Digging Radius: | 6450mm |
| Maximum Digging Depth: | 4650mm | Moving Type: | All Excavators |
| After-sales Service Provided: | Video Support | Maximum Digging Height: | 5940mm |
| Machine Weight: | 5751kg,6281mm | Color: | Yellow, Range And Any |
| Product Name: | Telescopic Arm Boom | Keywords: | Long Reach Boom |
| High Light: | Excavator Telescopic Long Reach Boom Arm,Excavator Boom Arm With Clamshell Bucket,Excavator Boom Arm For Hitachi |
||
Email: Katherine@excavatorboomarm.com

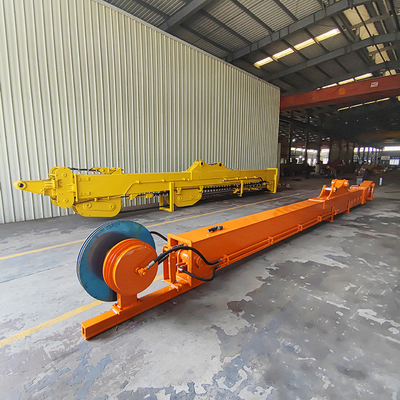

The introduce of extended telescopic arm
Extendable Reach: The primary advantage of an excavator telescopic arm is its ability to extend and retract, providing extended reach capabilities. It allows the excavator to access areas that are farther away, such as deep excavations, high-rise structures, or hard-to-reach locations.
Adjustable Length: The telescopic arm consists of multiple sections that can slide or telescope in and out. This adjustability enables operators to customize the length of the arm based on the specific task requirements. It provides flexibility in reaching different heights or extending over obstacles.
Increased Versatility: The excavator telescopic arm enhances the versatility of the machine by enabling it to handle a wide range of applications. It is commonly used for tasks such as deep digging, slope stabilization, demolition of tall structures, or working in confined spaces where extended reach is necessary.
Precise Positioning: The telescopic arm allows for precise positioning of the excavator bucket or attachment, ensuring accurate digging or lifting operations. It enables operators to work with precision and efficiency, reducing the need for manual adjustments or repositioning of the machine.
Improved Efficiency and Productivity: With the extended reach capabilities, the excavator can cover a larger area without the need for frequent repositioning. This leads to increased productivity and efficiency, as operators can complete tasks more quickly and with fewer machine movements.
Enhanced Safety: The excavator telescopic arm allows operators to maintain a safer distance from potential hazards, reducing the risk of accidents or damage to the machine. It enables work to be carried out from a more secure position, ensuring a safer working environment.
Q1: Why not have boom and stick cylinders in the plan?
A1: First, the whole long arm is lengthening, but the boom just lengthening from its middel sleeve to its end, so the original boom and stick cylinder can be used. Second, using the original parts can save your cost.
Q2: How long is the boom arm can min excavator be be configured with? Whether it is necessary to increase the counterweight?
A2. Generally speaking, 30-40 excavator longest arm suggests to be 8 meters, can configure 0.1 cbm bucket, no need extra counterweight. 55 excavator longest arm suggests to be 12 meters, can configure 0.1-0.15 cbm bucket, need 0.5 ton extra counterweight. 60-80 excavator longest arm suggests to be 12 meters, can configure 0.15-0.25 cbm bucket, need 0.5-0.7 ton extra counterweight.
It is not recommended to extend boom arm to longest length as min excavator is easy to sloshing.
Q3: How long will it takes to install a excavator long reach boom?
It depends on the installer and machine size.
Usually disconnect the original boom arm, stick cylinder, then pin the new one is okay.
Kindly remind, prepare several containers to fill the oil before disassemble.
