Hot-sale Multiple Guarantees Excavator Telescopic Arm for ZX60 PC200 CAT340 Etc


Click Here To Get Our Catalogue ZH excavator boom arm.pdf

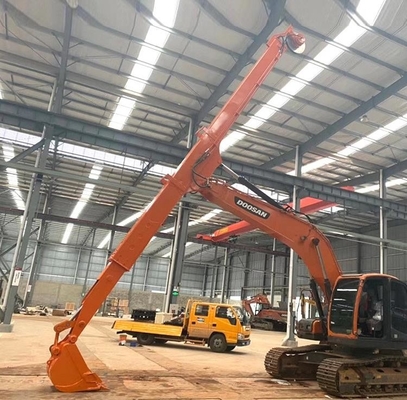

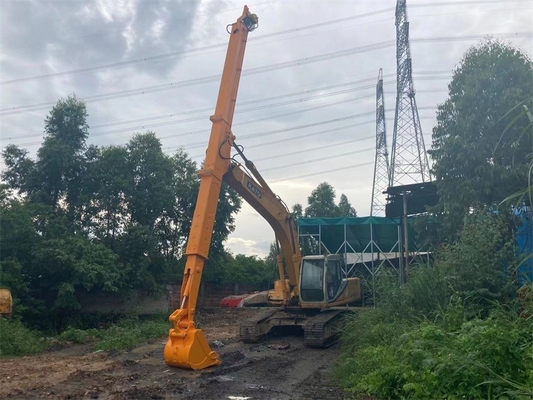

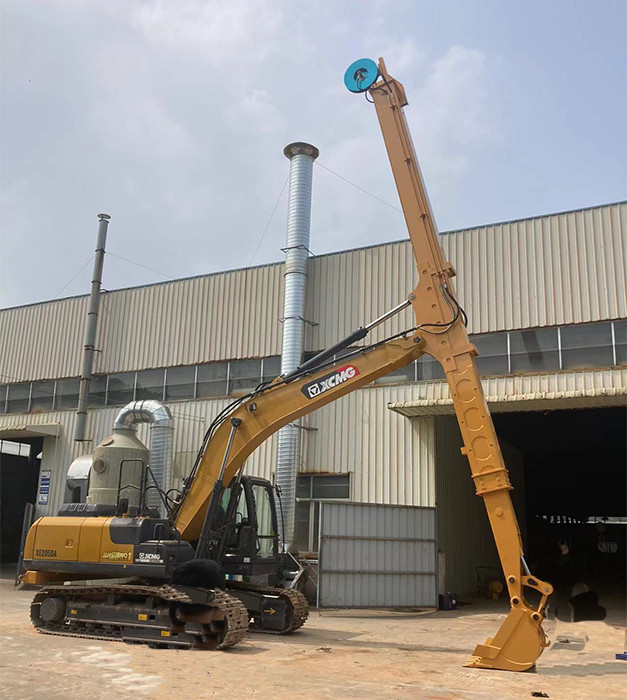

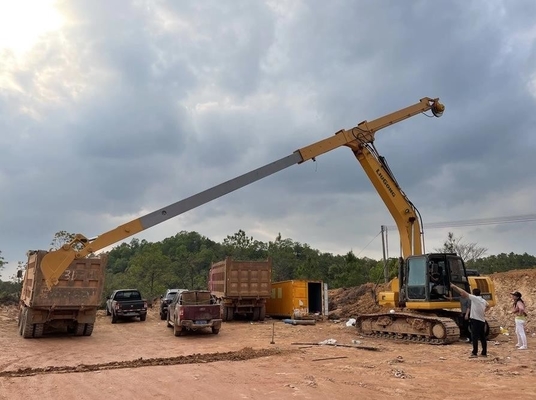

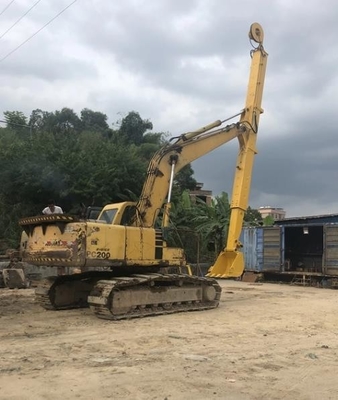

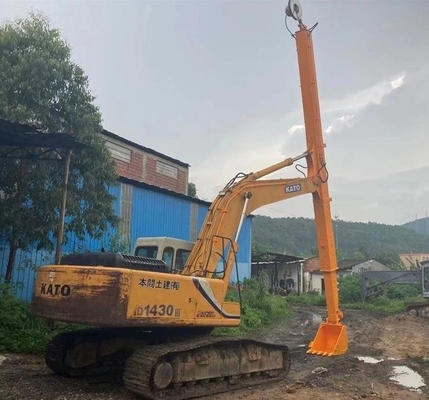

One key feature that greatly enhances the functionality and versatility of an excavator is the two-section telescopic arm.

The primary advantage of a two-section telescopic arm is its ability to reach greater distances horizontally and vertically compared to a standard arm. This feature proves invaluable in situations where the excavator needs to dig deep trenches or access areas that are otherwise challenging to reach. By extending the arm, the excavator can reach over obstacles or navigate uneven terrain with relative ease.

The adjustable nature of the telescopic arm allows the operator to tailor the working range of the excavator according to the specific task at hand. By extending or retracting the arm, the operator can optimize the reach and digging depth, thereby enhancing productivity and efficiency. This flexibility eliminates the need for multiple excavators with varying arm lengths, saving both time and resources on the job site.

welcome to contact more models!




(Robust structure)
1. The box is made of LG700 high strength material
2. Bearing part with multi-layer reinforced
3. The upgraded auxiliary rope design makes the pipeline smoother while stretching

(Long service life)
1. The reel adopts enlarged spring piece
2. Adopt Strong bucket cylinder

(Avoid oil leakage)
1. The telescopic cylinder adopts double oil seals
2. Bucket cylinder hose was built-in to avoids oil leakage caused by hose vibration

(Easy to maintain)
Lubrication system for sliders help support butter easily.

Q1. What is the length of the telescopic boom? Is it the total length of the boom?
A1. The length of the two-stage telescopic boom refers to the excavation depth. For example, the 14m telescopic boom refers to the maximum excavation depth of 14m, not the boom length of 14m.


Q2. How to judge the length of telescopic boom that can be made for different models?
A2. Because the length of the telescopic boom is directly related to the length of the boom. We should ensure that the telescopic boom will not touch the bridge when it is placed on the ground.


Q3. Do I need to modify the original machine when installing the telescopic boom? Are there any precautions?
A3. The original machine needs three sets of pipes. We need to replace the original one-way foot switch with a two-way foot switch to achieve the telescopic function. The other operations are the same. The more important thing is balance and safety. Try to avoid the 90 degree operation between the cab and the track shoe.


Q4. Note and maintenance of telescopic arm
A4. 1st, telescopic arm does not allow inclined excavation. 2nd, it can't dig hard things but only soft soil. 3rd, it is not allowed to jack or hoist when the smallest arm is not fully retracted. 4th, the end can't lift things more than 1 ton, which are easy to bend the telescopic arm. If so, no warranty. 5th, telescopic boom shall be greased every day, and the boom barrel shall be greased at least once a week to keep the boom barrel full of butter.

1. 14000㎡ Workshop

2. High-tech R&D Team

3. More Than 60 Skillful Workers

4. Deep Customization(Color, length, material, bucket width, extra hydraulic tube, etc.)

5. Prompt Lead Time(7-20 days)

6. Online support within 24 hours.
