Product Details:
|
| Condition: | New Set Product | Operating Weight: | 5738kg |
|---|---|---|---|
| Bucket Capacity: | 0.40 Cbm | Max Digging Radius: | 6450mm |
| Maximum Digging Depth: | 4650mm | Moving Type: | All Excavators |
| After-sales Service Provided: | Video Support | Maximum Digging Height: | 5940mm |
| Machine Weight: | 5751kg,6281mm | Color: | Yellow, Range And Any |
| Product Name: | Telescopic Arm Boom | Keywords: | Long Reach Boom |
| High Light: | Telescopic Long Reach Excavator Boom Arm,Hight Strength Excavator Boom Arm,Excavator Long Boom Arm With Bucket |
||
Facebook: Excavator Rock Bucket

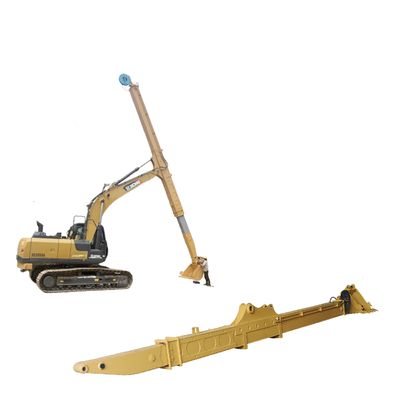

The introduce of extended telescopic arm
Increased Reach: The primary advantage of an extended telescopic arm is its ability to reach greater distances. By extending the arm, operators can access areas that are otherwise difficult to reach, such as high ceilings, deep trenches, or confined spaces.
Versatility: The telescopic arm can be used in a wide range of applications. For example, in construction, it can be mounted on cranes or excavators to reach higher elevations or perform tasks that require extended reach, such as lifting heavy objects or placing materials. In agriculture, telescopic arms are commonly used in equipment like loaders or forklifts to handle large loads and reach over obstacles.
Compact Design: Telescopic arms are designed to be compact when retracted, allowing for easier transportation and storage. The nested sections can slide into one another, reducing the overall length of the arm when not in use.
Adjustable Length: The length of the telescopic arm can typically be adjusted to suit specific requirements. This adjustability allows operators to customize the reach based on the task at hand, providing flexibility in various working environments.
Enhanced Maneuverability: Extended telescopic arms often feature additional joints or articulations, enabling them to perform a wide range of movements. This enhances the maneuverability of the arm, allowing operators to reach around obstacles or access tight spaces with greater ease.
Remote Operation: In some applications, extended telescopic arms can be operated remotely, increasing operator safety in hazardous or challenging environments. Remote control systems allow operators to manipulate the arm's movements from a safe distance, reducing the risk of injury.
Q1: Why not have boom and stick cylinders in the plan?
A1: First, the whole long arm is lengthening, but the boom just lengthening from its middel sleeve to its end, so the original boom and stick cylinder can be used. Second, using the original parts can save your cost.
Q2: How long is the boom arm can min excavator be be configured with? Whether it is necessary to increase the counterweight?
A2. Generally speaking, 30-40 excavator longest arm suggests to be 8 meters, can configure 0.1 cbm bucket, no need extra counterweight. 55 excavator longest arm suggests to be 12 meters, can configure 0.1-0.15 cbm bucket, need 0.5 ton extra counterweight. 60-80 excavator longest arm suggests to be 12 meters, can configure 0.15-0.25 cbm bucket, need 0.5-0.7 ton extra counterweight.
It is not recommended to extend boom arm to longest length as min excavator is easy to sloshing.
Q3: How long will it takes to install a excavator long reach boom?
It depends on the installer and machine size.
Usually disconnect the original boom arm, stick cylinder, then pin the new one is okay.
Kindly remind, prepare several containers to fill the oil before disassemble.
