Product Details:
|
| Condition: | Brand New Product | Operating Weight: | 5750kg |
|---|---|---|---|
| Bucket Capacity: | 0.45 Cbm | Max Digging Radius: | 6460mm |
| Maximum Digging Depth: | 4600mm | Moving Type: | All Excavator |
| After-sales Service Provided: | Video Support Service | Maximum Digging Height: | 5940mm |
| Machine Weight: | 5750kg,6291mm | Color: | Yellow, Black, Orange |
| Product Name: | Excavator Telescopic Arm | Keywords: | Long Reach Boom For Sale |
| High Light: | Excavator Long Boom Clamshell Telescopic Arm,Excavator Telescopic Arm For Hitachi CAT,4600 mm Excavator Telescopic Boom |
||
Email: Katherine@excavatorboomarm.com

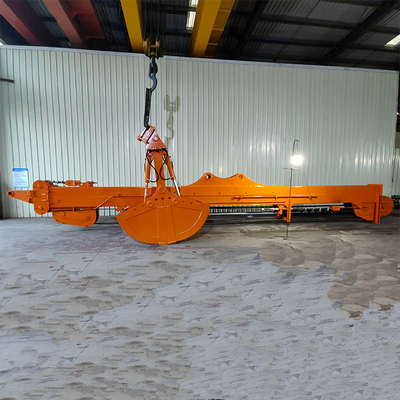

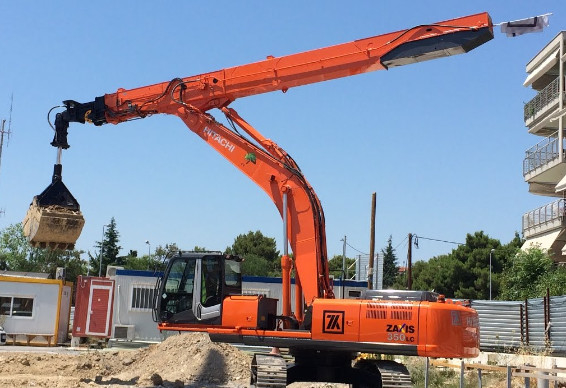

The introduce of extended telescopic arm
The extended telescopic arm, also known as a telescopic boom or telescopic attachment, is a specialized feature used in machinery such as cranes, forklifts, or aerial work platforms. It allows the arm or boom to extend and retract, providing increased reach and flexibility for various applications.
Key points about an extended telescopic arm:
Extendable Reach: The primary advantage of an extended telescopic arm is its ability to extend and retract, offering variable reach capabilities. It allows the machinery to reach greater heights or distances, adapting to different job requirements.
Versatility: The extended telescopic arm enhances the versatility of the machinery by enabling it to access areas that are difficult to reach with a fixed arm. It is commonly used in construction, warehousing, or maintenance tasks where extended reach is necessary.
Adjustable Length: The telescopic arm consists of multiple sections that can slide or telescope in and out. This adjustability allows operators to customize the length of the arm based on the specific task at hand. It provides flexibility in reaching different heights or extending over obstacles.
Compactness: When retracted, the telescopic arm can be compact, minimizing the overall length of the machinery. This is beneficial for transportation and storage purposes, as it reduces the space required for the equipment.
The telescopic arm can be made of Q690D-Q960 material according to the requirements, with much deeper excavation depth, simple and convenient operation, safety, and reliable.
Q1: Why not have boom and stick cylinders in the plan?
A1: First, the whole long arm is lengthening, but the boom just lengthening from its middel sleeve to its end, so the original boom and stick cylinder can be used. Second, using the original parts can save your cost.
Q2: How long is the boom arm can min excavator be be configured with? Whether it is necessary to increase the counterweight?
A2. Generally speaking, 30-40 excavator longest arm suggests to be 8 meters, can configure 0.1 cbm bucket, no need extra counterweight. 55 excavator longest arm suggests to be 12 meters, can configure 0.1-0.15 cbm bucket, need 0.5 ton extra counterweight. 60-80 excavator longest arm suggests to be 12 meters, can configure 0.15-0.25 cbm bucket, need 0.5-0.7 ton extra counterweight.
It is not recommended to extend the boom arm to the longest length as the excavator is easy to sloshing.
Q3: How long will it take to install an excavator long-reach boom?
It depends on the installer and machine size.
Usually disconnecting the original boom arm, stick the cylinder, then pin the new one is okay.
Kindly remind, prepare several containers to fill the oil before disassembling.
