Durable Multiple Length Excavator Three-section Telescopic Boom Arm For Various Excavator

Durable Multiple Length Excavator Three-Section Telescopic Boom Arm For Various Excavator


Catalogue ZH excavator boom arm.pdf

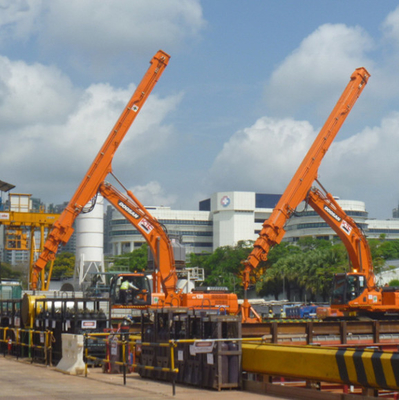

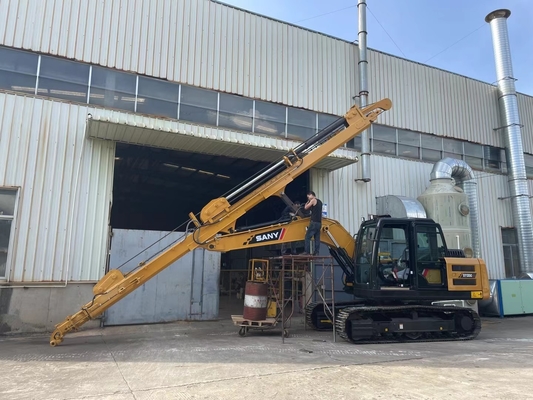

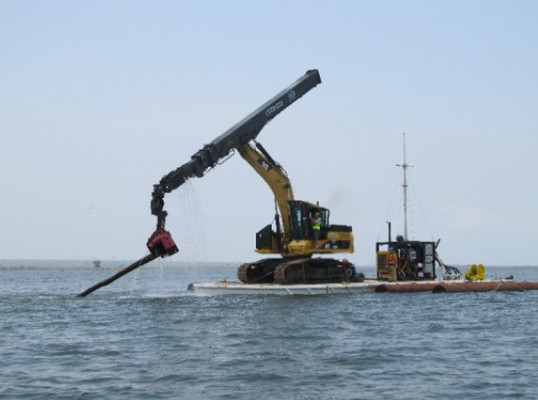

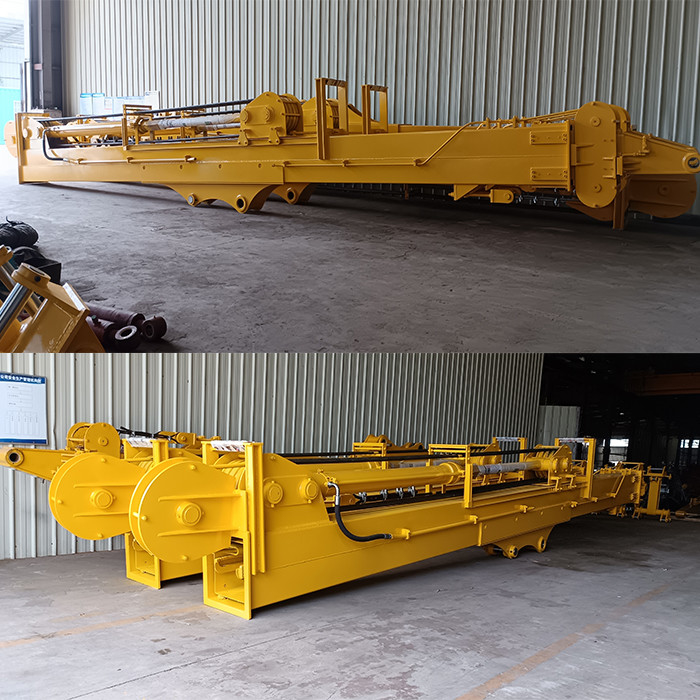

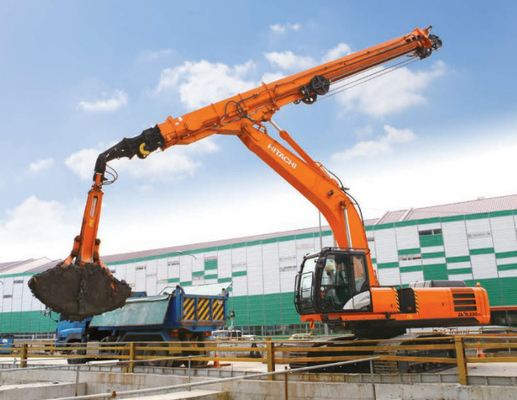

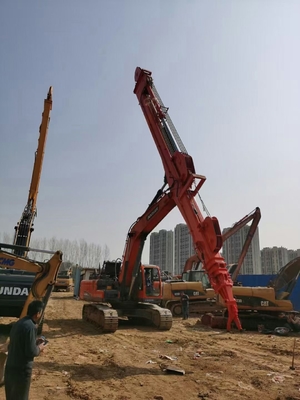

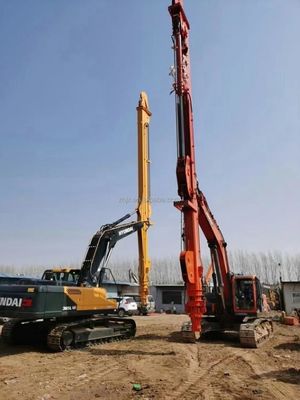

The three-section telescopic boom is a significant feature found in many modern excavators, enhancing their versatility and reach. An excavator is a heavy construction machine primarily used for digging and moving large amounts of earth, rocks, and debris. The telescopic boom refers to an extendable arm or arm system mounted on the excavator's main body, allowing it to reach greater distances and depths.


1.The external hose pulley separates the hose from the main rope, avoids the friction between the main rope and the hose, reduces failures, and makes maintenance more convenient
2.Centralized lubrication
3.Adopt 30mm main rope
4.The upgraded auxiliary rope design makes the pipeline smoother while stretching
5. Adopt 26mm auxiliary rope
6. Can match bucket and grabber
7.Oil filling hole at the second arm front end(to the top slider)
8.Oil filling hole position on both sides of the third arm front end(to the top slider)

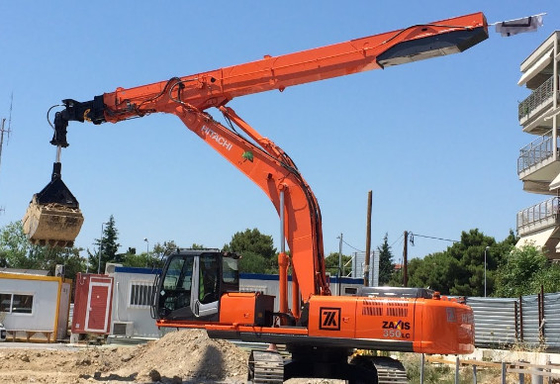

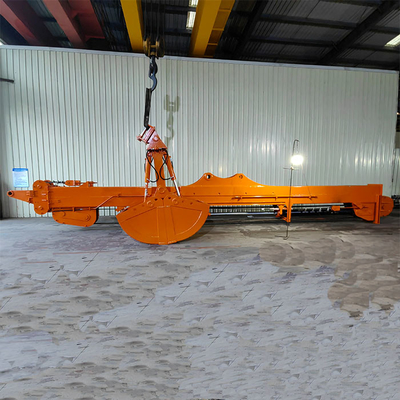

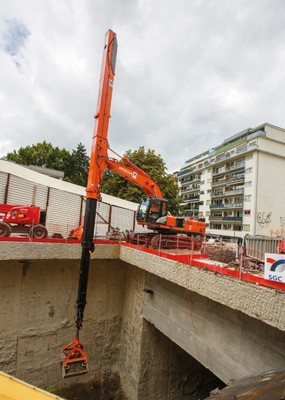

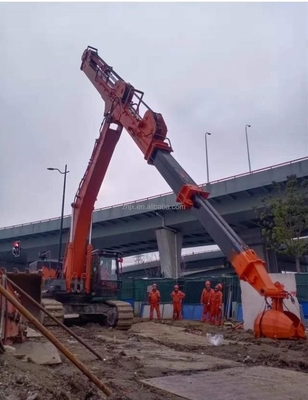

The three-section telescopic boom is frequently equiped with a clamshell. Used in grabbing sand, coal, soil, etc.


CE certification & Utility model patent certificates


1. 14000㎡ Workshop
We has more than 14000㎡ steel structure standard workshop with a large number of high precision processing equipments.

2. High-tech R&D Team
We use precision drawing software to achieve the max working range under the premise of safe operation.

3. Experienced Workers
There are more than 60 skillful staffs, 30 welding workers with over 5 years welding experience.

4. Customization
(1)Match all brand excavator.
(2)Color, length, material can do according to you.
(3)Extra pipeline can be added to suit to some extra application.

5. Prompt Lead Time
(1)Our lead time is 7-15 days.
(2)Our annual output of various types of excavator boom arms can reach 600 sets.

6. 100% Service
(1)Online support within 24 hours.
(2)Appointment video technical support. (Our engineers have focused on excavator boom and attachment over 10 years)





Q1. What is the length of the telescopic boom? Is it the total length of the boom?
A1. The length of the two-stage telescopic boom refers to the excavation depth. For example, the 14m telescopic boom refers to the maximum excavation depth of 14m, not the boom length of 14m.
Q2. How to judge the length of telescopic boom that can be made for different models?
A2. Because the length of the telescopic boom is directly related to the length of the boom. We should ensure that the telescopic boom will not touch the bridge when it is placed on the ground.
Q3. Do I need to modify the original machine when installing the telescopic boom? Are there any precautions?
A3. The original machine needs three sets of pipes. We need to replace the original one-way foot switch with a two-way foot switch to achieve the telescopic function. The other operations are the same. The more important thing is balance and safety. Try to avoid the 90 degree operation between the cab and the track shoe.
Q4. Note and maintenance of telescopic arm
A4. 1st, telescopic arm does not allow inclined excavation. 2nd, it can't dig hard things but only soft soil. 3rd, it is not allowed to jack or hoist when the smallest arm is not fully retracted. 4th, the end can't lift things more than 1 ton, which are easy to bend the telescopic arm. If so, no warranty. 5th, telescopic boom shall be greased every day, and the boom barrel shall be greased at least once a week to keep the boom barrel full of butter.
