Product Details:
|
| Type: | Excavator Sliding Boom Arm | After-sales Service: | Fast Response Online |
|---|---|---|---|
| Maximum Length: | 12 Meters | Condition: | Total New |
| Warranty: | 0-6 Months | Bucket Capacity: | 0.5 CBM 0.7 CBM |
| Material: | Q355B With High Strength | Application: | Clawer Excavator |
| High Light: | 0.5CBM Bucket Excavator Sliding Arm,Excavator Sliding Arm For Sanny |
||

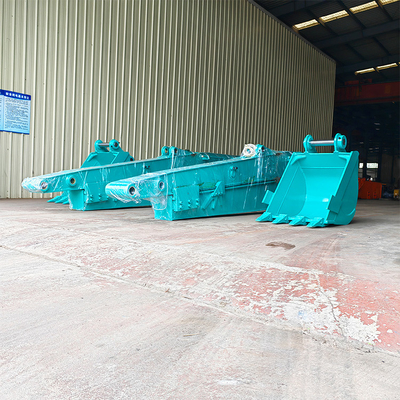

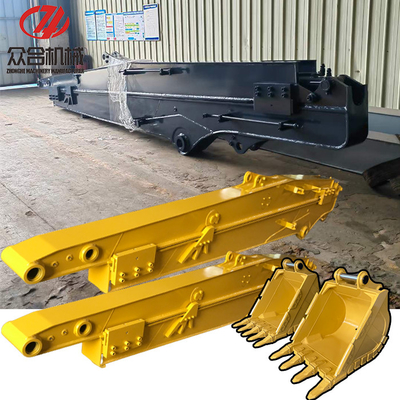

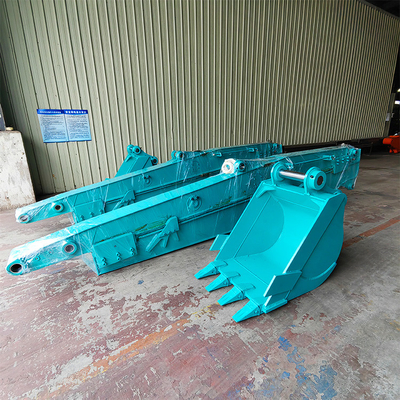

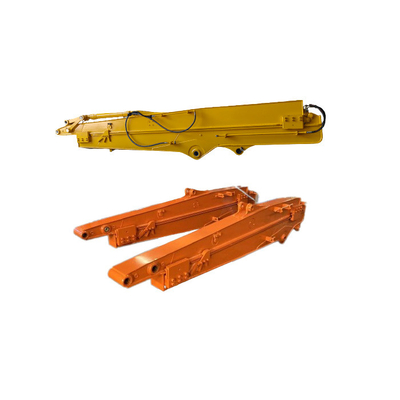

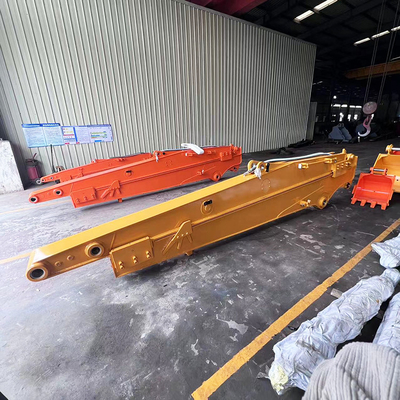

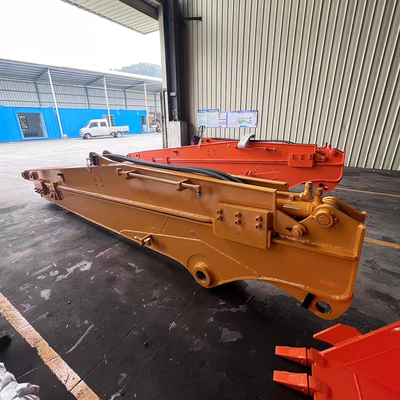

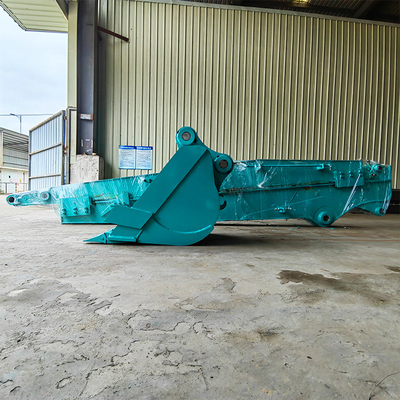

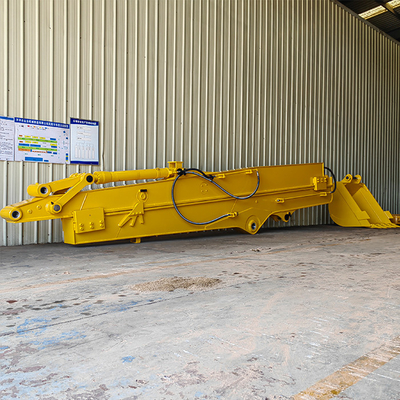

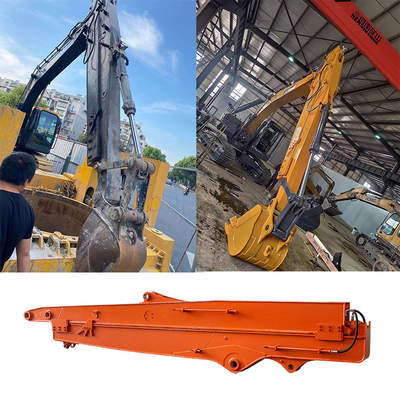

Manufacturer Excavator Sliding Boom Excavator Slide Arm Sliding Arm In Excavator For Sanny Hitachi Komatsu
Click here to check out our catalog:Zhonghe Machinery Catalog-Contact Sales Manager Aria Directly

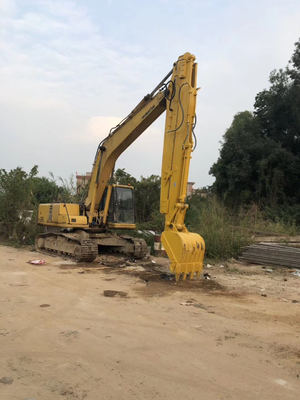

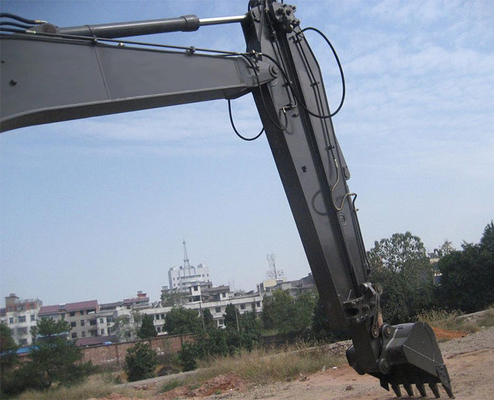

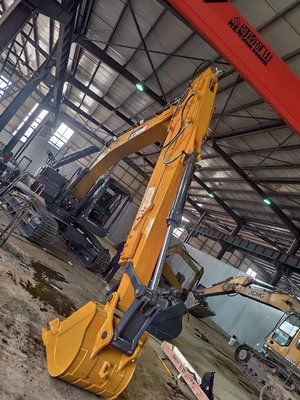

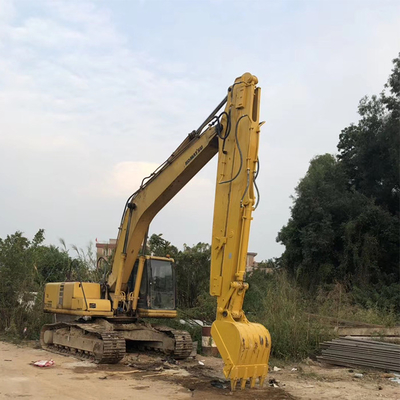

Sliding arm in excavator, also known as a telescopic arm or extendable arm, is a type of hydraulic arm that is attached to an excavator. Sliding arm of excavator is designed to increase versatility of the excavator by allowing the arm to extend and retract. Excavator sliding boom is mounted on the end of the excavator's boom and consists of a hydraulic cylinder that can be extended and retracted to adjust the length of the arm.

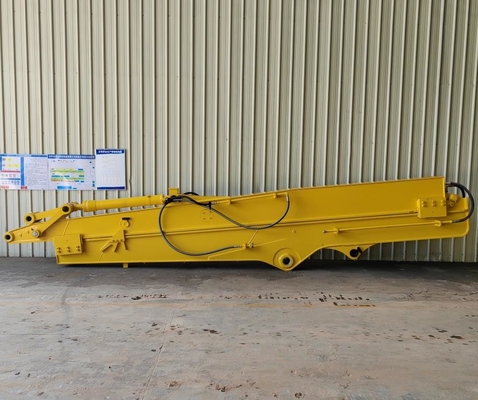

The upper section of the excavator's sliding boom includes a cylinder assembly and a piston rod. The cylinder assembly is mounted on the fixed body, while the piston rod is connected to the movable excavator slide arm. When pressure is applied to the cylinder assembly, the piston rod extends, pushing the movable sliding body away from the fixed body.
The lower portion of the excavator's sliding arm consists of a box frame, a base plate, and a rail. The box frame is secured to the base plate, and the rail is mounted on the box frame. The movable sliding body is equipped with a pair of rollers that move along the rail, enabling it to slide along the rail and move in various directions.
1.High Strength: The sliding arm in the excavator is constructed using robust, high-strength steel materials capable of withstanding the substantial stresses generated during excavator operations.
2.Longevity: The sliding arm of the excavator is engineered for durability, ensuring prolonged and trouble-free usage over an extended period.
3. Smooth Performance: The excavator sliding arm is meticulously designed to deliver smooth and precise movements, enabling efficient and effective operation of the excavator.
4. Convenient Maintenance: The sliding arm of the excavator is designed with ease of maintenance in mind, allowing for effortless regular inspections and servicing of the arm.
5. Dependability: The excavator sliding arm is built to provide reliable performance, guaranteeing its ability to fulfill its intended functions consistently.
| Excavator Ton | (A)Maximum working Length of arm | (B)Maximum digging height | (C)Maximum digging radius(mm) | Bucket Volume(cbm) | Counter Weight(Ton) |
| 12-15T | 5700 | 8000 | 10400 | 0.2-0.3 | |
| 20-25T | 9150 | 10100 | 13000 | 0.4-0.7 | |
| 20-25T | 11000 | 12300 | 15200 | 0.4-0.7 | 1-2T |
| 30-35T | 11000 | 12000 | 15800 | 0.6-0.9 | |
| 40-45T | 12100 | 16000 | 19200 | 0.8-1.3 |

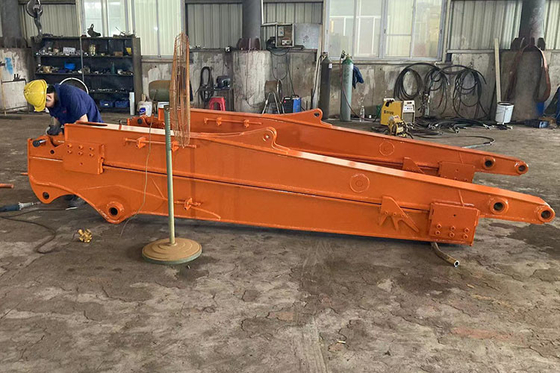

1. 14000㎡ Workshop with Precision Equipments
2. Excellent Service
3. High-tech R&D Team
4. Experienced Workers
Please tell us your excavator model and the digging length, so that we can make a quotation as soon as possible.
CE certification & Utility model patent certificates
Please feel free to contact Aria directly!
