High Effective Safe Excavator Quick Hitch Quick Coupler for Cat, Sanny, Hitachi Protection Design
Click here to check out the catalog:Zhonghe Machinery Catalog-Contact Sales Manager Aria Directly

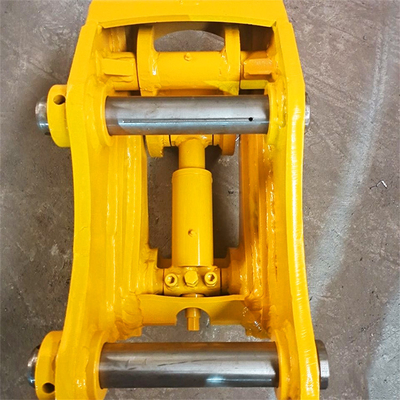

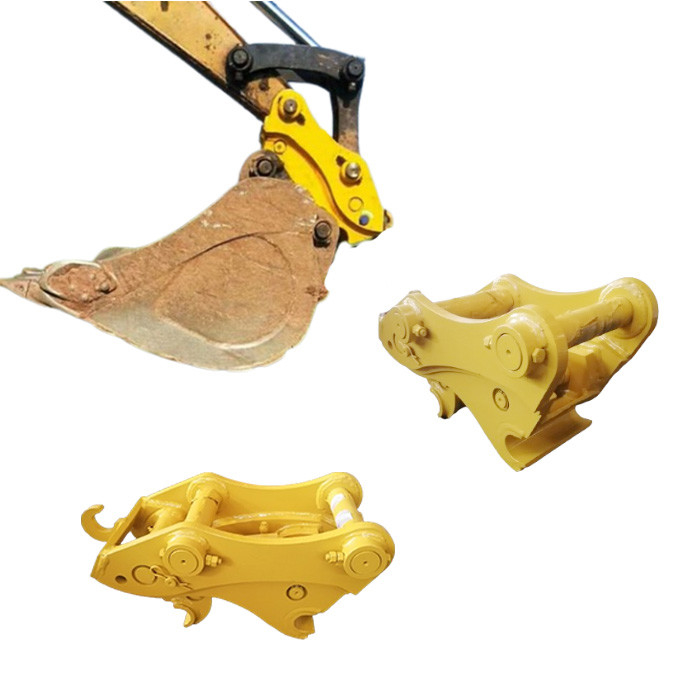

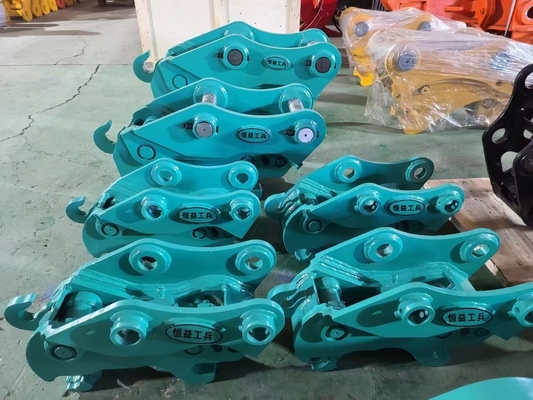

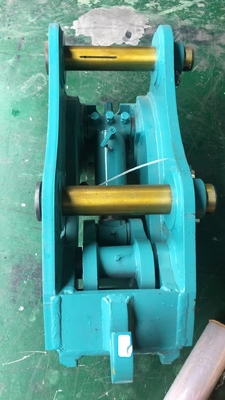

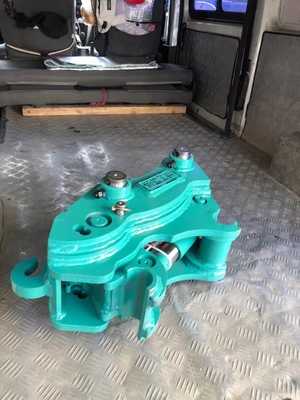

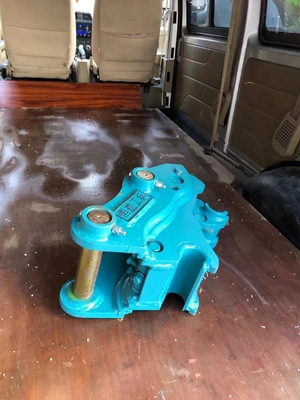

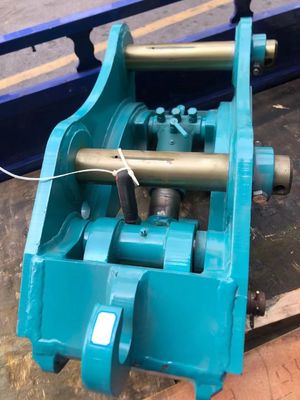

Description of Pin Grabber Quick Hitch for Excavator
Excavator quick couplers, also known as quick hitch excavator, come in two main variants - mechanical and hydraulic quick coupler.
The defining advantage of these quick coupler systems lies in their ability to facilitate rapid attachment changes. Without the need for manual pin removal, the excavator operator can simply actuate a switch within the cabin, allowing the attachment to be swapped in a matter of seconds.

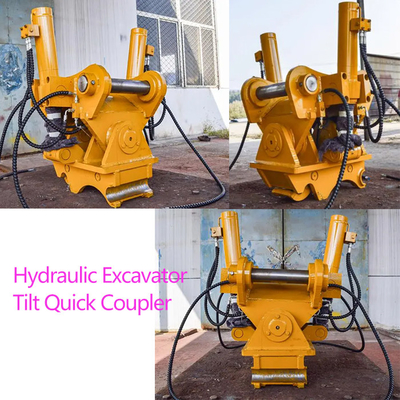

This streamlined attachment replacement process delivers significant time savings compared to traditional methods, thereby greatly enhancing work efficiency on the job site. Operators no longer need to invest time and effort into the laborious task of manually detaching and reattaching pins, freeing them to focus on the core tasks at hand. The tilting quick hitch is also available. The hydraulic quick hitch coupler help people a lot.
Furthermore, the versatility of these quick coupling enables excavators to be easily reconfigured with a wide range of specialized attachments, expanding the machine's capabilities and making it a more adaptable and valuable asset on the worksite.
| Item/Model |
Unit |
ZHMINI |
ZH45 |
ZH50/55 |
ZH60/65 |
ZH70/80 |
ZH90 |
ZH100/110 |
| Suitable Excavator |
ton |
1.5-4 |
4-7 |
5-8 |
9-19 |
17-23 |
23-30 |
33-45 |
| Pin to Pin Center Distance |
mm |
80-150 |
230-270 |
290-360 |
380-420 |
460-480 |
473-540 |
550-620 |
| Forearm Open Width |
mm |
80-140 |
155-170 |
180-200 |
232-315 |
306-340 |
375-411 |
416-469 |
| Retractable Distance of Oil Cylinder |
mm |
170-206 |
205-275 |
340-450 |
340-486 |
256-390 |
413-590 |
520-590 |
| Top to Bottom Pin Distance |
mm |
159 |
195 |
195 |
220 |
275 |
300 |
360 |
| Pin Diameter |
mm |
25-40 |
45-50 |
50-55 |
60-70 |
70-80 |
80-90 |
90-120 |
| Norking Pressure |
bar |
32-40 |
32-40 |
32-40 |
32-40 |
32-40 |
32-40 |
32-40 |
| Working Flow |
lpm |
10-20 |
10-20 |
10-20 |
10-20 |
10-20 |
10-20 |
10-20 |
Please send your excavator model to Aria, then we will make a quotation for your reference accordingly.
Whatsapp: 0086 13822325403
Features of excavator quick coupler
1. Adopt Q345/Q355B, high strength and corrosion resistance;
2. Pins are 42CrMu with high strength and toughness

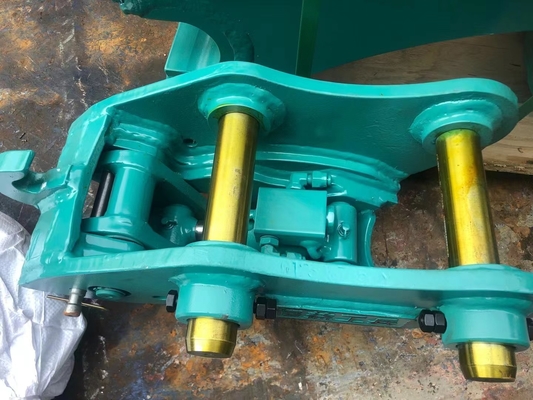

3. The oil cylinder is robust with double oil seal, avoid leakage and have long life service.
4. Protection design(removable tiger mouth spring valve, safety pin) makes it reliable.
ZHONGHE MACHINERY'S ADVANTAGES
1. 14000㎡ Workshop & Precision Equipments
2. A High-tech R&D Team & 10+ Years Experienced Engineer
3. 30+ Experienced Workers with 5 Years Welding Experience
4. Customized(Painting, length, material, extra hydraulic tubes...)
5. Prompt Lead Time 10-20 Days & Can Produce 600 Sets Excavator Booms / Year
6. Good Service Within 24 Hours*7 Days
