ZHONGHE Heavy Industry: Precision Custom Solutions for Global Leaders
Backed by over a decade of industry leadership, we engineer bespoke attachments for excavators from Sany, XCMG, Caterpillar, and other world famous brands. We deliver complete, application-optimized solutions tailored to your specific operating conditions and technical requirements.
Product Description

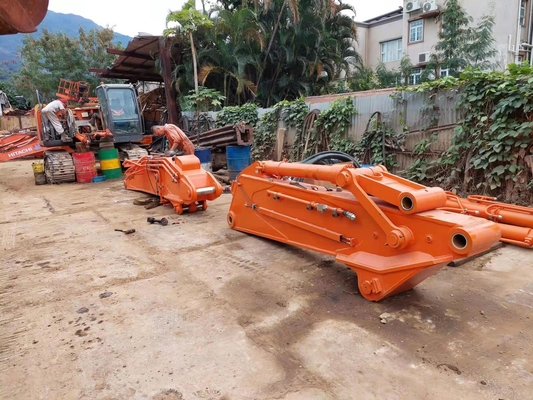

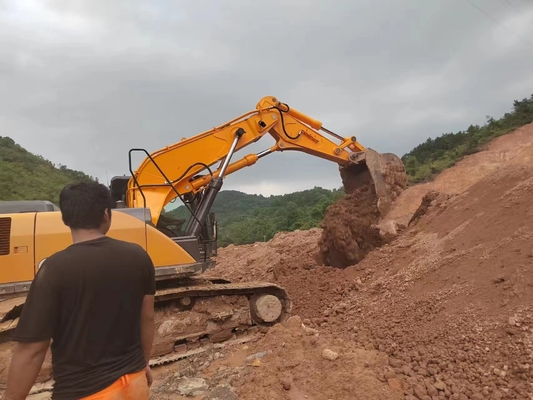

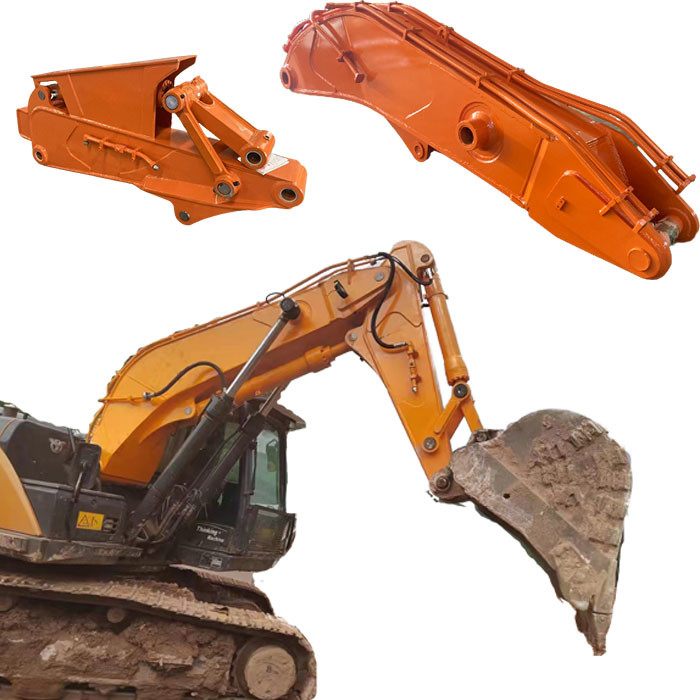

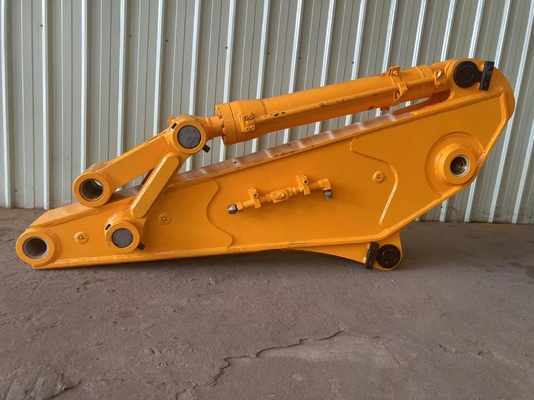

ZHONGHE Tunnel Boom: Engineering Excellence for Confined Spaces
——Purpose-built for subway tunneling, mining drifts, and narrow-access projects where standard booms fail.
Core Advantages
180° boom-arm articulation for maximum flexibility
Compatible with large hydraulic breakers
Stick/arm cylinders positioned below for protection
Dedicated bucket cylinder guard
Engineered for confined-space operations
Structural Features
Enhanced Lifting Capacity
Robust Construction
Thickened upper/lower cover plates
Arm filled with iron sand for vibration reduction
Reinforced cylinder guards(Extended Service Life)
Leak Prevention
Stop valves prevent oil leakage during tool changes
Multi-layer welded pipe connectors

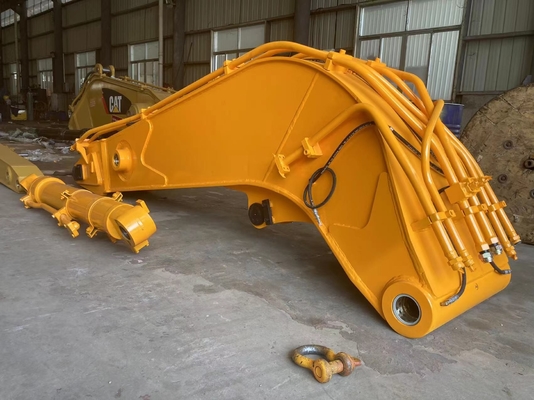

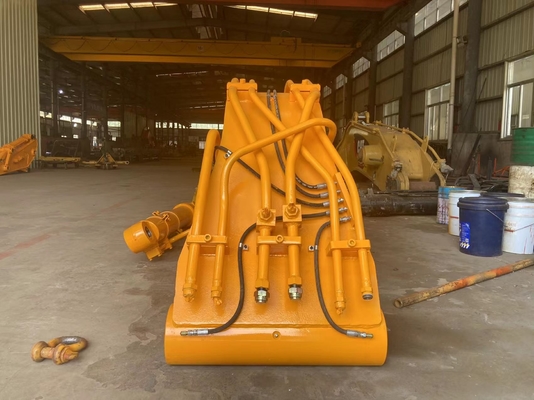

Pivot End Design
Heavy-duty boom with reinforced pivot end
Single-piece construction
Thickened steel plates
Precision Manufacturing Process: Strength Built on Quality
ZHONGHE's manufacturing prowess is the foundation of our product excellence. We implement a strictly controlled, lean production process:
1. Precision Design & Material Selection:
Professional structural design and stress analysis based on application requirements.
Strict sourcing of top-tier global steel (e.g., Hardox wear plate, BS700/Q690D/Q355B structural steel).
2. High-Precision Cutting & Forming:
CNC plasma/flame cutting ensures dimensional accuracy with minimal thermal distortion.
Large structural components are precision-formed using heavy-duty press brakes and plate rollers.
3. Advanced Welding Technology:
Operated by internationally certified senior welders.
Extensive use of high-strength processes like GMAW (Gas Metal Arc Welding).
Critical joints feature double-beveled groove preparation (45°) with gas-shielded welding.
Key structural areas utilize double-pass welding.
4. Precision Machining & Assembly:
Large double-sided floor boring mills ensure high concentricity (±1mm tolerance) for pivot booms, extending lifespan.
5. Triple-Check QC Protocol: Zero Tolerance for Defects:
Design Review: Rigorous approval of drawings and technical plans.
In-Process Verification: 100% inspection after each manufacturing stage, checking prior process outputs. Problems are halted before proceeding.
Final Inspection: Our independent QC Department performs comprehensive checks, including:
Weld quality.
Critical dimensional accuracy (CMM - Coordinate Measuring Machine, ±1mm tolerance control).
Hydraulic system pressure and seal integrity tests.
Functional tests (range of motion, limit switch protection).
Only products passing all three mandatory quality gates receive shipment authorization.
Company Profile
FAQ
1. OEM Capability & Order Flexibility
✓ Full OEM Acceptance for all products
✓ Minimum Order Quantity: 1 unit
Note: Brand authorization documentation required for OEM projects
2. Production Capacity
• No MOQ Constraint - custom single-unit orders accepted
• Standard Lead Time: 7-15 working days
(Expedited options available for urgent requirements)
3. Payment Terms
▸ T/T (Telegraphic Transfer)
4. Why Choose ZHONGHE?
Direct Manufacturer Advantage:
① Price Leadership: Eliminate middleman margins as factory source
② Technical Ownership: In-house R&D and production control
③ Proven Preference: 78% of clients choose us over traders after comparison
④ Efficiency: Direct communication saves 3-5 weeks in procurement cycles
