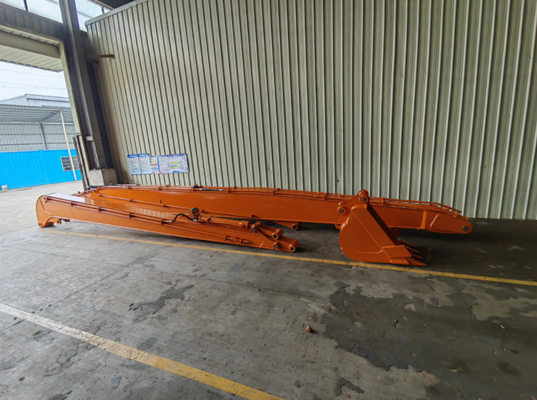

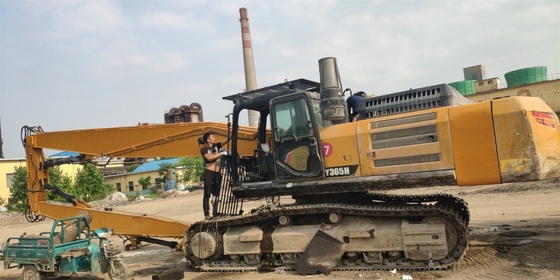

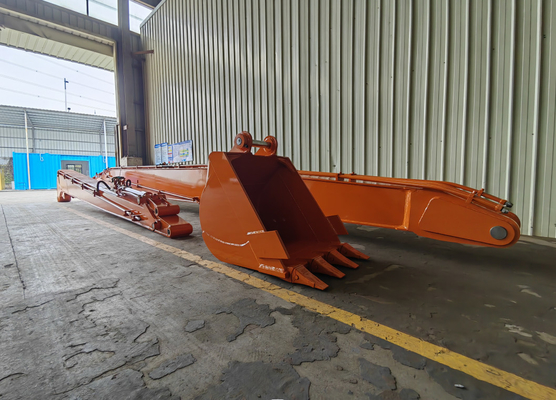

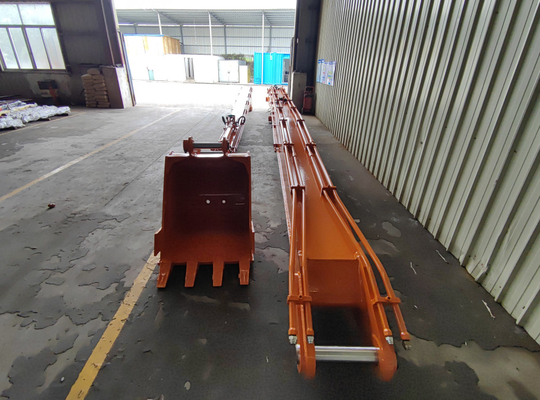

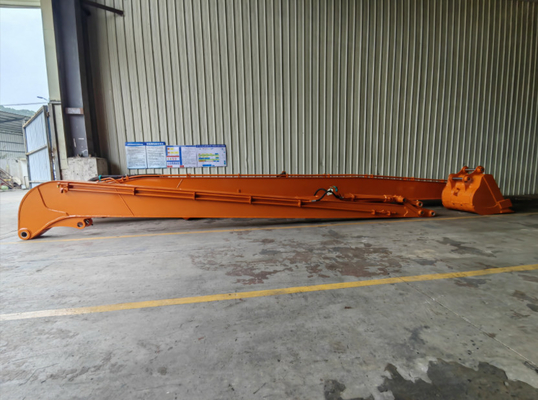

Customised Heavy Equipment Parts for 26M 28M 30M Excavators High Reach Arm for Demolition Construction Arm

ZHONGHE Heavy Industry: Your Trusted Partner for High-Performance Excavator Attachments

With more than 10 years of expertise in heavy machinery, we specialize in designing and manufacturing precision-engineered excavator attachments for top-tier brands like Sany, XCMG, and Caterpillar. Our customized solutions are meticulously crafted to match your unique operational needs, ensuring maximum efficiency and performance in any working environment.

Product Description

DEMOLITION BOOM CORE ADVANTAGES (Engineered for Power & Durability):

Superior Materials & Construction:

Seamless Precision Hydraulic Tubing: Ensures structural integrity and leak-free operation under high pressure.

High-Strength Boom Base: Features monolithic (one-piece) forged base sleeves for maximum load-bearing capacity and rigidity.

Heavy-Duty Pivot Pins: Employs 90mm diameter hardened pivot pins to eliminate shear failure risk.

Premium Wear Components: Graphite alloy copper sleeve at high-stress pivots for superior wear resistance and longevity.

                                  Graphite alloy copper sleeve                                                                                                    Steel sleeve

Optimized Design for Performance & Serviceability:

Modular Hydraulic Line Design: Facilitates faster maintenance and component replacement.

Structural Reinforcement: Internal transverse reinforcement ribs within the middle box section significantly increase tensile strength.

Oversized Bucket Cylinder: Provides increased breakout force and productivity for demanding demolition tasks.

Protected Hydraulic Routing: Key pipelines are routed internally for impact protection, preventing crushing damage.

Enhanced Geometry & Reach:

Stress-Optimized Geometry: Boom, intermediate arm, and stick lengths are proportionally engineered for optimal force distribution and structural efficiency.

Maximum Articulation: Achieves a working angle approaching 180° between boom and arm, maximizing reach and versatility in confined spaces.

Precision Manufacturing Process: Strength Built on Quality

ZHONGHE's manufacturing prowess is the foundation of our product excellence. We implement a strictly controlled, lean production process:

1. Precision Design & Material Selection:

Professional structural design and stress analysis based on application requirements.

Strict sourcing of top-tier global steel (e.g., Hardox wear plate, BS700/Q690D/Q355B structural steel).

2. High-Precision Cutting & Forming:

CNC plasma/flame cutting ensures dimensional accuracy with minimal thermal distortion.

Large structural components are precision-formed using heavy-duty press brakes and plate rollers.

3. Advanced Welding Technology:

Operated by internationally certified senior welders.

Extensive use of high-strength processes like GMAW (Gas Metal Arc Welding).

Critical joints feature double-beveled groove preparation (45°) with gas-shielded welding.

Key structural areas utilize double-pass welding.

4. Precision Machining & Assembly:

Large double-sided floor boring mills ensure high concentricity (±1mm tolerance) for pivot booms, extending lifespan.

5. Triple-Check QC Protocol: Zero Tolerance for Defects:

Design Review: Rigorous approval of drawings and technical plans.

In-Process Verification: 100% inspection after each manufacturing stage, checking prior process outputs. Problems are halted before proceeding.

Final Inspection: Our independent QC Department performs comprehensive checks, including:

Weld quality.

Critical dimensional accuracy (CMM - Coordinate Measuring Machine, ±1mm tolerance control).

Hydraulic system pressure and seal integrity tests.

Functional tests (range of motion, limit switch protection).

Only products passing all three mandatory quality gates receive shipment authorization.

​

Company Profile

FAQ

1. Do you have a Minimum Order Quantity (MOQ)? What is the production time?

   • No MOQ. We accept single-unit orders and custom designs.

   • Standard Production Lead Time: 7-15 working days for most orders, achievable through efficient scheduling and overtime.

   • Note: Final lead time depends on order complexity and volume. Our sales team will provide a precise timeline upon order confirmation.

2. What payment methods do you accept?

   • Telegraphic Transfer (TT): 30% deposit to initiate production. Remaining 70% balance due prior to shipment.

   • Alibaba Trade Assurance: Secured payment via Alibaba platform. We support Trade Assurance orders.

3. Why choose ZHONGHE over other suppliers?

   • Direct Factory Source: We are the manufacturer, eliminating middleman markups. You deal directly with the source for the best possible price.

   • Proven Choice: Many resellers source our products. Clients consistently choose us directly for superior value and efficiency.

   • Save Time & Cost: Deal directly with the factory for streamlined communication and cost savings.

4. What after-sales service do you provide?

   • Product Warranty: All long booms come with a standard warranty period.

   • Installation Support: Our technical support team provides guidance during installation to ensure correct and efficient assembly.
