32m Super Long Reach Excavator Booms For EX1200

32m Super Long Reach Excavator Booms For EX1200

  • 32m Super Long Reach Excavator Booms For EX1200
  • 32m Super Long Reach Excavator Booms For EX1200
32m Super Long Reach Excavator Booms For EX1200
Product Details:
Place of Origin: China
Brand Name: hongbang
Certification: CE,ISO9001
Model Number: KOMATSU
Payment & Shipping Terms:
Minimum Order Quantity: 1 piece
Price: 2000-50000usd
Packaging Details: bubble package
Delivery Time: 10-20days
Payment Terms: L/C, T/T
Supply Ability: 50pcs/month
Contact Now
Detailed Product Description
Matirial: Q345 Max Digging Depth: 20m
Processing: Machanized Welding: Auto Machine
Warrant: One Year Delivery Time: 15 Day
High Light:

excavator boom and stick

,

long reach arm boom for excavators

32m Super Long Reach for EX1200 Excavator
Include complete set:
Long boom 17.5M, Long arm 14.5M, Long arm 9.5M,
Rock Bucket 1m3, Counter Weight 8T, Grapple,
Bucket cyliner, Linkassembly, Pins, Pipe, High Press Oil Tube.

112 ton Excavator
Ship to Ghana to support Terminal construction project


Description
1. Long reach boom are use for dredging rivers port construction, railway construction and groundwork construction, with high extensive operation scope, high efficiency and high security.
2. Our company established on years 2007, we have over 10 years experience in designing and customize the long reach boom for all brand excavators.
3. Applicable for all the excavator model,OEM service is also available.
4. Advanced manufacturing process, Technique is in the line with global standards.
5. We have all the installation dimensions of most excavator, we can customize this long reach boom for your excavator.
6. The main material of this long boom is Q345B + Q690D.
7. The long reach boom include lubricant pipe system, hydraulic system, 1 bucket, 1 bucket cylinder, 1 linkage, 6 pins and 4 hoses.
8. Before welding, we have use big edge milling machine mill(taper process) the edge of the sheet. So the welding can go to the internal of the steel-sheet and make the structure have higher performance. Also the inside have strength plate make it more stronger.
9. If necessary, extra pipeline can be added to suit to some extra application.
10. Stick cylinder of the long boom, can use your original stick cylinder to save the cost, if you need the stick cylinder, we also can prepare for you.
11. Some parts can be consolidated using thicker plate or overlapping another plate for heavy-duty application.
12. Welding is protective-gas welding, the protective gas is 80% Argon and 20% CO2 mixed. This is golden standard for protective gas.
13. Before welding, we have use big edge milling machine mill the edge of the sheet. So the welding can go to the internal of the steel-sheet and make the structure have higher performance.
14. For all base,joint and other main structure of the long boom, we use boring machine adjust the precision after welding, to avoid the welding-stress leading to big tolerance.
15. The manufacture time about 25 days. Warranty time 9 month after installation.
16. We will also supply parts list for the long reach boom, so it's easy for Maintenance and after-sales service.

Application:

dregeing river ,digging subway ,sea prot , depth digging coustruction demolition builuding and so on

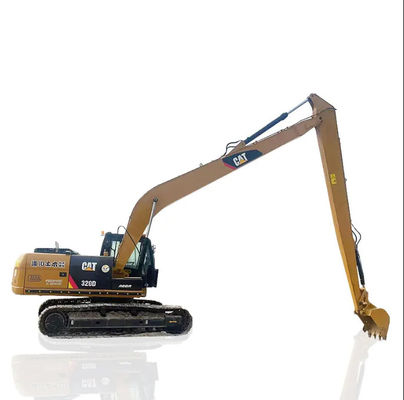

Excavator long reach boom arm specifications

Our (arm) boom are used for desilting rivers and excavating for port construction, railway (subway) construction and groundwork construction with extensive operation scope, high efficiency and high security.
The materials can be Q345B(SGC490), Europe hardox and Weldox, NM and so on, you can choose it according to your request. We made it with top welding and quality, very durable with competitive price. Original excavator performance, improves operation scope.


32m Super Long Reach Excavator Booms For EX1200 0

Features:



1. Applicable for all the make and model of excavator.



2. Standard supply include:bucket,linkage,bucket cylinder, 4oil pipe/hose,6pins,lubricating system



3. Many different material such as Q345B,Q690D,Weldox are optional to suit to your application.



4. Big boom can be two jointed pcs to make it fittable into container to save shipping cost.



5. All the seam are 45 degree tapered before welding.



Certificate and Documents:



1. CE and ISO certificate are available.

2. Brochure in PDF format is available.





Packing and shipping:



1. We pack it by film at first, then secure it inside the container by fixing to the container wall through steel wire.

2. One container can load 3 complete sets(we use rack to hold the upper sets).

3. Production leadtime is 15 days for 1 set, 20 days for 3 sets.



Common Models:



Model PC120 PC200 PC220 PC300 PC360 PC400 PC450

Total length

(mm)

13000 15380 15380 18000 20000 22000 24000

Weight

(kg)

3000 4000 4200 5200 6000 6500 7000

Max dig depth

(mm)

9000 11340 11370 13000 15000 16500 18000

Max extensive

Scope (mm)

12500 15100 15100 17600 19600 21600 23600

Max dig height

(mm)

11300 12510 12610 13720 14920 16100 17300

Folding height

(mm)

2900 2980 3040 3210 3210 3400 3400

Bucket volume

(m3)

0.3 0.4 0.4 0.4 0.5 0.6 0.6

Excavator

Tonnage(ton)

12 20 22 30 35 40

45
