Here are some advantages of long arm excavator
|
Product Details:
|
| Warranty: | 180 Days | Color: | All Color Are Optional |
|---|---|---|---|
| Part Name: | Long Reach Arm | Application: | Long Reach Project |
| Type: | For All Excavator | Material: | Q345B |
| After-sales Service Provided: | 180 Days | Maximum Length: | 18 |
| Weight: | 2820 | Certification: | CE |
| Bucket Capacity(m3): | Customized | ||
| High Light: | 16M Excavator Long Arm,18M Excavator Long Arm,CAT320 Long Reach Arm |
||

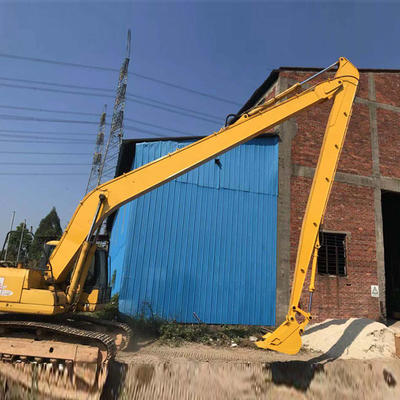

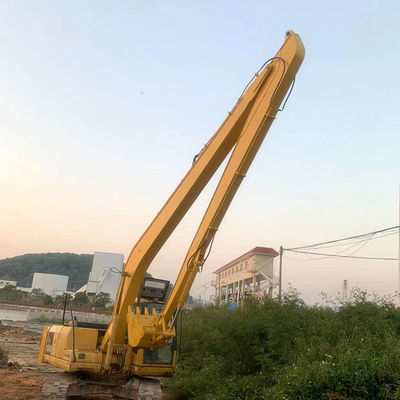

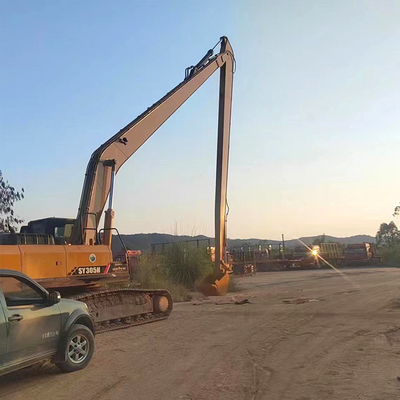

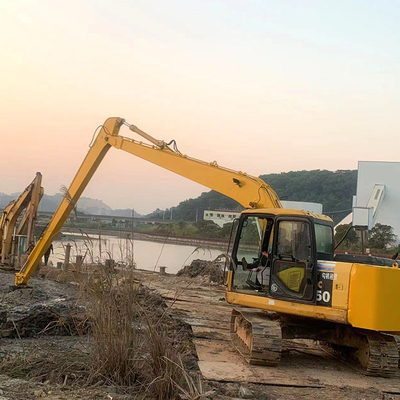

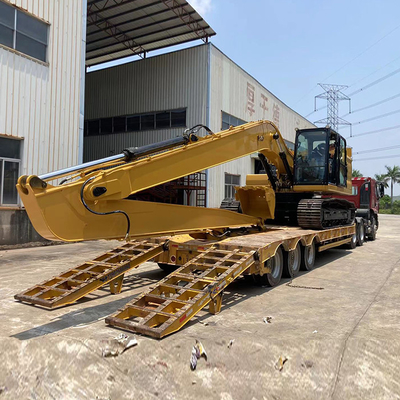

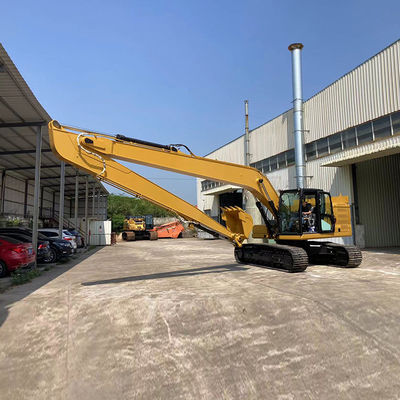

Philippine long boom excavator high quality excavator long reach boom arm customized CAT320D 18Meters
Advantages of excavator long arm factory
1. Suitable for all brands of excavators.
2. Color, length, and material can be made according to you.
3. Additional piping can be added to accommodate some additional applications.
4. Boom cylinders and stick cylinders can also be provided according to customer needs.
| Excavator Ton | Total Length(mm) | (A)Boom(mm) | (B)Arm(mm) | Maximum Digging Radius(mm) | Maximum Digging Depth(mm) | Maximum Unloading Height(mm) | Maximum Digging Height(mm) | Bucket Volume(cbm) | Cylinder(ton) |
| 11-15T | 13000 | 7250 | 5750 | 11200 | 9000 | 7550 | 9350 | 0.15-0.3 | 12T |
| 20-25T | 15400 | 8220 | 7180 | 14500 | 11300 | 10400 | 12600 | 0.4-0.6 | 12T |
| 20-30T | 18000 | 10000 | 8000 | 17300 | 13000 | 17200 | 14000 | 0.4-0.7 | 12T |
| 35-40T | 20000 | 11000 | 9000 | 19200 | 14900 | 12900 | 15200 | 0.6-1.2 | 12T |
| 40-45T | 22000 | 12000 | 10000 | 21300 | 16000 | 14000 | 17000 | 0.5-1 | 20T |
| 40-50T | 24000 | 13000 | 11000 | 23000 | 17900 | 15200 | 18100 | 0.5-1.1 | 20T |
Here are some advantages of long arm excavator
| name | main material | warranty(day) |
| Boom | Q355B | 360 |
| Arm | Q355B | 360 |
| Bucket | Q355B | 90 |
| Bucket cylinder | - | 180 |
| Linkage assenbly | Q355B | 180 |
1. Material: The big and small arms are made of Shaogang q355b, the iron pipe on the arm is a national standard cold-drawn seamless pipe, the pin shaft is 40Cr, the high-pressure rubber hose is a 4-layer joint steel ring, and the oil pipe is a single-layer hose, which is inserted into the boom The casing at the bottom is a graphite alloy copper sleeve.

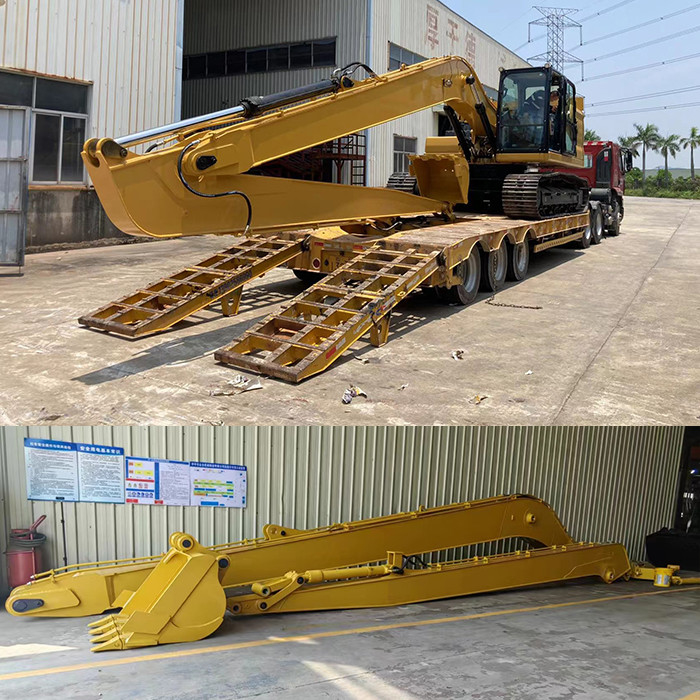

2. Configuration: one set of big and small arms, six pins, four high-pressure oil pipes, three oil pipes, one set of connecting rod assembly, one bucket cylinder, and one bucket.
3. Product advantages: plasma cutting, machine milling, robot welding, boring after welding, assembly line production operations, better quality assurance. It can be customized according to working conditions to meet the construction needs of different users. The opening angle of the big and small arms can reach 163 degrees, and the digging radius and digging height are larger.

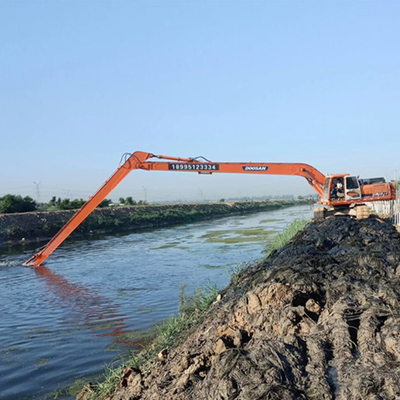

4. Applicable working conditions of the extended arm: municipal engineering, subway construction, river dredging, reservoir dredging and other water conservancy projects.
Excavator long reach fronts introduction
As for the elongated arm excavator, I believe that many friends in the mechanical industry are familiar with it. Municipal construction, improvement of subway traffic, sewage reconstruction, river cleaning and so on require a large number of construction machinery and equipment, and the standard work of mining machinery engineering should not be completed. Therefore, the elongated arm excavator uses super-long arm and super-long arm. It shows that they can play an important role in dredging, revetment and slope, while subway construction is restricted by the ground environment conditions.
