Product Details:
|
| Type: | Excavator Sliding Boom Arm | Condition: | Total New |
|---|---|---|---|
| Warranty: | 0-6 Months | After-sales Service: | Fast Response Online |
| Maximum Length: | 12 Meters | Bucket Capacity: | 0.5 CBM 0.7 CBM |
| Material: | Q355B With High Strength | Application: | Clawer Excavator |
| High Light: | Patented Excavator Sliding Arm,30 Ton Excavator Sliding Arm,Q355B Excavator Boom |
||
Click here to check out the catalog:Zhonghe Machinery Catalog-Contact Sales Manager Aria Directly

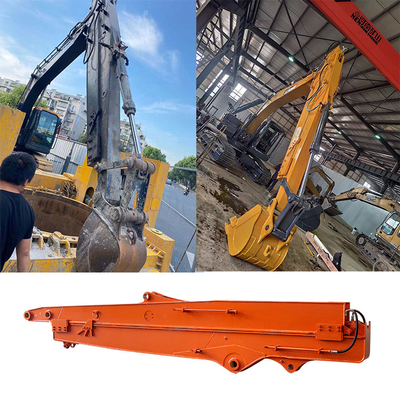

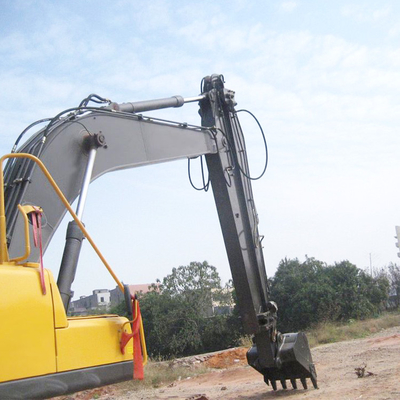

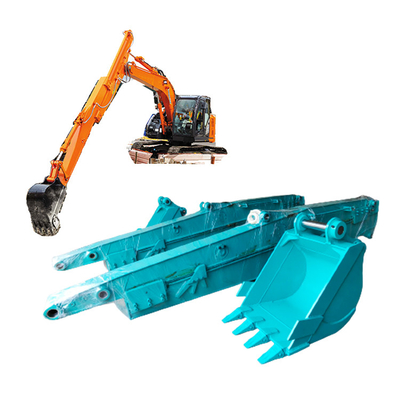

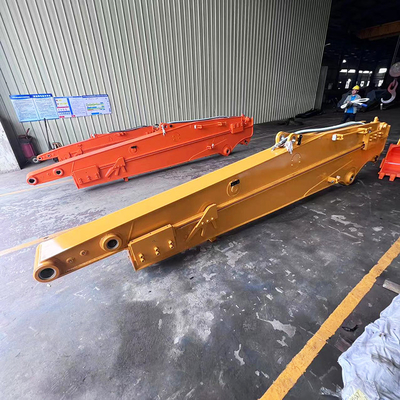

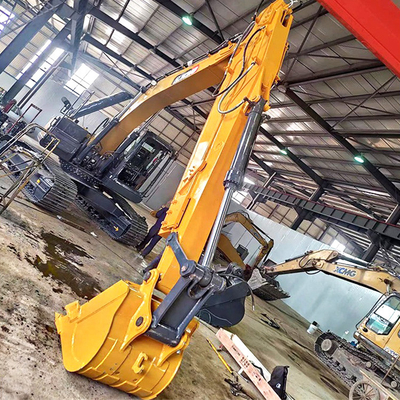

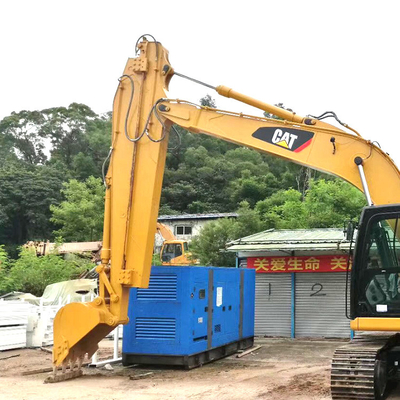

A sliding arm, also known as a telescopic arm or extendable arm, is a type of hydraulic arm that is attached to an excavator. It is designed to increase the reach and versatility of the excavator by allowing the arm to extend and retract. The sliding arm is mounted on the end of the excavator's boom and consists of a hydraulic cylinder that can be extended and retracted to adjust the length of the arm.
The upper part of the excavator sliding arm has a cylinder assembly and a piston rod. The cylinder assembly is mounted to the fixed body, and the piston rod is connected to the movable sliding body. When the cylinder assembly is pressurized, the piston rod extends, pushing the movable sliding body away from the fixed body.
The lower part of the excavator sliding arm consists of a box frame, a base plate, and a rail. The box frame is fixed to the base plate, and the rail is mounted to the box frame. The movable sliding body is mounted with a pair of rollers that run along the rail, allowing it to slide along the rail and move in different directions.
1. High Strength: The sliding arm of the excavator is made of high-strength steel, which can withstand the high stress generated by the excavator during operation.
2. Durability: The sliding arm of the excavator is designed to be durable, which ensures that it can be used for a long time without any problems.
3. Smooth Operation: The excavator sliding arm is designed to provide smooth and precise operation, which allows for efficient operation of the excavator.
4. Easy Maintenance: The sliding arm of the excavator is designed to be easy to maintain, which allows for regular inspection and maintenance of the arm.
5. Reliability: The excavator sliding arm is designed for reliable operation, which ensures that it will be able to perform its duties as expected.
| Excavator Ton | (A)Maximum working Length of arm | (B)Maximum digging height | (C)Maximum digging radius(mm) | Bucket Volume(cbm) | Counter Weight(Ton) |
| 12-15T | 5700 | 8000 | 10400 | 0.2-0.3 | |
| 20-25T | 9150 | 10100 | 13000 | 0.4-0.7 | |
| 20-25T | 11000 | 12300 | 15200 | 0.4-0.7 | 1-2T |
| 30-35T | 11000 | 12000 | 15800 | 0.6-0.9 | |
| 40-45T | 12100 | 16000 | 19200 | 0.8-1.3 |

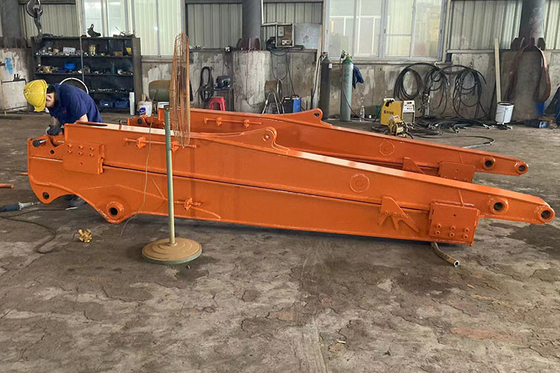

1. 14000㎡ Workshop with Precision Equipments
2. High-tech R&D Team
3. Experienced Workers
4. Customization
5. Prompt Lead Time (7-15 days)
6. Excellent Service
Please tell us your excavator model number and the digging length, so that we can give you a suggestion as soon as possible.
CE certification & Utility model patent certificates
