Product Details:
|
| Application: | Excavator | Material: | Q355B+NM400 |
|---|---|---|---|
| Condition: | Robust, New | Custom Made: | Width, Color, Teeth |
| Warranty: | 90 Days(3 Months) | After-sales Service: | Online Support |
| High Light: | Heavy Duty Excavator Rake Bucket,Tilting Excavator Rake Bucket,Excavator Sieve Rake Bucket |
||
Catalogue ZH excavator boom arm.pdf

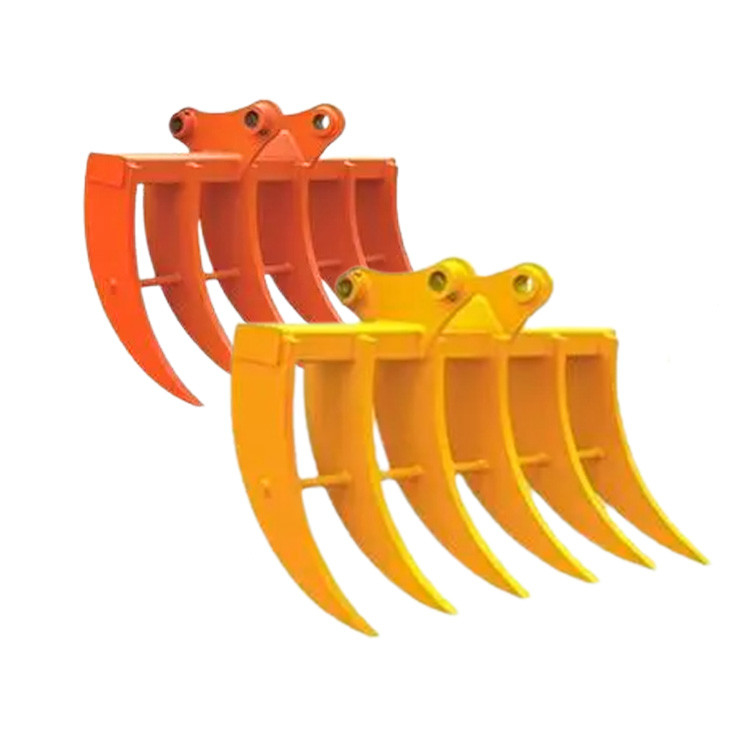

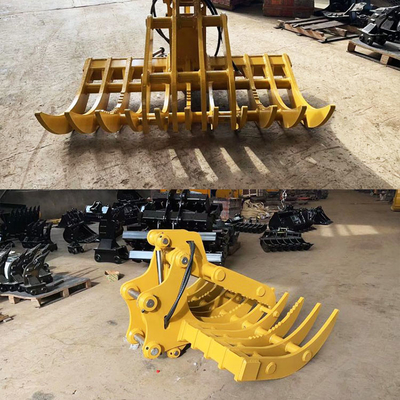

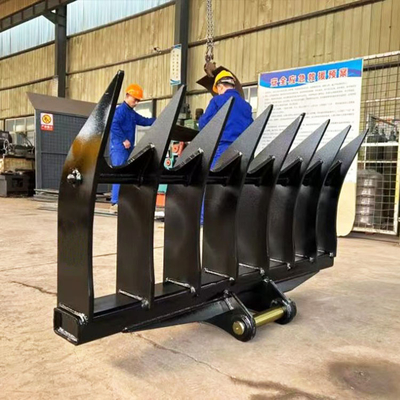

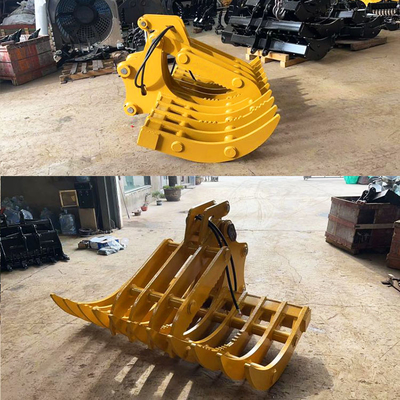

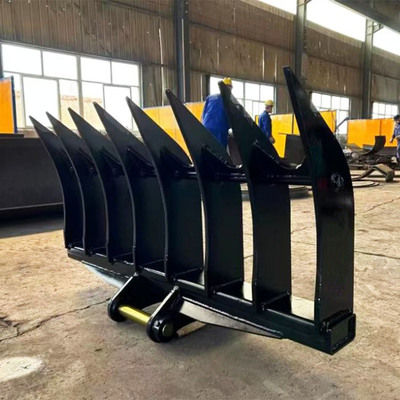

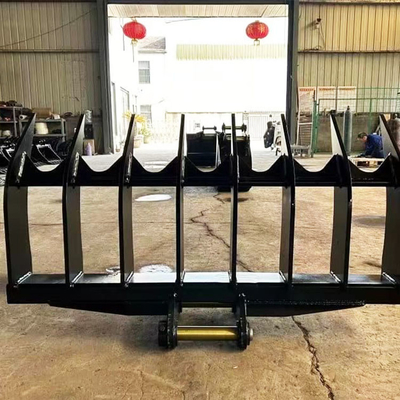

A excavator root rake is a tool that is attached to the boom of an excavator. It is used to remove roots and other debris from the ground. It is typically used for clearing land for construction or landscaping projects.
| Volunm(cbm) | excavator model(ton) | weight(kg) |
| 1 | 20T | 1270 |
| 1.1 | 20-22T | 1200 |
| 1.2 | 22-24T | 1300 |
| 1.3 | 24-27T | 1400 |
| 1.5 | 28-30T | 1600 |
| 1.6 | 30-35T | 1700 |
| 1.8 | 36-38T | 1900 |
| 2 | 40-45T | 2100 |
| 2.2 | 40-45T | 2400 |
| 2.5 | 50-55T | 2700 |
1. Designed to dig up, level and redistribute soil, gravel, and other materials.

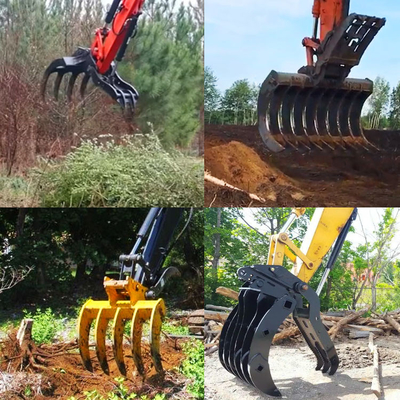

2. Can be used to rake roots and debris from soil.
3. Can be used to grade and level land.
4. Can be used to clear away brush, rocks, and other obstructions.
1. Improved soil drainage: The excavator root rake allows for improved drainage of soil by removing debris and compacted soil.
2. Less manual labor: Instead of manually removing debris and compacted soil, an excavator root rake makes the job easier and faster.
3. Improved air quality: The removal of debris and compacted soil improves air quality when working in tight spaces or around trees and plants.
1. Standard bucket
Q355B material, standard plate thickness, and China high-quality bucket tooth base. It is mainly applicable to light operation occasions such as excavation of general clay and loading of sand, soil and gravel.
Q355B material, NM400 optional. On the basis of the standard bucket, reinforcing plates are added at the bottom, and the tooth plate and side plate are thickened. It is mainly applicable to heavy and light industrial occasions such as excavation of hard soil and loading of soil, gravel and gravel mixed with soft sand.
3. Heavy duty rock bucket:
Q355B+Hardox500. On the basis of the reinforced bucket, the bottom plate and side plates are thickened. It is mainly applicable to the excavation of hard rocks, secondary hard rocks and wind fossils mixed in the soil; Loading of hard rock and ore after blasting.
5. Tilt bucket for mini excavator
6. Clamshell excavator bucket
8. Excavator Ripper
1. 14000㎡ Workshop with Precision Equipments
2. High-tech R&D Team
3. Experienced Workers

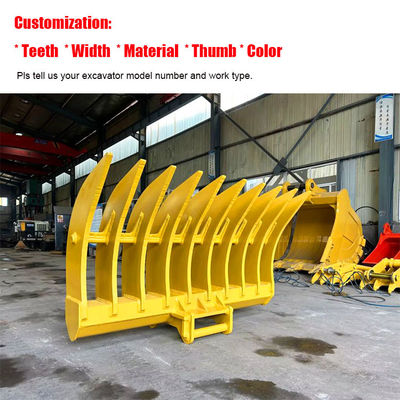

4. Customization
5. Prompt Lead Time (7-15 days)
6. Excellent Service
1. Long reach excavator boom
2. Excavator telescopic boom
3. Demolition boom
4. Excavator rock bucket
5. Excavator tilting bucket
6. Hydraulic grabs for excavators
CE certification & Utility model patent certificates
